315 Ton Four Column Hydraulic Press Machine For Manhole Cover
Product Description
The main performance characteristics: 200 ton Four Column Deep drawing Hydraulic press for stainless steel, Economical and Practical, Hydraulic control adopts to insert set valve intergrated system,decrease let out point. Movement reliability, durable and long life span.It is constant pressure to realize with calm in the first place and calm producedure two develop technology, have to insure press the function of delay time, The route of working pressure may be regulated in assigned scope, adopt buttons for centralized control. Can realization manual, Semi-automatic, automatic 3 operate form.
Application:

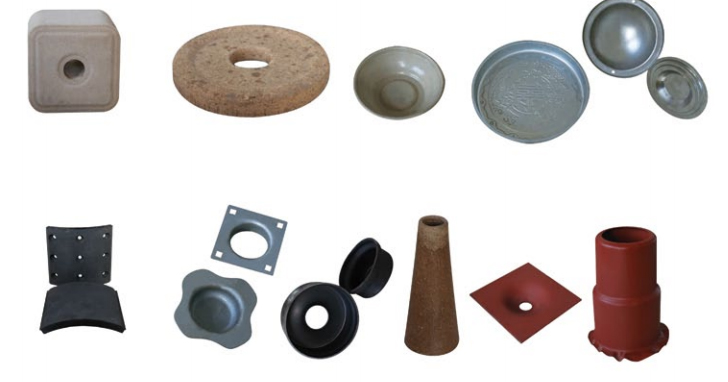

Hydraulic Press Machine 315 Ton With Hydraulic Cushion For Stretching, such as stamping, bending, flanging sheet stretching, and can be engaged in correction, press fit, plastic products, powder products, compression molding.
| Specification | 200T-A | 200T-AK | 200T-B | 200T-BK | 200T-C | 200T-CK | |
| Nominal force | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | |
| Ejecting force | 35 | 35 | 50 | 50 | 50 | 50 | |
| Max. pressure of liquid | 25 | 25 | 25 | 25 | 25 | 25 | |
| Stroke of slider | 400 | 600 | 400 | 600 | 400 | 600 | |
| Max. opening height | 800 | 1000 | 800 | 1000 | 800 | 1000 | |
| Working table size | 660x660 | 660x660 | 800x800 | 800x800 | 1000x1000 | 1000x1000 | |
| Ejecting stroke | 250 | 250 | 250 | 250 | 250 | 250 | |
| Speed of slider | Idle speed | 30 | 100 | 30 | 100 | 30 | 100 |
| Working speed | 8-12 | 6-12 | 8-12 | 6-12 | 8-12 | 6-12 | |
| Return speed | 20 | 100 | 20 | 100 | 20 | 100 | |
| Motor power | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | |
Detailed Images

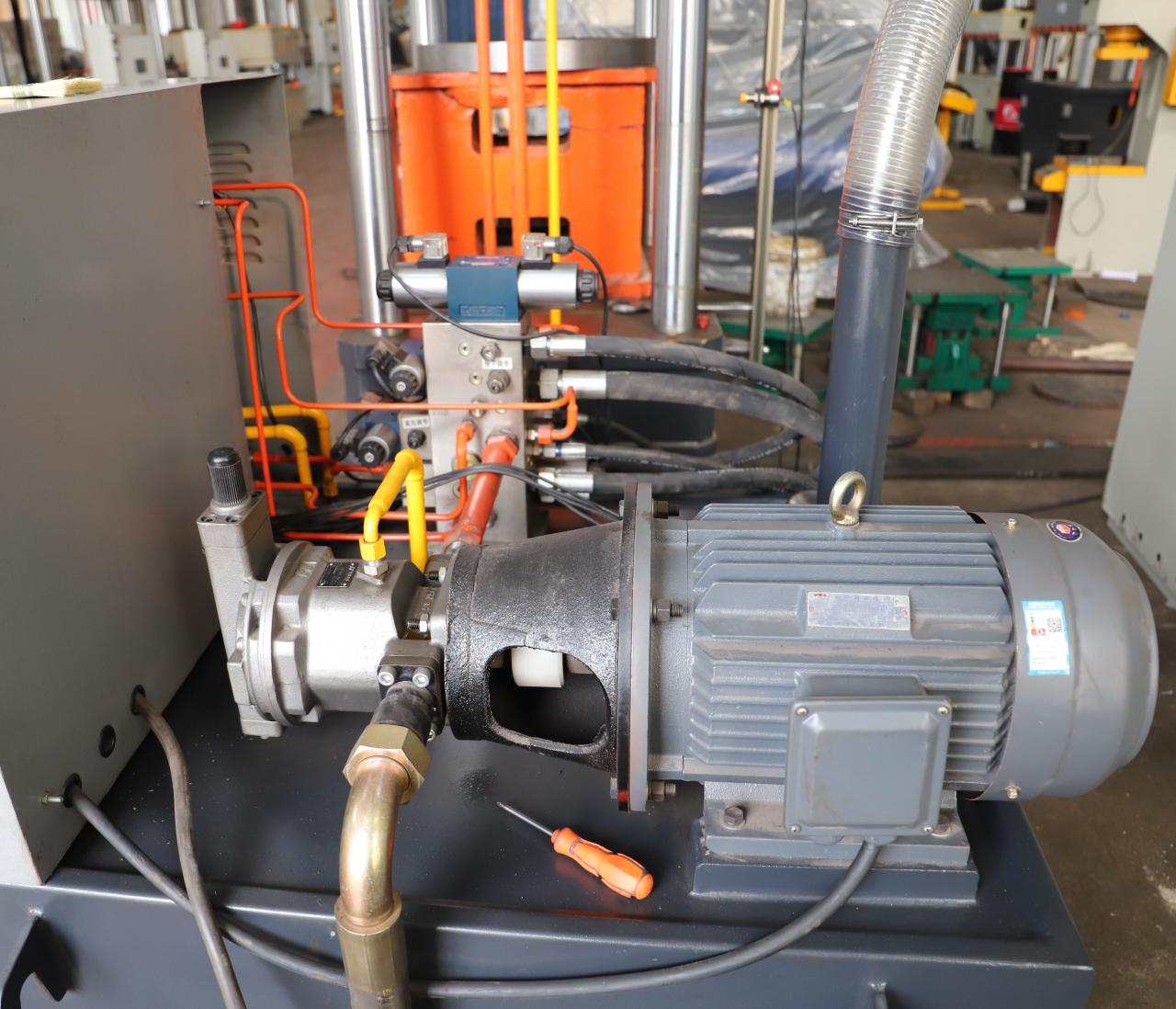

OIL PRESSURE PUMP
Compared with the plug-in oil pump, the horizontal positioning of the oil pump can reduce the heat generation, the oil temperature rises slowly, and the machine life is extended.

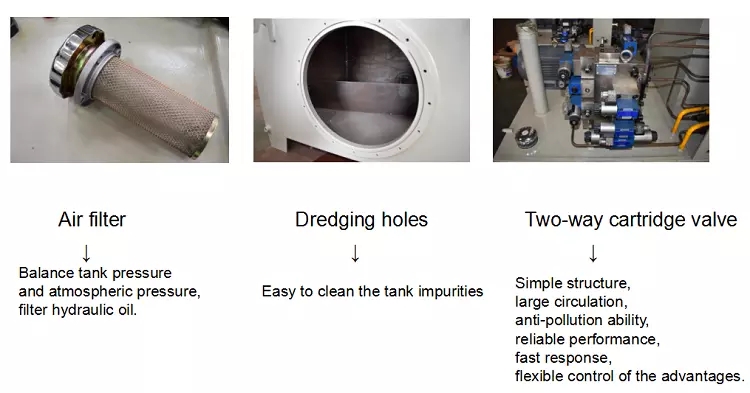

HYDRAULIC TANK
Shot blasting combines three new processes of high-pressure vacuuming dough clearance.After the equipment is commissioned, the fuel tank is openedagain, and the hydraulic oil flows into the main tank through the high pressure, and the components of each part are cleaned twice.

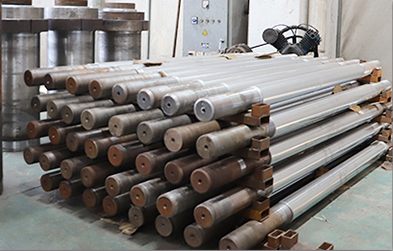

COLUMN GUIDE SLEEVE
The column material is 45#steel, the surface is hard chrome-plated, the slider relies on four columns forvertical movement, and the four-column guide sleeve is the boundary oil-free lubrication bearing, which improves the friction mechanism, reduces the frictional resistance, and avoids the column scratches and strains.

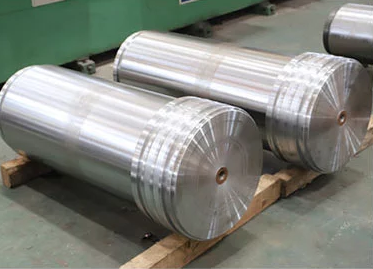

PISTON ROD
Piston rod surface hardness to 55℃ effective solution to seal ring injury, not easy to scratch

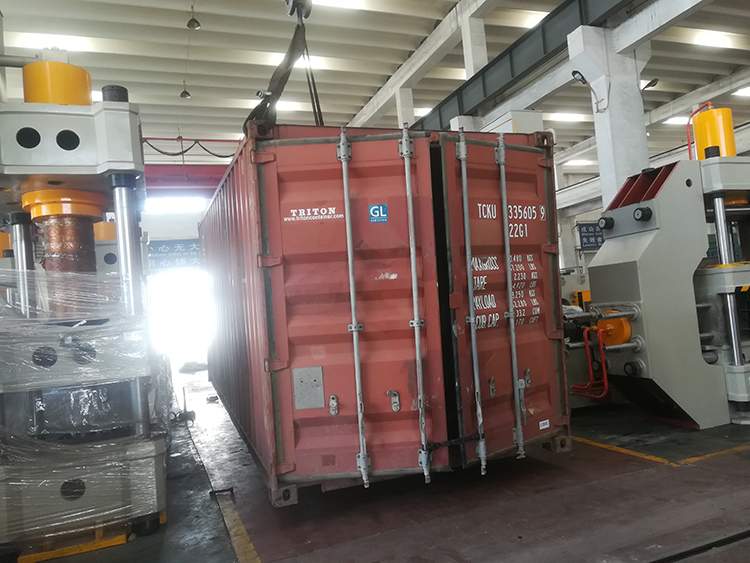

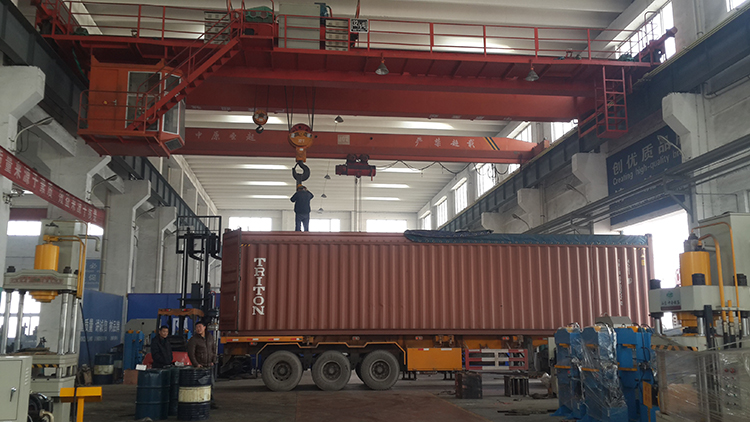

Packing&Shipping
1. The four column metal stamping press machine surface with anti-rust treatment,
2. The four column metal stamping press machine inner layer of plastic waterproof packaging,
3. The four column metal stamping press machine outer layer of thick wood or steel frame fixed, And then use a synthetic board package.

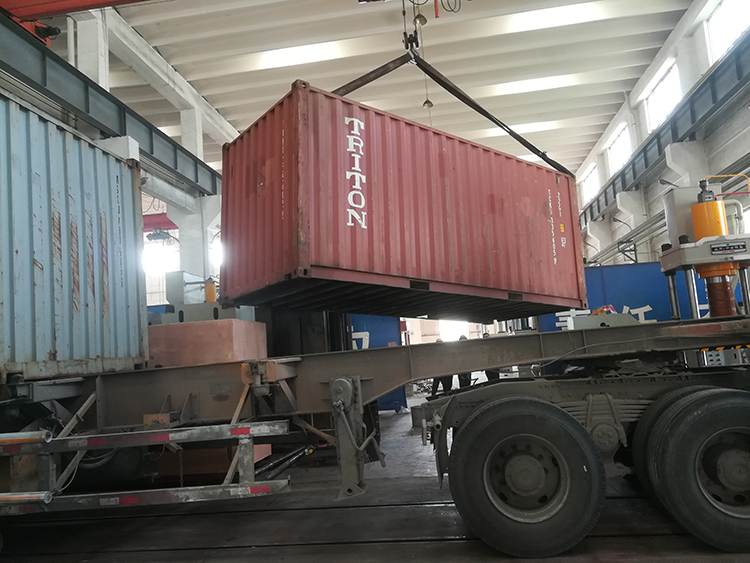

Combined container transport, or separate container transport.
FAQ
Q: How about your machine quality?We are worry about the quality.
A: RAYMAX is a mature brand in China. through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or mor strict standard.Our machines distribute worldwide to about 20 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.
Q: Why Choose your company?
A: We can provide customized services according to customer requirements. We also have professional R &D team and fast response sales team. Strictly control each step of QA &QC system processes. We have an after sale service team than can quickly solve any problem you may have in the use.
Q: How to select your machine?
A: you can tell me your specifications ,we can choose the best model for you . we also have some regular model for you to choose.You can also provide the drawings, size , photos of the products, we can design the suitable machine for you according to your requirements. After the machine is finished, you can also provide samples and we will test it for you.
Details
- Machine Type: Four-column Three-beam Hydraulic Press
- Return Force (kN): 3150 kN
- System: Normal
- Condition: New
- Voltage: 380V/220V/Optional
- Dimension(L*W*H): Customized Size
- Weight (T): 12 T
- Motor Power (kw): 22 kw
- Key Selling Points: Multifunctional
- Warranty: 1 Year
- Applicable Industries: Farms, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Restaurant, Home Use, Energy & Mining, Construction works
- Showroom Location: None
- Marketing Type: Ordinary Product
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Bearing, Motor, Pump, Pressure vessel
- Power Source: Hydraulic
- Product name: three beam four column hydraulic press 300 / 315 ton
- Keyword: hydraulic press
- Aftersaleservice: Engineers available to service overseas
- Type: Four Columns
- Material: 45# Steel Material
- Model: YQ32-315 ton
- Color: Customized
- Controlsystem: PLC
- Certification: CE
