Product Description
The main advantage of the hot forging hydraulic press is that the material enters at a slower pace inside the die and thus fills it in a more complete and accurated manner; in this way the following machining works are minimised. Furthermore hydraulic presses, when compared to power hammers, can complete the whole job in one cycle (when having a constant force independent from the moving table position), thus allowing an increased production rate. For the hot upsetting process RAYMAX has developed a type of press that can be used with multiple intermediate forging, allowing the progressive roughing of pre-heated billets, significantly cost- and time- saving. In the field of upsetting, requirements depend on the product and on the sector. The process takes place with high temperature material (e.g. up to 1150 ° C for steel). The high temperature is necessary to avoid the work hardening of the metal during deformation. This process is always preliminary to further (polishing, coating, finishing) that will define the final product.

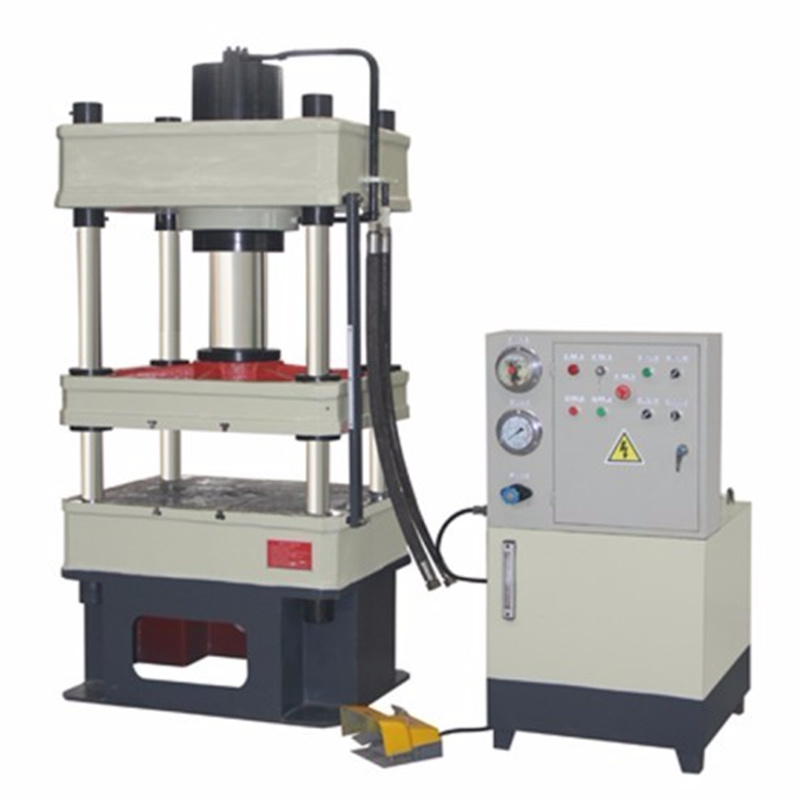

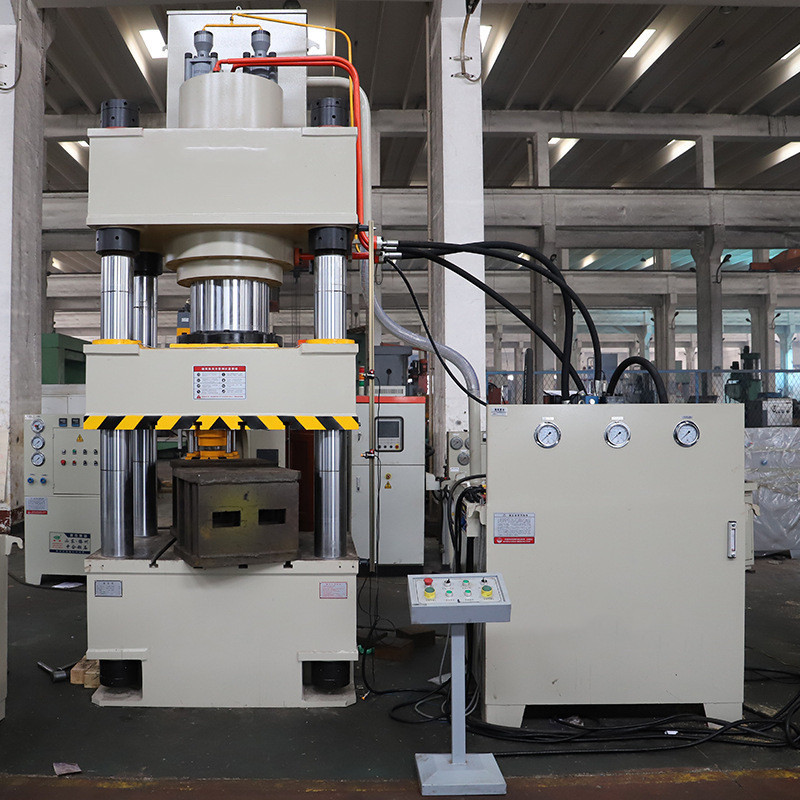

This hydraulic press is a four column /4 beams with 600 ton force. RAYMAX is an Chinese manufacturing company that has been producing deep-drawing hydraulic presses for 65 years. Do not hesitate to contact us for a quotation!
Specification
Machine Type | Four-column Four-beam Hydraulic Press |
Ejector Force (kN) | 50 |
Return Force (kN) | 500kN |
System | Normal |
Condition | New |
Place of Origin | China |
Brand Name | RAYMAX |
Voltage | 400/50 |
Dimension(L*W*H) | 3100*1700*5300 |
Certification | CE |
Weight (T) | 60T |
Model Number | G4 3 effects |
Motor Power (kw) | 290kw |
Key Selling Points | High Rigidity |
Warranty | 2 years |
Field installation, commissioning and training, Online support, Video technical support | |
After Warranty Service | Video technical support, Online support, Spare parts |
Applicable Industries | Manufacturing Plant |
Local Service Location | Italy, United Kingdom, Canada, Germany, Spain, France |
Showroom Location | Italy |
Marketing Type | Ordinary Product |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Motor, Pump, PLC, moving table, moving table with sliding tools, upper ejector, lower ejector, heat-exchanger, electrical cabinet, cylinders, balcony, ladder |
Material | Aluminium, Carbon Steel, Stainless Steel |
Model G4 600/3 | 3 effects, working and moving table size 900x900 mm |

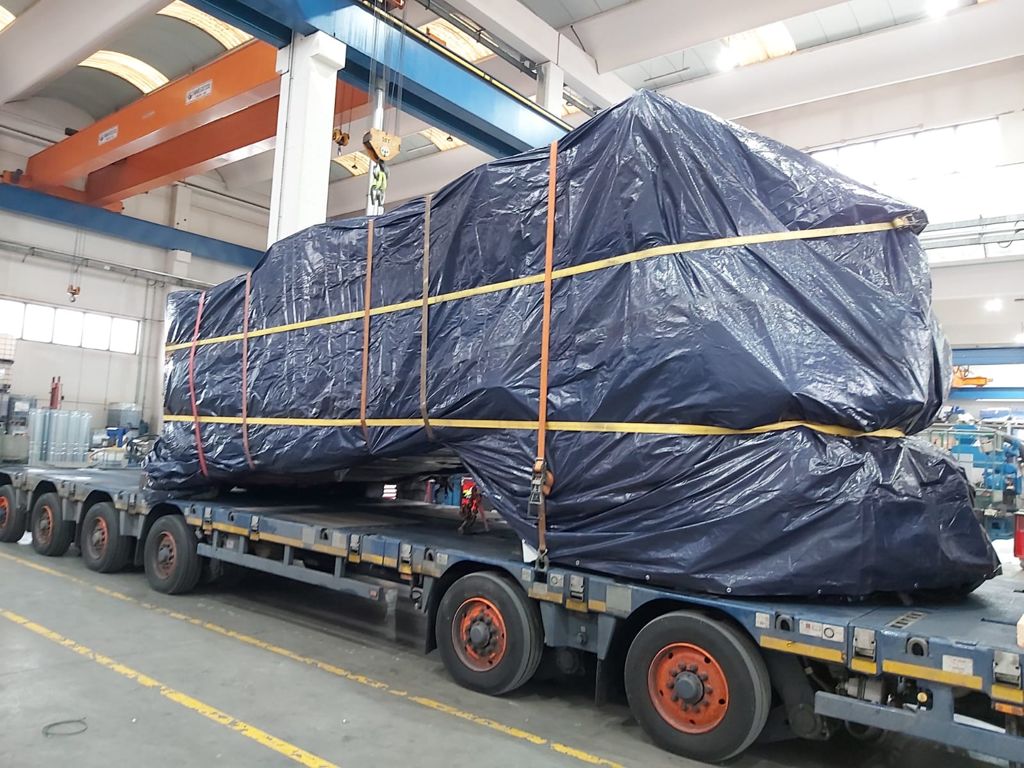

Packing & Delivery
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2. what can you buy from us?
drawing hydraulic presses, h-frame presses, c-frame presses, customized hydraulic presses, hydraulic presses for metal sheet forming
3. why should you buy from us not from other suppliers?
RAYMAX is a hystorical Italian brand that is specialised in manufacturing hydraulic presses customized to the client's productive needs. RAYMAX works with R&D partners to find the best solution to each productive technological need.
Details
- Machine Type: Four-column Four-beam Hydraulic Press
- Ejector Force (kN): 50
- Return Force (kN): 500 kN
- System: Normal
- Condition: New
- Voltage: 400/50
- Dimension(L*W*H): 3100*1700*5300
- Weight (T): 60 T
- Model Number: G4 3 effects
- Motor Power (kw): 290 kw
- Key Selling Points: High Rigidity
- Warranty: 2 years
- Applicable Industries: Manufacturing Plant
- Showroom Location: Italy
- Marketing Type: Ordinary Product
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Motor, Pump, PLC, moving table, moving table with sliding tools, upper ejector, lower ejector, heat-exchanger, electrical cabinet, cylinders, balcony, ladder
- Material: Aluminium, Carbon Steel, Stainless Steel
- Model G4 600/3: 3 effects, working and moving table size 900x900 mm
- After-sales Service Provided: Field installation, commissioning and training, Online support, Video technical support
- After Warranty Service: Video technical support, Online support, Spare parts
- Local Service Location: Italy, United Kingdom, Canada, Germany, Spain, France
- Certification: CE
