Wc67k-80t/2500 Hydraulic Press Brake Machine Metal Sheet Bending Machine

Machine Features

1. The frame is steel structure, left and right vertical plate, table and pressure plate welded into a unitary structure, after welding to eliminate internal stress by tempering, exceptional rigidity, high stability.

2. Important parts of the frame, sliders, etc. are used ANSYS finite element analysis software to ensure machine reliability.

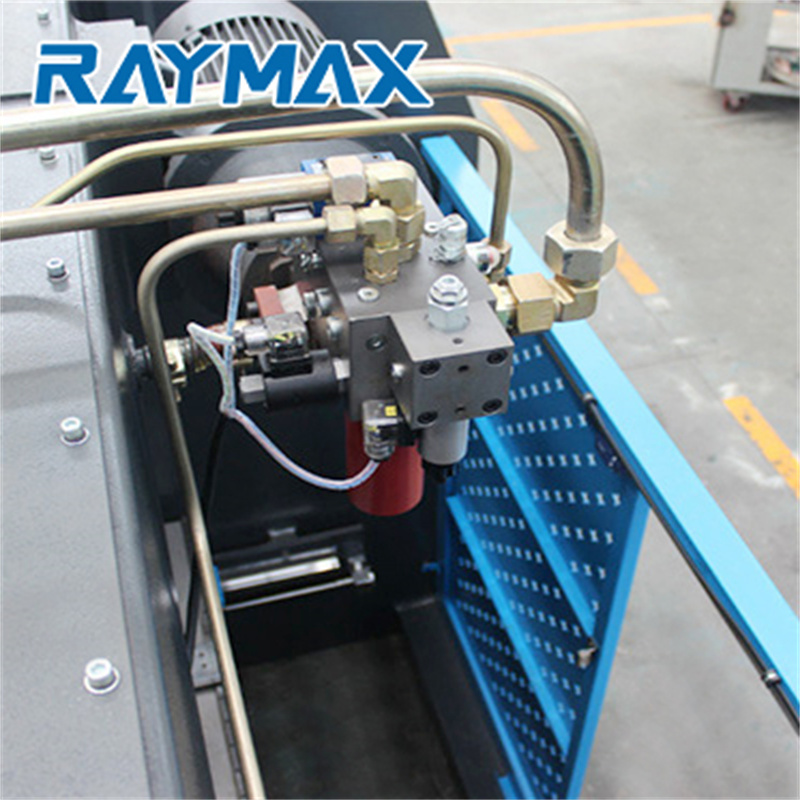

3. Hydraulic drive, cylinder on both end of machine, disposed on the slider to drive it work directly.

4. Torsion axis synchronization for slide synchronous mechanism.

5. Adopt a mechanical stopper mechanism, stable and reliable.

6. Back Gauge size and slide stroke controlled by CNC system, back gauge with high precision ball screw, stable operation and precise positioning.

7. The controller system adopts frequency conversion control technology, with multi-step programming function, simple and easy to operate.

8. Inclined wedge deflection on the compensation mechanism, in order to guarantee access to high bending accuracy

9. Safety barrier device all around the machinery, electrical cabinets equipped with Open door cut-off function, emergency stop button around front and back, protective cover foot switch to ensure safe working.

E21 controller system (Standard NCcontroller system )

1）backgauge and block control

2）control for general AC motor ,frequency inverter

3）Intelligent positioning

4）Stock counter

5）Program memory of up to 40 programs & up to 25 steps per program

6）One side positioning

7）Retract function

8）One key back /restore of programs

9）Mm/inch / Chinese /English

Machine Parameters

Details

• Slider Stroke (mm): 100 mm
• Automatic Level: Semi-automatic
• Throat Depth (mm): 250 mm
• Machine Type: Torsion Bar
• Length of Working Table (mm): 2500
• Width of Working Table (mm): 1450 mm
• Dimension: 2550*1450*2300, 2550*1450*2300 mm
• Condition: New
• Place of Origin: Anhui
• Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum
• Automation: Automatic
• Extra Services: round bending
• Year: 2020
• Weight (KG): 4300
• Motor Power (kw): 7.5 kw
• Key Selling Points: Competitive Price
• Warranty: 3 years
• Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction works , Advertising Company, Other
• Showroom Location: Uzbekistan, Australia
• Marketing Type: New Product 2020
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 1 Year
• Core Components: Motor, Pump
• model: WC67K-80T/2500
• Cutting material: aluminum sheet ,mild steel ,carbon steel,stainless steel
• Bending thickness: MS 4mm / SS 2 mm
• Bending Length: 2500 mm
• Nominal pressure: 800KN
• Poles distance: 2500mm
• Slider travel: 100 mm
• Max open: 340 mm
• Power: 7.5 KW
• Certification: CE
• After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
• After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
