Product Description
1. Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
2. Adopt integrated hydraulic system, more reliable and easy for maintenance.and the hydraulic system from Bosch-Rexroth,Germany,
3. The Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity.
4. The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21with Delta inverter.
5. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
6. Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation.

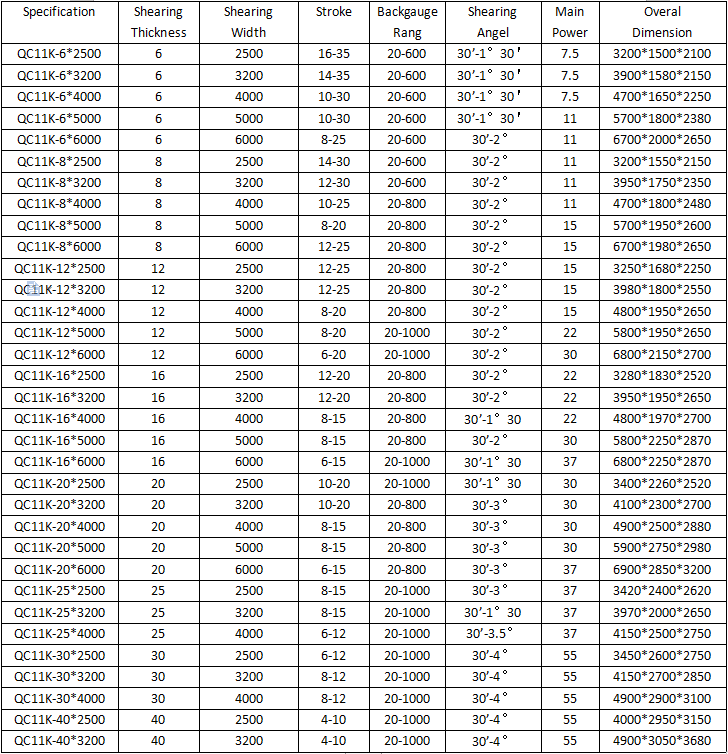

Techinical Paraments
MAIN FEATURES
●Estun E21sNC control System
●Powered Back gaugeX-axis
●DELTA Inverter controlled back gauge
●HIWIN Ball screws & Polished rod with 0,05mm accuracy.
●Squaring Arm and Front Support Arms
●Germany Bosch-Rexroth Hydraulic
●Germany EMB Tubing connector
●Germany Siemens Main Motor

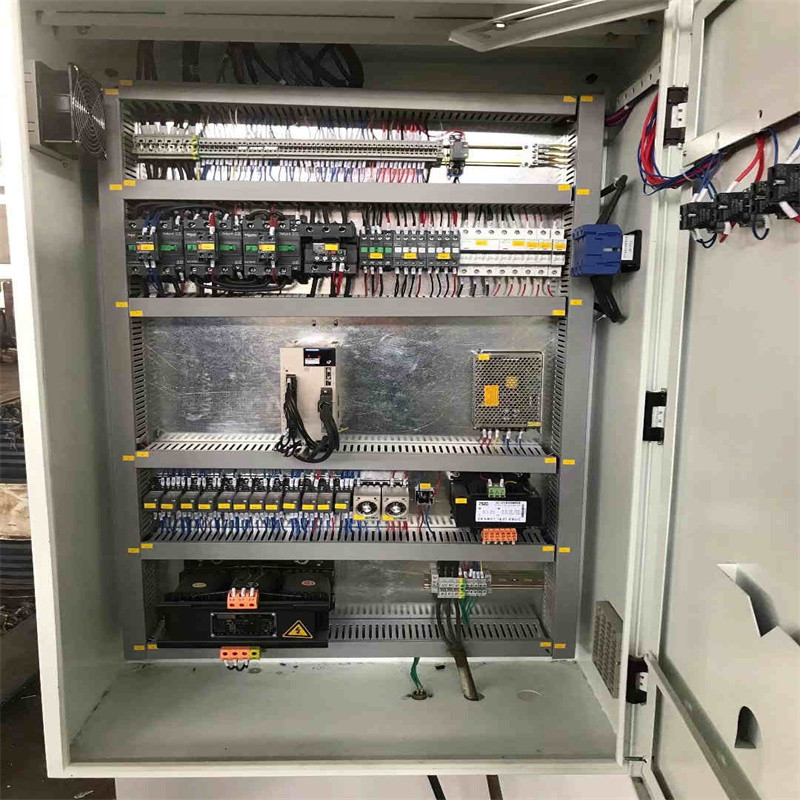

●Tele mecanique/Schneider Electrics
●Hydraulic &Electrical overload protection
●Cutting Line Illumination and wire for shadow line cutting
●Top blade with two cutting edges and bottom blade with four cutting edges. (6CrW2Si)
FAQ
Q1. Trade company or manufacturer?
A: We are manufacturer and have specialized in machine industry for many years.
Q2. How to choose the suitable machine model?
Three key words: max thickness, max length, processing material
Q3. Is it easy to operate for the new user ?
A: Every machine all is with the opreration manual, and we can also provide you with online support. Traninning and guidence is available to your country.
Q4. What should I do when the machine is in trouble?
A: Take photos and videos to us, we will provide you with the timely help.
Q5. How to trust your machine quality ?
We warmly welcome you to visit our factory in Nanjing. And we have acquired ISO and CE certification.
Q6.How to pay?
Alibaba credit protection order, T/T（30% deposit with 70% balance）
Q7. Delivery time?
15-20days after we receive your order deposit and confirm all details.
Q8. MOQ?
1 PIC
Details
- Max. Cutting Width (mm): 3200 mm
- Max. Cutting Thickness (mm): 12 mm
- Automatic Level: Fully Automatic
- Blade Length (mm): 3200 mm
- Throat Depth (mm): 200 mm
- Condition: New
- Power (kW): 11 kW
- Weight (KG): 1900 KG
- Place of Origin: Anhui, China
- Voltage: 220V
- Dimension(L*W*H): 3040*1550*1550mm
- Warranty: 2 years
- Key Selling Points: High Safety Level
- Applicable Industries: Manufacturing Plant, Home Use, Food & Beverage Shops
- Showroom Location: None
- Marketing Type: New Product 2020
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 5 years
- Core Components: Motor, Gear
- Title: Metal Plate Cutting Hydraulic Guillotine Shearing Machine
- Product name: swing beam shearing machine
- Control system: E21S
- Size: 3040*1550*1550mm
- Power: 15kw
- Color: can be customized
- Certification: CE,ISO
