Fiber Laser Cutting Machine With Temper Glass Cutting Laser Machine

Product model: dw4015-1000w
Processing width: 4 * 1.5m
Maximum idle speed: 60m / min
Cutting accuracy: _ 0.05mm
Repeat positioning accuracy: _ 0.05mm
Minimum line width: _ 0.05mm 1000w
The output power is 1064nm
Output power: 380V / 50Hz / 100A or 200V

Cooling system chiller

Note: the equipment can be customized according to customers' requirements

Laser tube sheet integrated machine

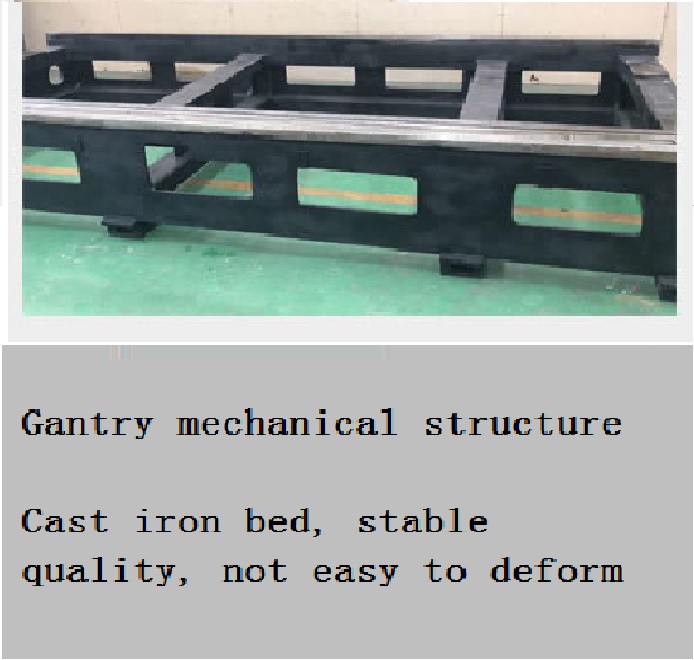

Gantry mechanical structure

Cast iron bed, stable quality, not easy to deform

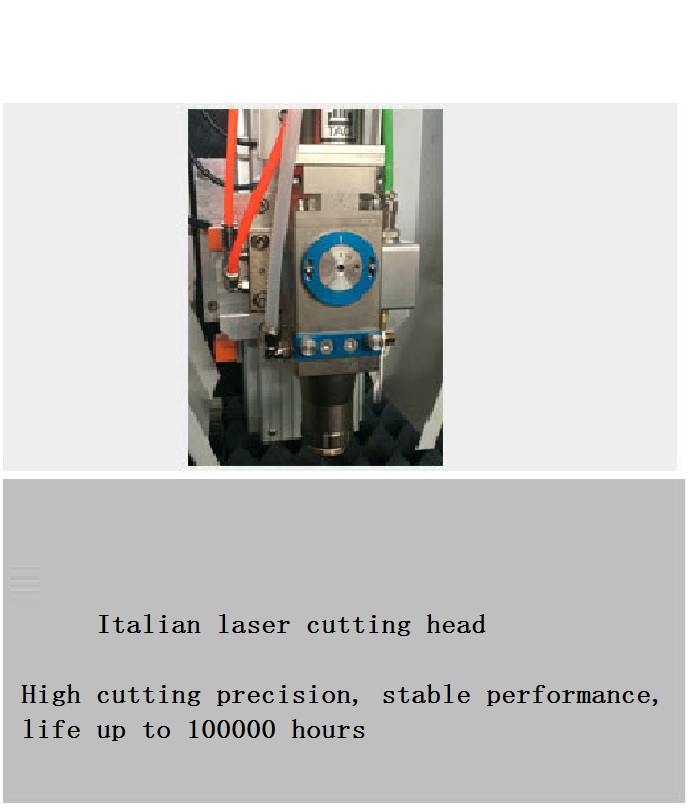

Italian laser cutting head

High cutting precision, stable performance, life up to 100000 hours

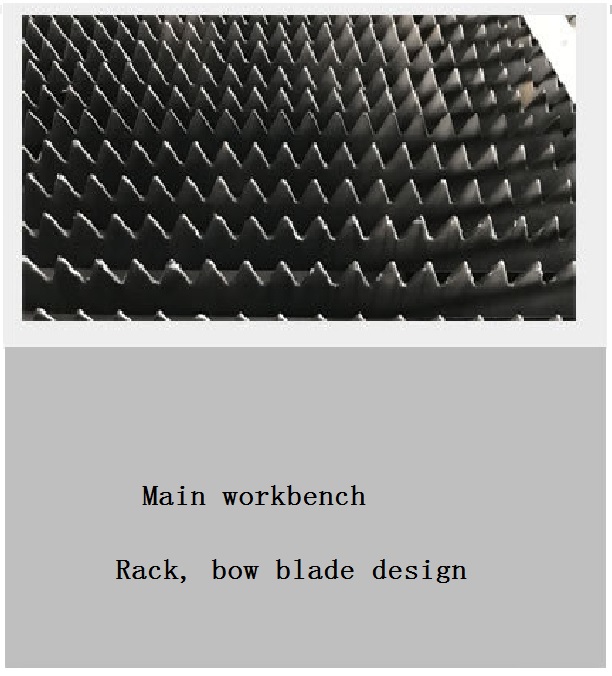

Main workbench

Rack, bow blade design

Ruike laser generator

Good quality, stable optical fiber emission, service life up to 100000 hours, good cutting effect

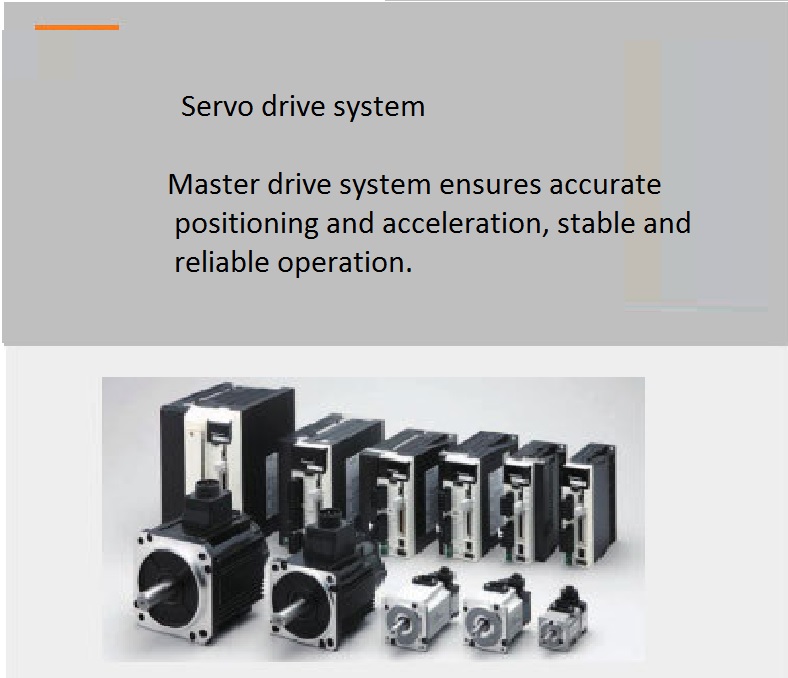

Servo drive system

Master drive system ensures accurate positioning and acceleration, stable and reliable operation.

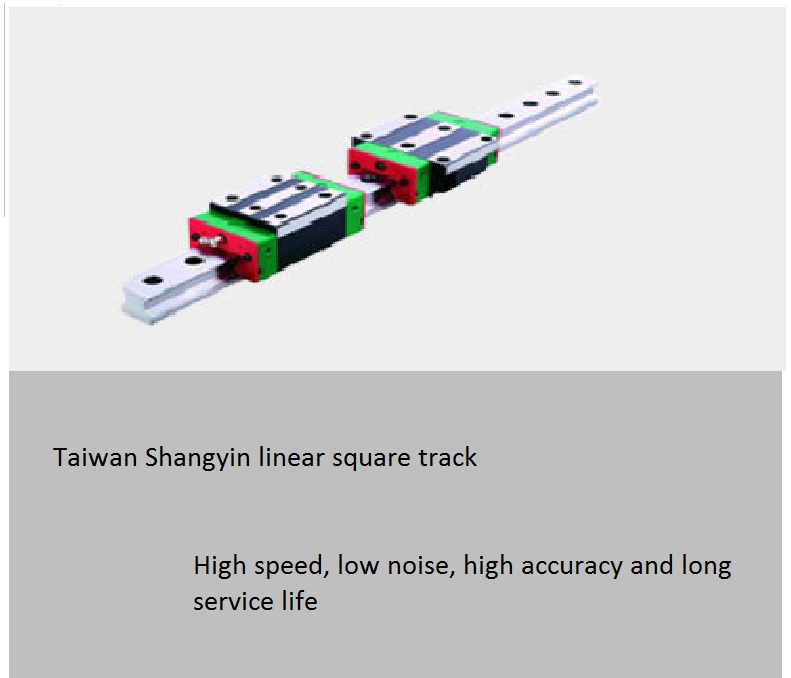

Taiwan Shangyin linear square track

High speed, low noise, high accuracy and long service life

Ruike fiber laser has the characteristics of high power, ideal beam quality, maintenance free and high electro-optic conversion efficiency

Hanli high performance cooling system is used to cool the lens in the laser cutting head, with good cooling effect, low noise, high head, large flow, long service life and small volume. The operating system of Shanghai Jiaotong University has excellent performance, automatic optimization, support for common editing and typesetting function, expand capability, support for wireless handheld box and remote control of the system

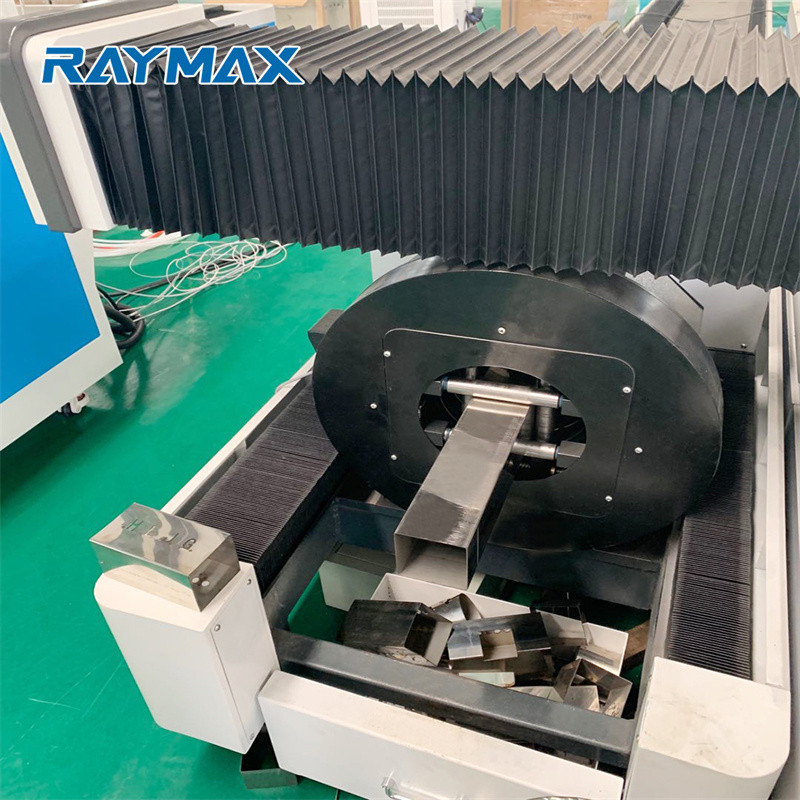

Auxiliary table of pipe cutting device

Automatic feeding, high precision automatic chuck, precision rack drive feeding, imported servo motor control, round tube, square tube, triangle tube, special tube automatic cutting

Performance characteristics;

1. Advanced laser, high electro-optic efficiency, water and electricity saving, especially long-term maintenance free use, can save a lot of maintenance funds and time, improve work efficiency.

2. The whole main frame adopts gantry structure worktable, high damping bed, good rigidity, high precision and stable operation.

3. The frame structure is made of high-quality steel plate by honeycomb welding. The machine tool is annealed, re aged and reprecision processed by large gantry milling machine. These designs and processes ensure that the machine tool has excellent earthquake resistance, high rigidity and stability. It fully meets the stability requirements of the machine tool in high-speed motion.

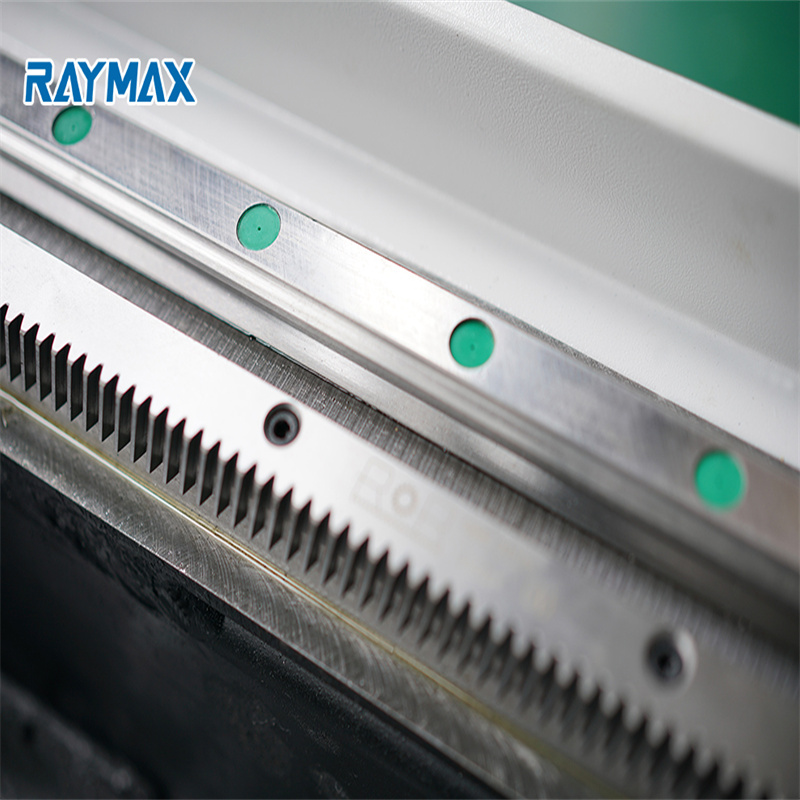

4. The original imported rack and pinion drive and the original imported linear guide are adopted, and the original imported dual drive servo motor drive system is adopted, which effectively ensures the speed and accuracy of laser cutting.

Product Description

FAQ

1. What's your advantage?

A: Honest business with competitive price and professional service on export process.

2. How I believe you?

A : We consider honest as the life of our company, Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.

3. Can you give warranty of your products?

A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.

4. Where are you? Can I visit you?

A: Sure,welcome to you visit our factory at any time.

5. How about the delivery time?

A: Within 35-45 days after we confirm you requirement.
