Features:
⭐Adopts horizontally placed crankshaft.
⭐Stroke adjustment device mounted on crankshaft.
⭐Combined dry type pneumatic friction clutch and brake.
⭐Manual shut height adjustment with scale display.
⭐MPS-100 and above adopts lifting balance device
⭐Safety Duplex valves.
⭐Control by PLC with international brand.
High position accuarcy: most suitable for machining parts such as dies,drilling or boring
Wider range of application: drilling, boring, medium-load milling, scribing,scaling and measuring all are ok
Various sizes of table: three standard sizes and much more amounts of size just as your requirement
| J23-10 | J23-16 | J23-25 | ||
| Capacity | kN | 100 | 160 | 250 |
| Nominal Force | mm | 4 | 5 | 5 |
| Slide Stroke | mm | 60 | 55 | 80 |
| SPM | min-1 | 145 | 125 | 60 |
| Max. Die Height | mm | 130 | 160 | 180 |
| Die Height Adjustment | mm | 35 | 45 | 70 |
| Between Slide Center & Frame | mm | 130 | 160 | 210 |
| Bolster (FB×LR) | mm | 240×360 | 300×450 | 400×600 |
| Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.) | mm | Φ120×20 ×Φ100 | Φ100 | Φ120 |
| Bolster Thickness | mm | 50 | 40 | 70 |
| Bolster Opening (Dia.×FB×LR) | mm | Φ130×90×180 | Φ210×160×240 | Φ180×130 ×260 |
| Slide Area (FB×LR) | mm | 150×170 | 180×200 | 210×250 |
| Shank Hole (Dia.×Dpth) | mm | Φ30×55 | Φ40×60 | Φ40×70 |
| Max. Inclined Angle | ° | 25° | 25° | 25° |
| Between Columns | mm | 180 | 220 | 260 |
| Motor Power | kW | 1.1 | 1.5 | 2.2 |
| Outline Size (FB×LR×H) | mm | 915×700 ×1690 | 1150×900 ×1910 | 1325×990 ×2140 |
| Net Weight | kg | 600 | 1080 | 1900 |
FAQ
Q. What are your normal lead times?
A. Our company typical lead times range from 3-4weeks after receipt of order.
Q. What are the terms of payments you offer?
A. We accept payment of T/T, L/C, and Western Union, cash, O/A etc.
Q. What kind of package do you offer?
A. Normally in plywood case, to make sure all goods in good condition.
Q. What is the MOQ for your production?
A. The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.
Q. Do you have CE certification
A. Yes, we have CE certification, machine quality is one year guaranteed.
Q. How to control the quality of the products?
A. We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service.
Details
- CNC or Not: Normal, Normal
- Condition: New, New
- Machine Type: Punching Machine
- Slide Stroke (mm): 45
- Power Source: Mechanical, Mechanical
- Voltage: 380, 380V or as your requirement
- Dimension(L*W*H): 895*713*1653mm
- Motor Power (kW): 1.1

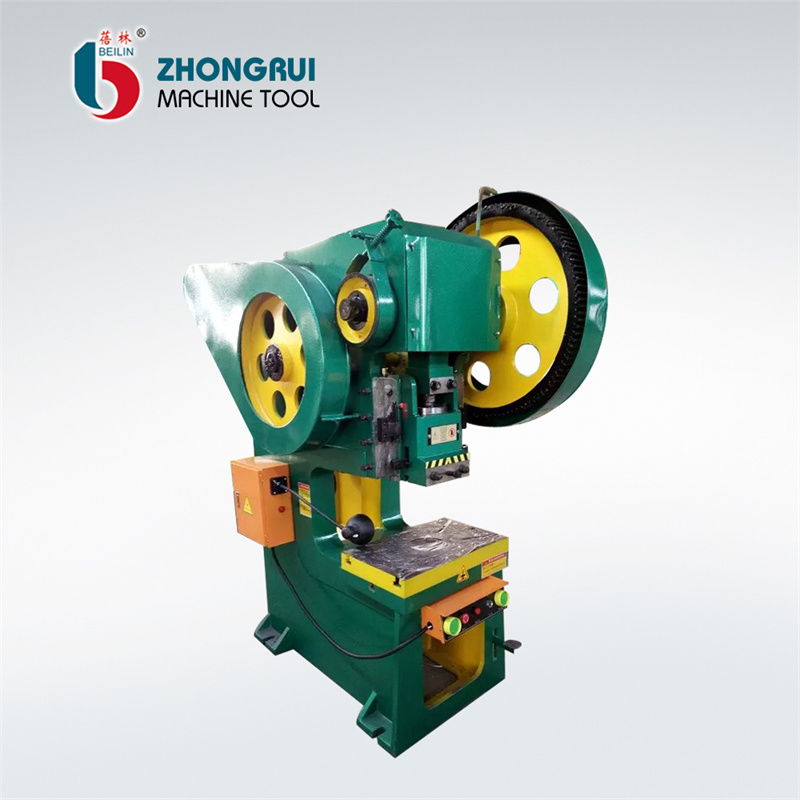

- Model Number: J23-10
- Weight (T): 0.57
- Key Selling Points: Easy to Operate
- Warranty: 1 Year
- Applicable Industries: Building Material Shops, Machinery Repair Shops, Home Use, Construction works
- Showroom Location: Canada
- Marketing Type: Ordinary Product
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Gear
- After-sales Service Provided: Engineers available to service machinery overseas, Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service
- Certification: CE&ISO9001, ISO
- Name: best quality open back inclinable power press
- Color: as customer
- Power(W): 1.1KW
- After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
- Local Service Location: Egypt, Canada, Algeria
