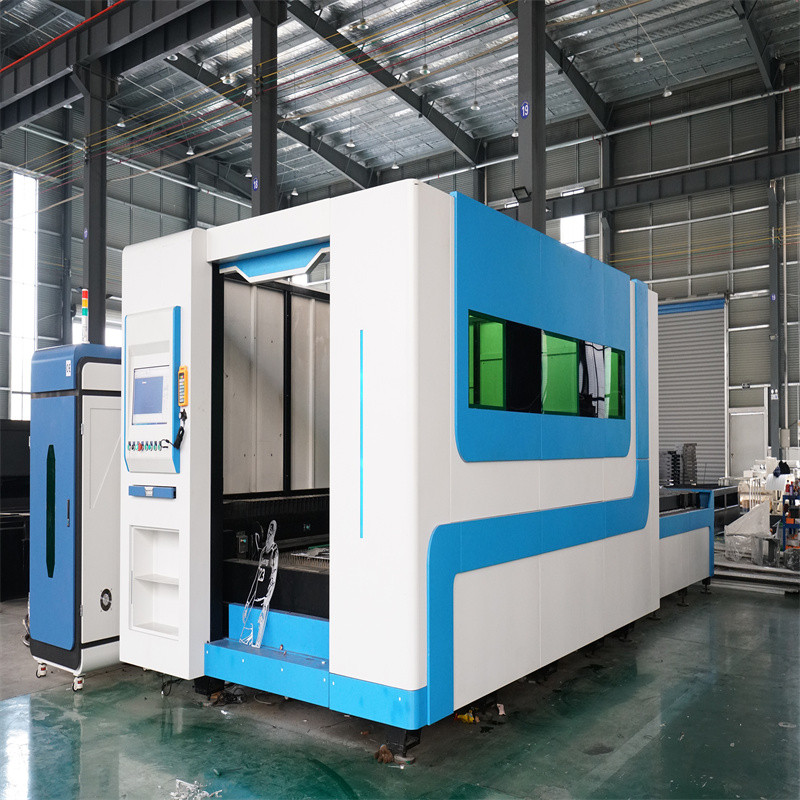

Metal Sheet Plates And Pipes Fiber Laser Cutting Machine With Rotary Device

Product Description

1. Professional laser cutting control system has the advantages of precise, stable, easy to use (able to layout graphics and pierce fast).

2. Gear rack transmission, double servo motors and drivers in Y, with accelerated speed up to 0.8G, ensures machine high speed as we as high precision.

3. High rigidity heavy machine body, minimizes the vibration during high speed cutting.

4. Adopt top brand fiber laser source, excellent laser beam, stable laser output, and precise cutting.

5. Use Taiwan rails, with higher precision and longer service time

Specification

Our Advantages

(1) High precision, high speed, narrow slit, minimum heat affected zone, smooth cutting surface without burr.

(2) Non contact cutting,The laser cutting head will not contact with the material surface and scratch the workpiece.

(3) The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.

(4) Flexible processing, can process arbitrary graphics, can also cut pipe and other profiles.

(5) Suitable for a variety of materials,It can cut steel plate, stainless steel, aluminum alloy plate, cemented carbide and other materials with any hardness without deformation.

Applications

Applied materials

Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.

Applied Industries

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.

Packing & Delivery

Good Quality

1. 15 engineers with more than 10 years rich working experience, manufacture high precision machines;

2.Three-day 72-hour testing machine inspection, after confirming that the machine has no quality problems, then it will be shipped;

3. 4 QC staffs do strict evaluations on in-coming inspections, in-process inspectionsandfinal inspections.

Good Price

1. RAYMAX manufactures about 50 sets of machines per month, with a large sales volume. We have long-term cooperation with parts suppliers, can get advantageous prices of parts, so that the price of machine is very competitive;

2. RAYMAX aims to develop long-term cooperation with new and regularcustomers, and to give customers the best prices with the most sincere attitude.

Good Service

1. English manual and videofor machine using and maintaining,explaining the operation steps in detail;

2. Professional after-sales service staffs, providing 24-hour online service;

3. Provide free technical training and factory field operation teaching

FAQ

Q1: I know nothing about this machine, what type of machine should I choose?

We will help you choose the suitable machine and share you the solution; you can share us what material will you cut, the material thickness and working size.

Q2: When I got this machine, but I don’t know how to use it. What should I do?

We will send English manual and Operation Video and for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.

Q3: May we know the speed of your Fiber Laser Cutting Machine as per on our demand basis?

We use Japan Servo motor and driver with big strength, so the max moving speed can reach 120m/min, max cutting speed can reach 40m/min. And the speed can reach 1.5-2m/min if you cut 4.5-5mm stainless steel.

Q4: If some problems happen to this machine, what should I do?

We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.

Q5: About accuracy, we have observed that after some time "Machine accuracy can increase gradually" and after long time, the difference reach to its maximum level. How about your machine?

The frame of the machine is annealed, it can support shock resistance(the machine will deform if without annealing ). So the accuracy of the machine can keep its original accuracy for 4-5years. The weight of the machine can reach 4.5t-5.0t. It also can let the machine have higher accuracy and higher stability.

Q6: What’s package, will it protect the products?

A: Nude Packing for big parts after plastic film covering. The small parts packed into wooden cases which is suitable for seaworthy transportation.

Q7: How is the shipping method?

A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your worksite as per your requirement .

Details

• Application: LASER CUTTING
• Applicable Material: Metal
• Condition: New
• Laser Type: Fiber Laser
• Cutting Area: 1500mm*3000mm
• Cutting Speed: 120m/min
• Graphic Format Supported: AI, DXF, PLT, BMP, Dst, Dwg, LAS, DXP
• Cutting Thickness: 6mm
• CNC or Not: Yes
• Cooling Mode: WATER COOLING
• Control Software: Cypcut
• Place of Origin: China

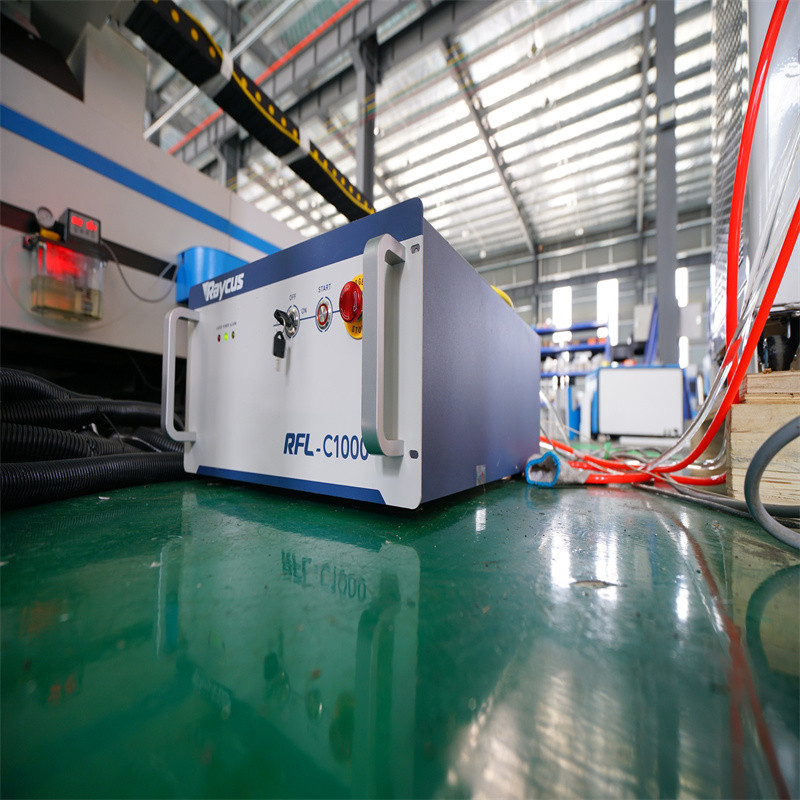

• Laser Source Brand: RAYCUS
• Laser Head Brand: Raytools
• Servo Motor Brand: Yaskawa
• Weight (KG): 2250 KG
• Key Selling Points: Competitive Price
• Warranty: 3 years
• Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Construction works , Advertising Company
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 1 Year
• Core Components: Motor
• Product name: metal sheet plates and pipes fiber laser cutting machine
• Keyword: fiber laser cutting machine
• Cutting materials: Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine
• Function: Cutting Metal Materials
• Voltage: 380V / 50Hz~60Hz
• Name: Metal Fiber Laser Cutting Machine
• Working table: Sawtooth Platform
• Laser source: MAX IPG RAYCUS
• Control system: Cypcut Control System
• Laser head: Switzerland Raytools
• After-sales Service Provided: Online support, Video technical support
• After Warranty Service: Video technical support, Online support
