Fiber Laser 2000 Watt Flatbed Fiber Laser Cutting Machine

Product Description

Small and easy to use

The whole machine adopts a simple and integrated design. On the basis of both functions and efficiency, the volume of the whole machine is designed more exquisitely, ready to use, easy to operate, and improve production efficiency.

Professional quality

The core components such as lasers, gears, racks and reducers are all internationally renowned brand products, with first-class quality in terms of idle speed, cutting accuracy, and cutting efficiency.

Lower cost

The compact and exquisite design of the whole machine not only controls the investment equipment cost, but also lowers the cost of the space occupied by the site. It is the first choice for processing and manufacturing enterprises.

Specification

Application	LASER CUTTING
Applicable Material	Metal
Condition	New
Laser Type	Fiber Laser
Cutting Area	1300*1300mm
Cutting Speed	0-24000mm/min
Graphic Format Supported	AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness	According to laser power
CNC or Not	YES
Cooling Mode	WATER COOLING
Place of Origin	China
Laser Source Brand	RAYCUS
Servo Motor Brand	Yaskawa
Guiderail Brand	THK
Control System Brand	RuiDa
Weight (KG)	3500KG
Key Selling Points	easy operate
Warranty	1 Year
Applicable Industries	Manufacturing Plant, Restaurant, Printing Shops
Showroom Location	Egypt
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Marketing Type	New Product 2021
Warranty of core components	1 Year
Core Components	Motor, Bearing, Gear

Machine Detail

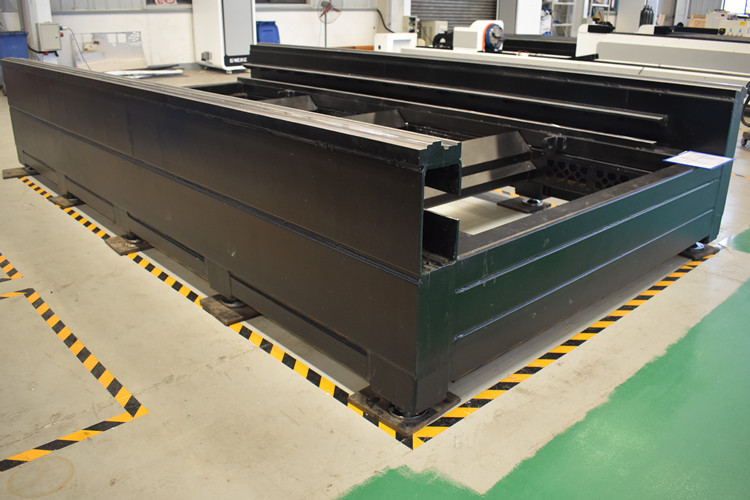

Lathe Bedwelded by 8-10mm industrial steel tubes, milled by large cnc lathe milling machine, heated with 650 degrees treatment, will not deform for 20 years and ensure stable moving.

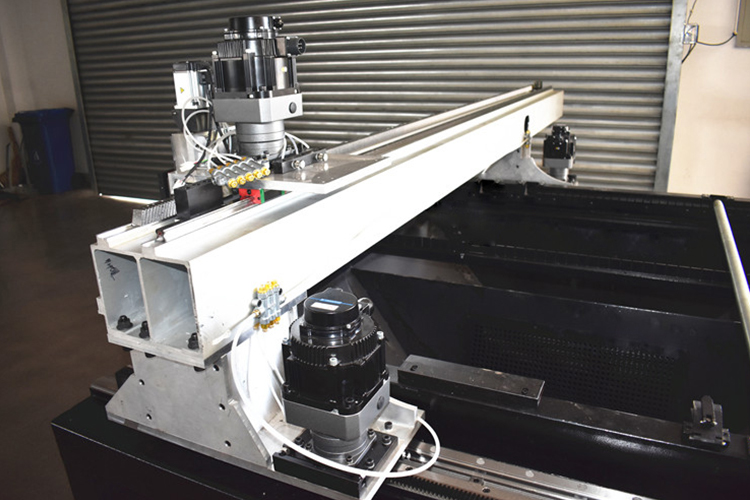

Transmission Double drives on Y axis, Taiwan Hiwin guide rails and Germany rack and gear, high speed with stability.

Motors and Drives

X,Y,Z axes are equipped with Japan Yaskawa servo motor and drive, 1.8kw, high cutting power and precision.

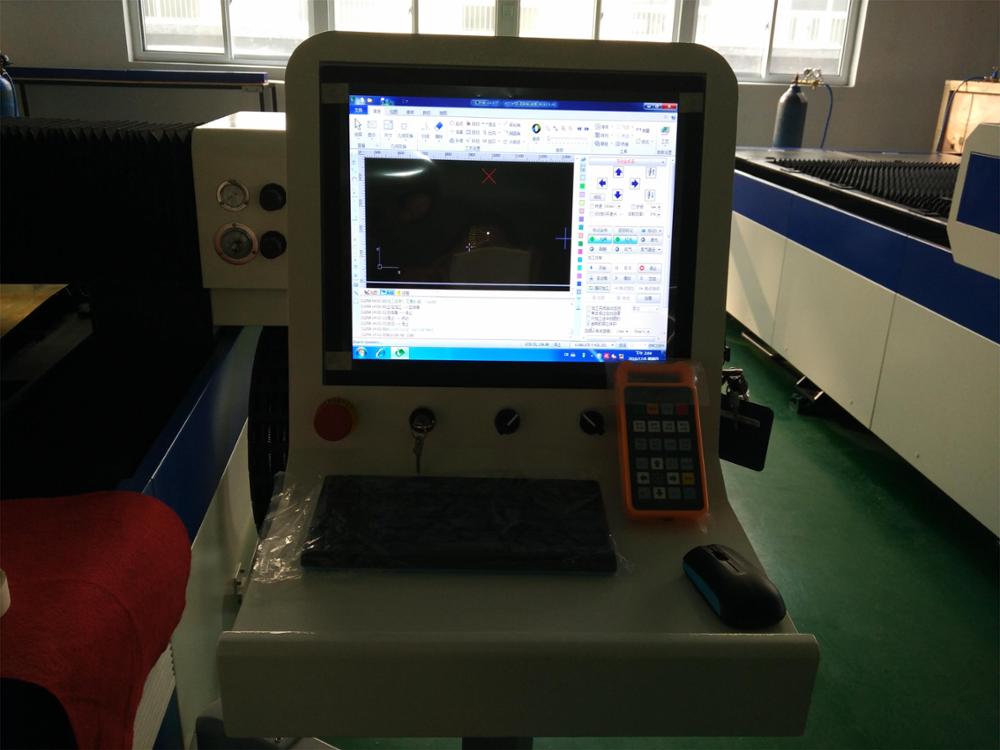

Control System and Software

Adopting Cypcut cnc control system and software of fiber laser cutting machine which is based onwindows operation system, receiving three-dimensional software and graphic software drawing directly, friendly interface, simple operation, easy to learn.

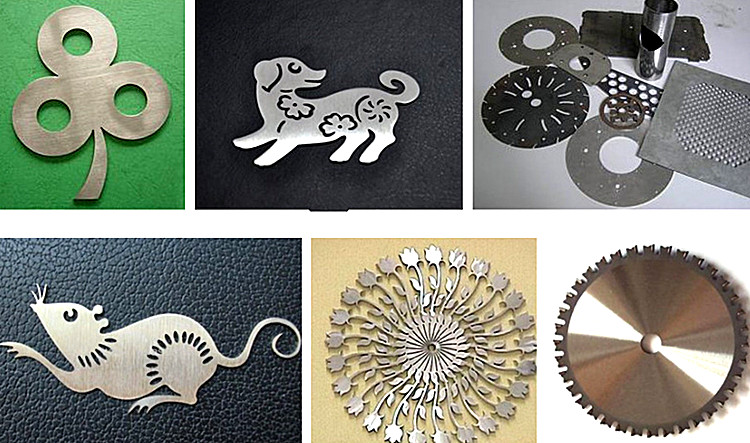

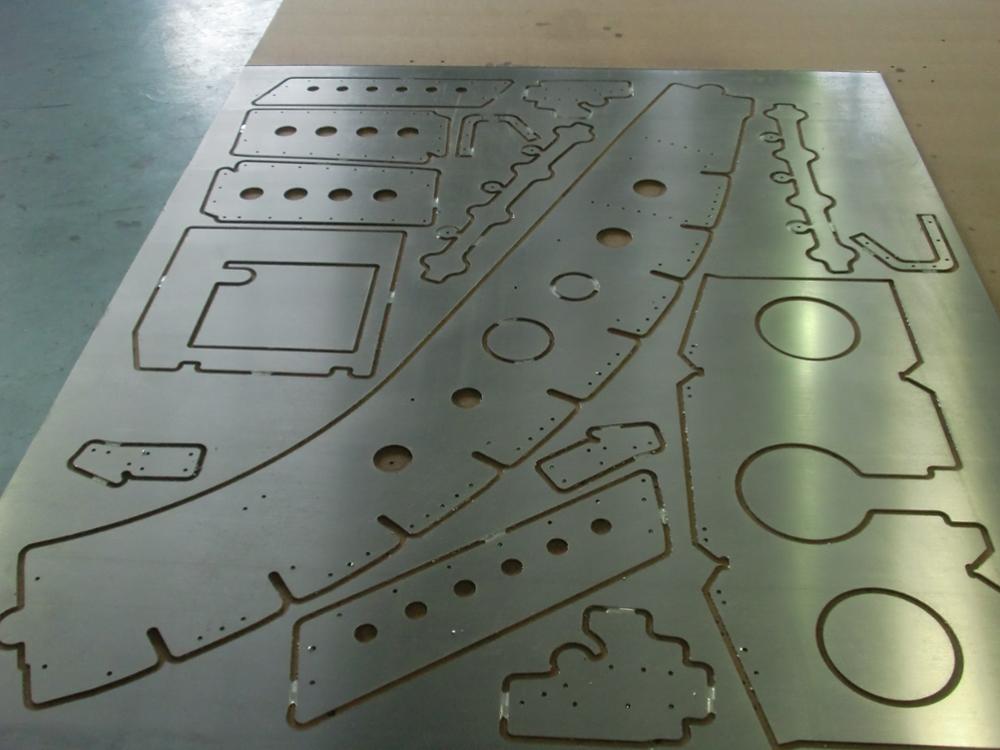

Samples of the machine

Machines can be used in many industries, such as jewelry, kitchen ware, chassis and cabinet, metal pipe, lamp and lanterns, metal ware, hardware, precision machinery, auto parts, elevator, nameplate, advertisement, electronics, toys and other industries.
