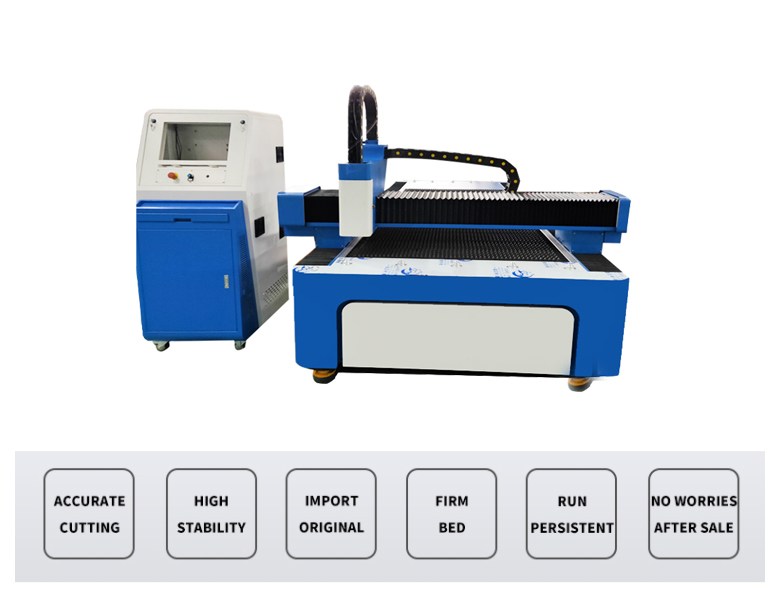

Main Features
1. The famous brand of fiber laser resonator, electronic components, mechanical parts to ensure machine superior stability
2. Open design provides easy loading and unloading
3. Single working table saves space
4. Drawer style tray makes easy collecting and cleaning for the scraps and small parts
5. Gantry double driving structure, high damping bed, good rigidity, high speed and acceleration
Technical Date
| Laser type | Fiber laser |
| Model | HH-F1530 |
| Fiber laser source | Raycus, IPG, nLight(Optional) |
| Laser wavelength | 1070nm |
| Laser power | 300W, 500w,700W,1000W,1500w,2200w,3000w option |
| Cutting area | 1500mm x 3000mm |
| Moving system | Japanese YASKAWA servo motor, Germany Alpha Reducer and Germany Alpha high precision rack and pinion, Hiwin linear guide transmitting system |
| Lubrication system | Automatic Lubrication system |
| Fume and dust extraction system | Specialized connection pipe with 2 centrifugal blowers (standard allocation) |
| Cooling system | Professional water chiller system |
| Laser head | Germany Precitec cutting head model: auto focusing |
| Control | Cypcut control |
| Repeat position accuracy | ±0.02mm |
| position accuracy | ±0.03mm |
| Max Processing speed | 25m/min(up to materials) |
| Cooling way | Water cooling |
| Format supported | PRT,PLT, DXF,DWG, AI, DST,NV etc |
| Power supply requirement | AC 380V 5% 50/60Hz 3Phase |
| Max steel cutting thickness | 1-22mm |

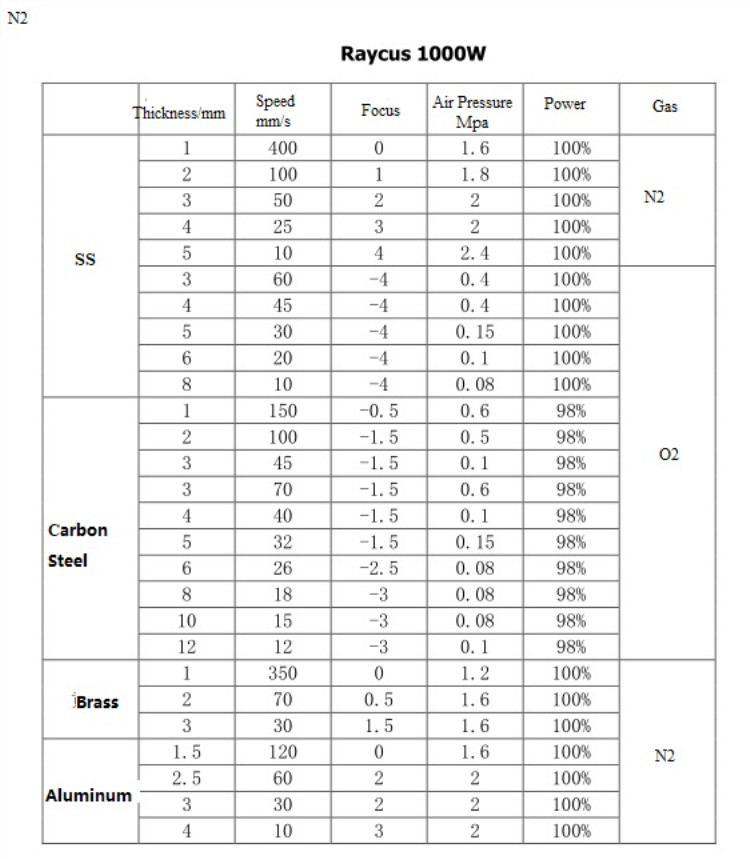

Cutting Thickness ,takes Raycus 1000W as example
Application Industry
The advertisement industry, decoration industry, Racks & Cabinets Processing, Metal Crafts, engineering machinery, steel and iron, metal plate chassis, air-conditioner manufacturing, metal plate cutting, Sheet metal, hardware, kitchenware, electronic, automotive parts, glasses, lighting, jewelry, etc

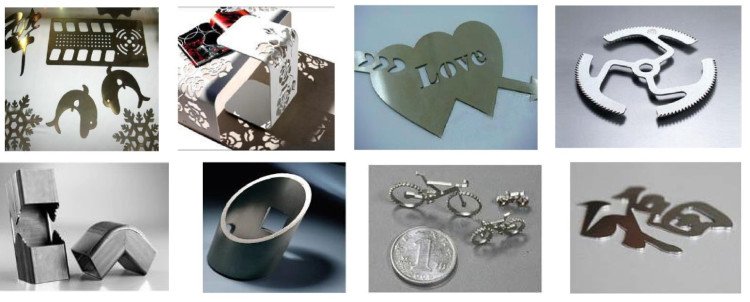

Available Materials
Specially for stainless steel, carbon steel, galvanized plate, many kinds of alloy, etc. If you want to cut high reflection metal materials, such as brass, copper, aluminum etc. We can customize the metal cutting machine according to your demands.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*12months warranty and 36months for motor
*24hours full after sale service to solve your problem.

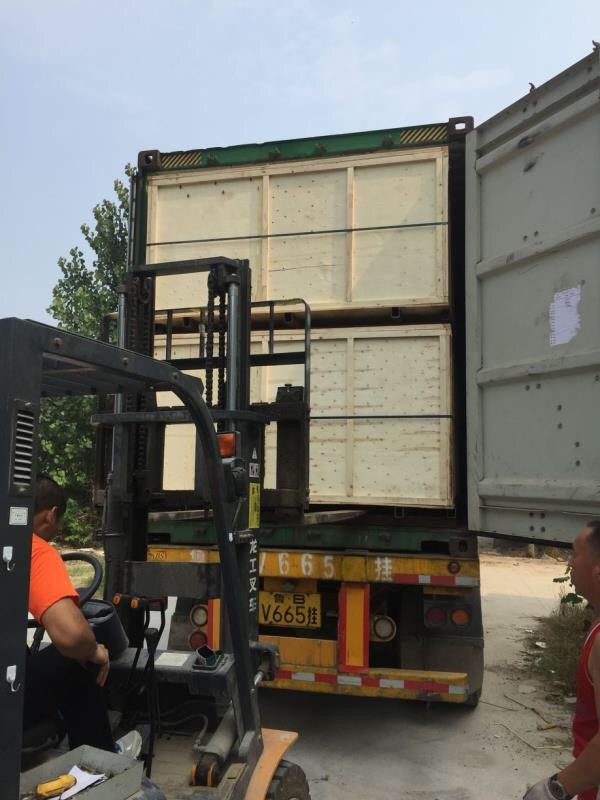

Package& Delivery

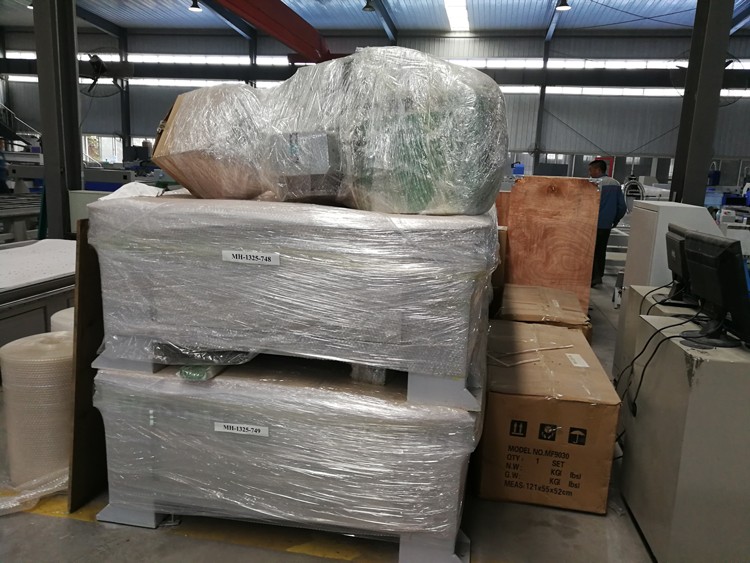

Inner package: Stretchy film and plastic film for humidity.

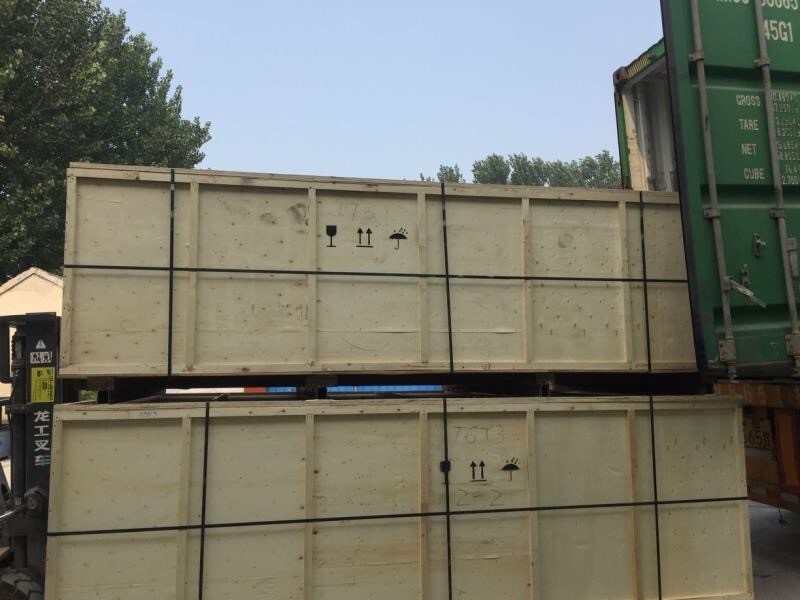

Outside package: Standard marine export plywood case.
We can package according to your requests.
FAQ
1. what's the package?
we use seaworthy packing,inside is a foam and PE film,outside is wooden case to protect it.
2. what's the warranty?
12months for all machines
3. How to install and run the machine?
we will send the install and video and user's manual with the machine, most customers can learn by themselves. we also provide romote machine or overseas training sevice.
4. Do you have the any materials for sale?
Yes,we have all kinds of materials such as aluminum coil and stainless steel.
5. MOQ ?
Our MOQ is 1 set machine.
Details
- Application: LASER CUTTING
- Applicable Material: Acrylic, Metal, Plastic
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 1500mmx3000mm
- Cutting Speed: 60m/min
- Graphic Format Supported: AI, PLT, DXF, Dst, Dwg
- Cutting Thickness: 0-20mm
- CNC or Not: Yes
- Cooling Mode: WATER COOLING
- Control Software: Cypcut/AU3TECH
- Laser Source Brand: RAYCUS
- Laser Head Brand: HIGHYAG
- Servo Motor Brand: Inovance
- Guiderail Brand: NSK
- Control System Brand: WEIHONG
- Weight (KG): 1000 KG
- Key Selling Points: Easy to Operate
- Optical Lens Brand: II-VI
- Warranty: 1 Year
- Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Engine
- Mode of Operation: continuous wave
- Configuration: 2-axis
- Products handled: Sheet Metal and Tube
- Feature: Automated Loading
- After-sales Service Provided: Online support
- Keyword: Laser Metal Cutting Cnc Machine
- Laser power: 300-1500W
- Cutting materials: Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )
- Control system: Cypcut Control System
- Color: Customer Requirement
- Power supply: 380V/50HZ
- Moving System: Servo Motor
- Repeat position accuracy: ±0.03mm
- Showroom Location: Saudi Arabia
