Machine Description
Laser cutting is the best cutting method among the various cutting technologies that people have mastered today. The advantages of laser cutting are: small thermal deformation, high cutting accuracy, low noise, no pollution, easy to realize automatic cutting, although the initial investment is large ( Disadvantage), but the processing cost is 50% less than mechanical processing. As an advanced manufacturing technology, laser cutting has the advantages of wide application range, flexible process, high processing precision, good quality, clean production process and easy realization of automation, flexibility, intelligence, and improvement of product quality and labor productivity.
Machine Feature
1. The machine adopts an open worktable structure, imported high-precision dual-drive rack and pinion and linear guide rail, stable transmission and high precision.
2. Both the bed and the moving beam adopt an integral welding structure. The bed is heat-treated at 600°C and finished by 12-meter gantry milling. It is cooled in the furnace for 24 hours. After annealing, it is roughed and then subjected to vibration aging treatment, which can completely eliminate welding and Processing adaptability, good rigidity, high precision, can keep long-term use without deformation.
3. The X, Y, and Z axes are all imported from France with servo motors with high precision, high speed, large torque, large inertia, stable and durable performance. Ensure the high speed and acceleration of the whole machine.
4. It adopts the special numerical control system of CYPCUT fiber laser cutting machine based on Windows operating system, and integrates many special function modules for laser cutting control, with powerful functions, good man-machine interface and simple operation.
5. CYPNEST Expert Edition nesting software is the core technology for CNC cutting machines to realize "full-time cutting, high-efficiency cutting and high nesting rate cutting". It is the fundamental guarantee for effectively saving materials and improving cutting efficiency.
6. The cutting head adopts special fiber laser cutting heads produced by internationally renowned brands and capacitive sensors, with high sensing accuracy, sensitive response, and the most stable and reliable performance. 7. The high-precision electronically controlled proportional valve imported from Germany can precisely control the air pressure of the cutting auxiliary gas to achieve the best cutting effect.
Machine Components

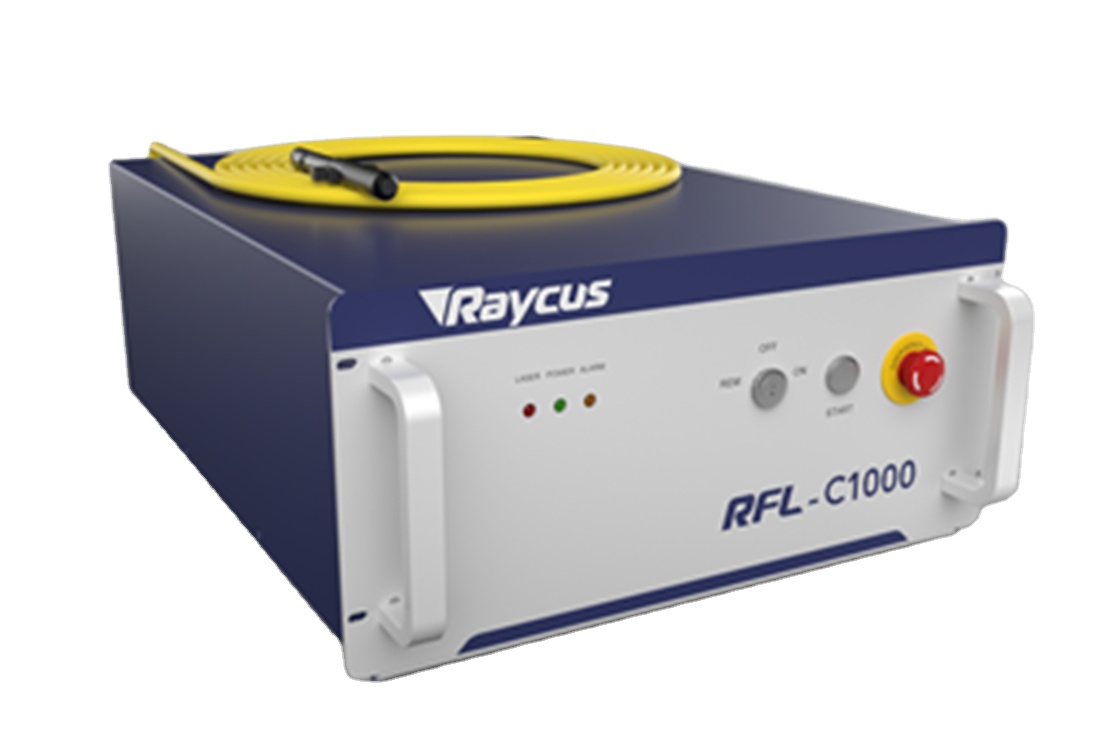

Raycus RFL-C1000 fiber laser source
• Excellent beam quality (BPP)
• Constant BPP in the full power range
• Use a long focal length to still get a small spot
• Electro-optical conversion efficiency>25%
• Maintenance-free operation
• Modular design, "plug and play"
• Small size and easy installation
• Service life of pump source >100,000 hours

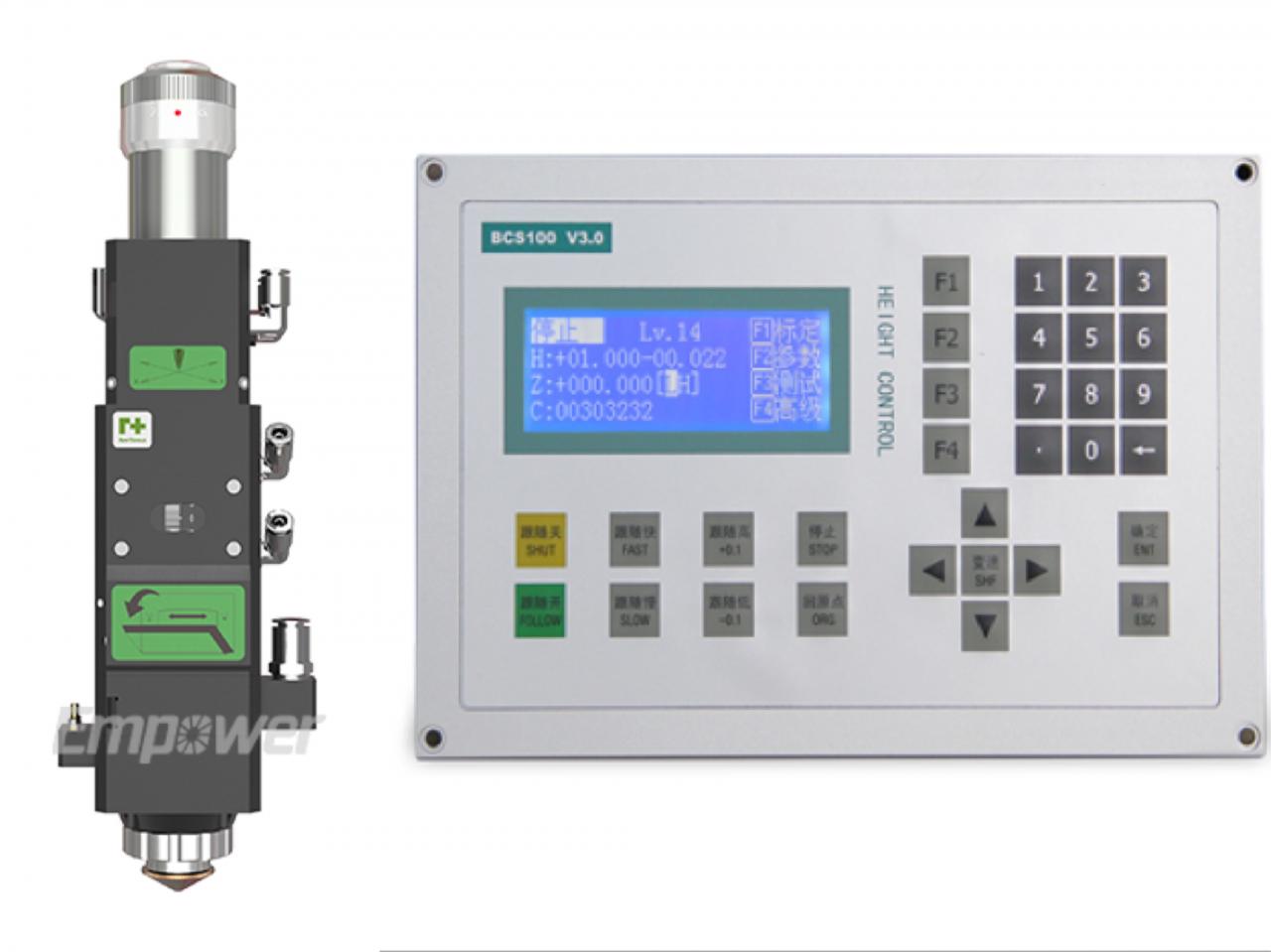

Cutting head and height controller
• Available with capacitive height sensing.
• Temperature sensors protect optics and minimize the chance of overheating.
• 10mm of lens movement to set focus.
• Quick and easy access to cover glass.
• Flexible design to optimize spot size.
• Smooth assist gas flow.
• Compact, Lightweight design.

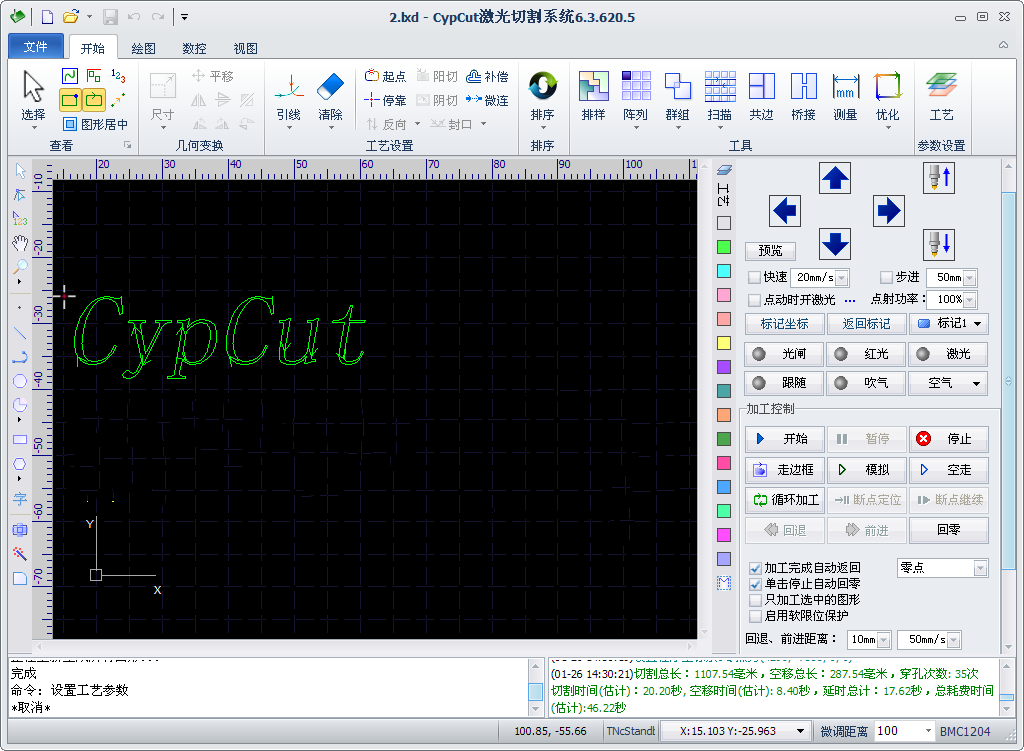

Cypcut cutting system
• Auto Height adjustment
• Software protection
• Laser beam power control
• Sudden shut down point resume function
• Frog jump and Auto edge positioning function
• Real time response to avoid signal lag that causing round edge
Specification
| Main Components list | ||
| No. | Component Name | Manufacturer--Origin Place |
| 1 | Machine Tool | Plate welding machine tool--Dahan |
| 2 | Machine Beam | Aluminum beam--Dahan |
| 3 | Fiber Laser source | Raycus/Max 1000W--China |
| 4 | Laser Head | Raytools-- China |
| 5 | Cutting System | Cypcut -- China |
| 6 | Servo Motor & Driver | Schneider -- France |
| 7 | Speed Reducer | Shimpo -- Japan |
| 8 | Guide Rails | Hiwin -- Taiwan |
| 9 | Rack & Pinion | YYC from Taiwan |
| 10 | Proportional Valve | SMC --Japan |
| 11 | Chiller | Hanli -- China |
| Specifications | |
| Laser power | 1000W |
| Cutting area(mm)(L×W) | 3000mm×1500mm |
| Max cutting speed(m/min) | 120 m/min |
| Max Accelerated | 1.5G |
| Positioning accuracy | ±0.03mmmm |
| Repeatability accuracy | ±0.02mm |
| Min line width | 0.15mm |
| Max Cutting depth (Mild Steel) | 12mm |
| Stainless Steel N2 | 5mm |
| Aluminum | 3mm |
| Driving Way | Imported servo motor |
| Tranmission Way | Imported gear rack & pinion double driver |
| Electrical Requirements | 380V/50Hz.60Amp |
| Power Consumption | 12KW |
| Work Piece Weight | 800kg |
| Weight | 5500kg |
| Outline size(mm) | 4800mm×2700mm×1900mm (L×W×H) |
| Outline size with pallet changer(mm) | 8400mm×3000mm×2100mm (L×W×H) |
Advantages & Applications
ADVANTAGES:
1, Cost saving on power consumption/ only 20-30% of co2 laser cutting machine under same power.
2, Flexibility and precision cutting of simple or complex parts
3, Adopts imported world brand fiber laser/Life time over 100,000hrs
4, Imported servo motor and gearing system ensure precision cutting
5, High quality cut with no extra finishing required
6, Higher cutting speed and efficient, speed of cutting plate over 10 meters per minute
7, Non contact cut which means no marks or contamination of the material
8, Ability to cut virtually any sheet metal
APPLICATIONS:
APPLICABLE MATERIALS: Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.
APPLICABLE INDUSTRY: It is widely applied in industrial pipeline processing, explosion-proof equipment, military industry, chemical industry, oil exploration, lamps and lanterns, metal processing, ironware, building, etc.
Our Service&Advantages
Our Service
1. Two years warranty for this fiber laser machine and fiber laser parts ;One year warranty for other machine and parts.
2. 24 hours professional online technical support.
3. Skilled engineer will help customer to solve the problem by TM ,Whatsapp in time when problem happen.
4. Free software update.
5. Lifelong maintenance and spare parts supply.
Our Advantages
1. Alibaba Authentication Enterprise
2. 12Years Export Experience
3. 20Years Manufacture Experience
4. OEM&ODM Service
5. 24Hours Online Service
6. Dealer network all over the world
Details
- Application: LASER CUTTING
- Applicable Material: Metal
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 3000*1500mm
- Cutting Speed: 120m/min
- Graphic Format Supported: DXF
- Cutting Thickness: 1-10mm
- CNC or Not: Yes
- Cooling Mode: WATER COOLING
- Control Software: Cypcut
- Laser Source Brand: Raycus/IPG/Max
- Laser Head Brand: Raytools/Precitec
- Servo Motor Brand: Yaskawa
- Guiderail Brand: HIWIN
- Control System Brand: Cypcut
- Weight (KG): 5500 KG
- Key Selling Points: Long Service Life
- Optical Lens Brand: Raytools
- Warranty: 1 Year
- Applicable Industries: Manufacturing Plant, Sheet metal processing
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Core Components: laser source
- Max cutting speed(m/min): 120 m/min
- Max Accelerated: 1.5G
- Positioning accuracy: ±0.03mmmm
- Repeatability accuracy: ±0.02mm
- Min line width: 0.15mm
- Max Cutting depth (Mild Steel): 12mm
- Stainless Steel N2: 5mm
- Aluminum: 3mm
- Electrical Requirements: 380V/50Hz.60Amp
- Outline size with pallet changer(mm): 8400mm*3000mm*2100mm (L*W*H)
- Certification: Sgs
- After-sales Service Provided: Online support, Free spare parts, Video technical support
- After Warranty Service: Video technical support, No service, Online support, Spare parts, Field maintenance and repair service
