Product Description
Fiber laser cutting machine is a high-performance, shock resistant gantry style laser built for industrial use. The design contains a machine-wide cooling, lubricating and dust collection system guaranteeing durability and longevity. Automatic height adjustment keeps the focal length constant ensuring quality results.
Fiber laser cutting machine is a high-performance, shock resistant gantry style laser built for industrial use. The design contains a machine-wide cooling, lubricating and dust collection system guaranteeing durability and longevity. Automatic height adjustment keeps the focal length constant ensuring quality results.
Features
# Raycus Laser Generator
# Shanghai Cypcut System
# Yaskawa Servo Motor
# Auto focus system
# Swiztland Raytools Laser Head
# wifi remote control
# Schneider Electric Devices
# Red light positioning
# Square tube welded bed
# HIWIN rail
# German rack
# High soft wear-resistant towline
# DLY water chiller 1.5-2P, dual temperature and dual control
# High-flexible, high-speed, wear-resistant cable
# Waste collection system
# Automatic dust removal system
Frame structure
Sturdy plate-welding and tempered heavy machine body, for cutting metal sheets.
Gantry:
Aluminum alloy die pressure casting, watering integrated beam. Has the advantages of light and stable structure, energy saving, light weight, small inertia and good dynamic performance.
Laser Head
Raytools Fiber Laser Cutting Head with anti-crash function, good sealed, high pressure resistant, auto-tracking system and anti-crash and stop system can protect good cutting qualiy and longer the life of lens.

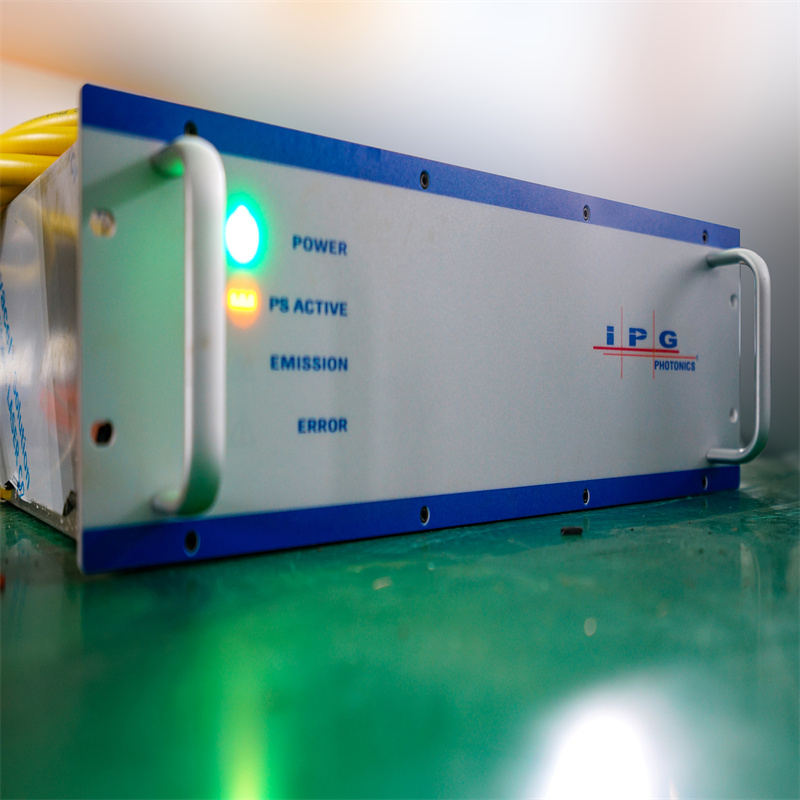

Laser Generator
Fiber Laser Source, used IPG, Raycus or MAX laser, with better performance, ultra-low noise, high stability and ultra-long lifetime for 100000 hours.
Controller
Control panel, you can design the patterns you want here. Or you can import patterns via USB flash drive.Equip with Cypcut or NC-Studio (Weihong) control system, Chinese top brands. Integrated special function module for laser cutting control, powerful, good man-machine interface and easy operation.Handle control, easy to operate. You can control the machine within 40m.
Motor and driver
Japan Yaskawa brand. Panasonic etc brands to option.
| Parameter | |
| Laser machine cutting area | 3000x1500mm (Other size can be customized, such as 6000x1500mm) |
| Laser Generator | Raycus 1000W |
| Laser wave length | 1064nm |
| Transmission System | Gear Rails |
| X, Y Axis Location accuracy | ±0.01 mm |
| X, Y Axis Repeat Location accuracy | ±0.01 mm |
| X, Y MAX moving speed | 30m/min |
| Cutting Thickness | Different materials are different |
Application

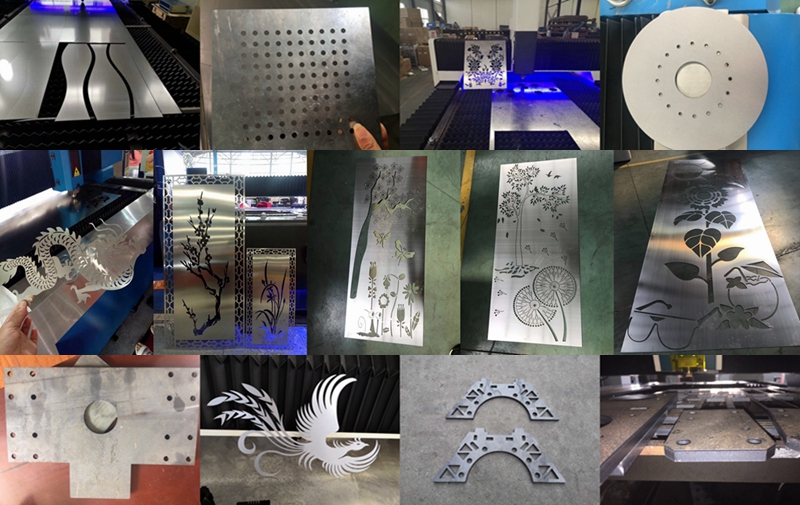

Available for cutting such metal sheet as stainless steel, carbon steel, copper, brass, alloy steel, aluminum, gold, silver, titanium and so on. CNC fiber laser cutting machines metal
Widely used in the sheet metal processing, shipbuilding, automobile, rail transportation, agriculture machinery, advertising board,kitchen utensils, machinery, elevator and so on.
Details
- Application: LASER CUTTING
- Applicable Material: Metal
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 1500*3000mm
- Cutting Speed: 1-30m/min
- Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
- Cutting Thickness: 1500*3000mm
- CNC or Not: Yes
- Cooling Mode: WATER COOLING
- Control Software: Cypcut
- Laser Source Brand: RAYCUS
- Laser Head Brand: Raytools
- Servo Motor Brand: Yaskawa
- Guiderail Brand: HIWIN
- Control System Brand: Cypcut
- Weight (KG): 3340 KG
- Key Selling Points: Automatic
- Optical Lens Brand: II-VI
- Warranty: 3 years
- Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 3 years
- Core Components: Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
- Mode of Operation: continuous wave
- Configuration: 3-axis
- Products handled: Sheet Metal
- Feature: Water-cooled
- Laser head: Raytools
- Laser source: Raycus Laser Source
- Driving system: Japan Servo System
- Compatible software: AutoCAD
- Voltage: 380V 50 HZ
- Auxiliary equipments: Auto Partitioned Exhausted System
- Cooling system: Water Chilller
- Following system: Included
- Laser wavelength: 1060nm-1080nm
- Laser tube: Raycus Fiber Laser
