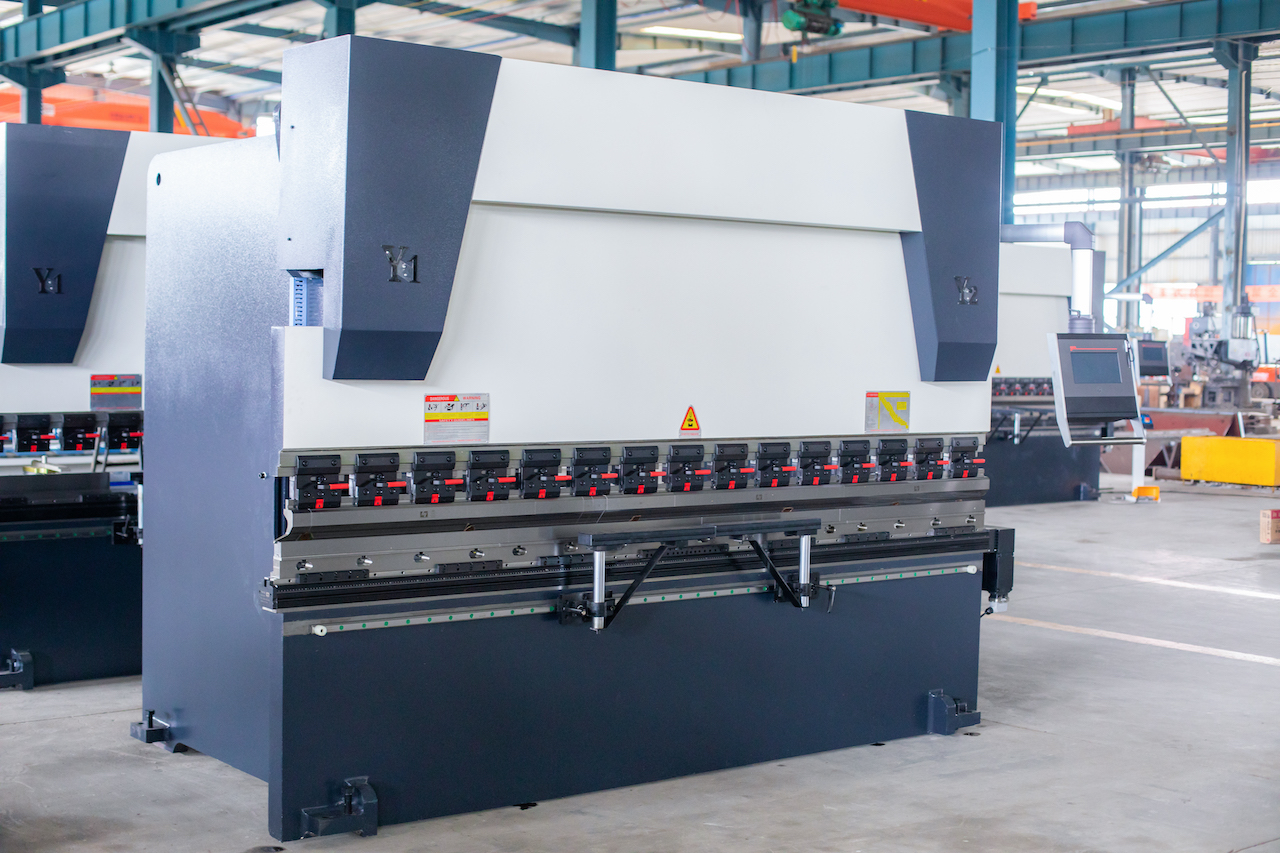

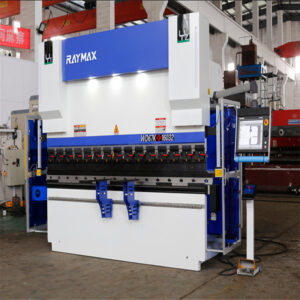

The CNC press brake uses the mold (general or special mold) to bend a cold metal sheet into a workpiece of various geometric cross-section shapes. It is a sheet metal forming machine designed for cold rolling sheet metal processing. It is widely used in sheet metal bending, such as automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other industries.
1. High bending precision,fast working speed, and efficient,operational safety, performance stably.
2. Good antiknock frame(welded-steel plate construction), whole frame is been tempering, reduce modification, using large-scale CNC milling machine,process in one time, insure high-precision.
3. Using international brand parts and cnc.
4. Visual operating system, easy operation, convenient, multi-functions and practical.
5. All parts are produced by cnc produce center, according to standard drawing.
6. High executive force, high standard and high professional machine assembled team.
7. Fashion outlook, delicate, and beautiful, machines are compact design, small floor space, easy operation.
8. Providing comprehensive bending program for all press brake, shearing machine user.
9. Replaceable worktable and the upper and lower mound, no welding, forging and precision grinding.
10. The similarity of images and shipping machine can reach 99.5%.
11. Thickening the slider and the vertical plate, to ensure the stability of the machine tool and reduce the elasticity.
12. Rational layout of the oil pipeline design, to prevent the oil temperature rise quickly.
13. Deliver goods on time
| Pressing force | 1000MM |
| Working length | 3200MM |
| Distance between uprights | 2600MM |
| Stroke | 350MM |
| Max opening height | 400MM |
| Table width | 200MM |
| Motor | 7.5KW |
| Overall dimension | 3800X1650X2330MM |
Details Images

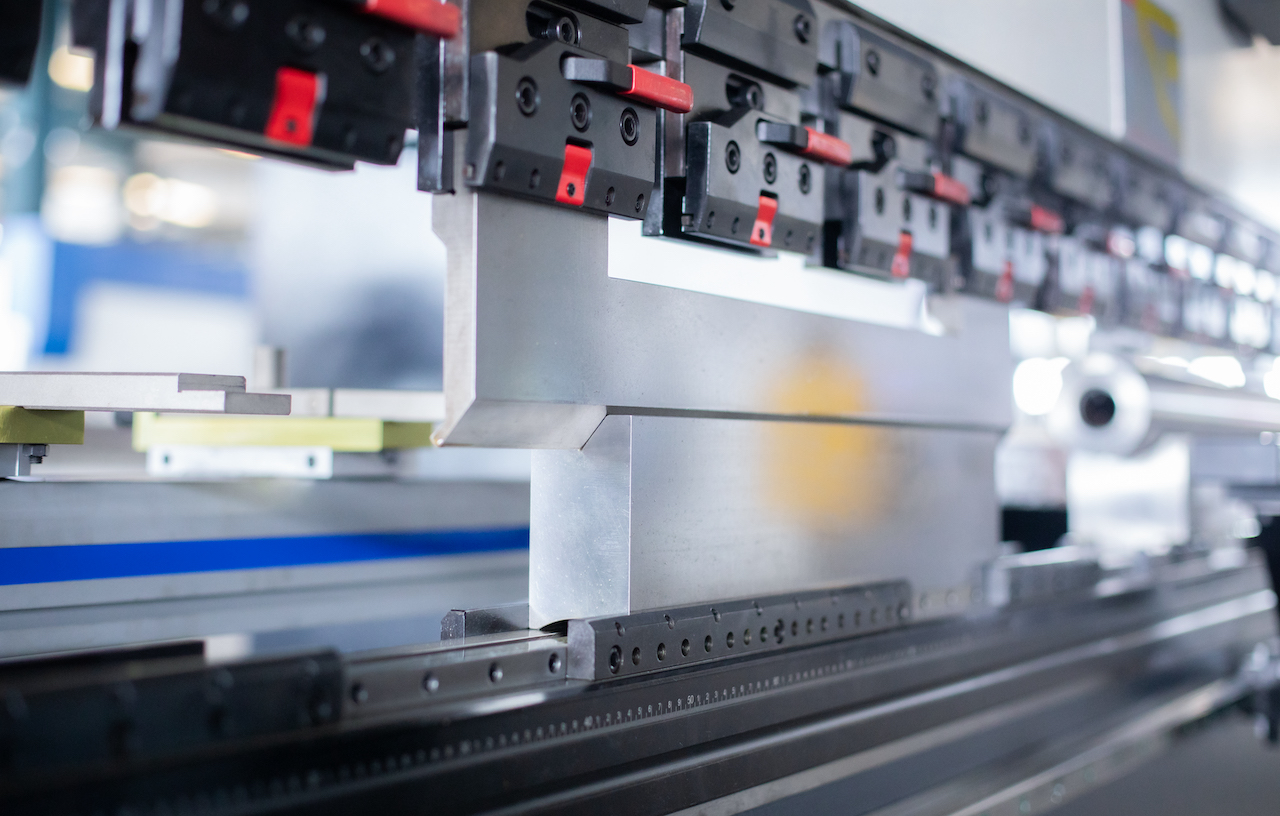

Fast Clampings
Standard double V lower die with different size and various shaped slots for choice, convenient for exchanging dies, capable for bending regular plates, with high cost performance CNC double-V die workbench, convenient for installation of segmented dies
Ball Screw & Guide Linear
Ball Adopt the HIWIN brand from Taiwan Ball Screw and guide linear, promise the high precision and speed when working

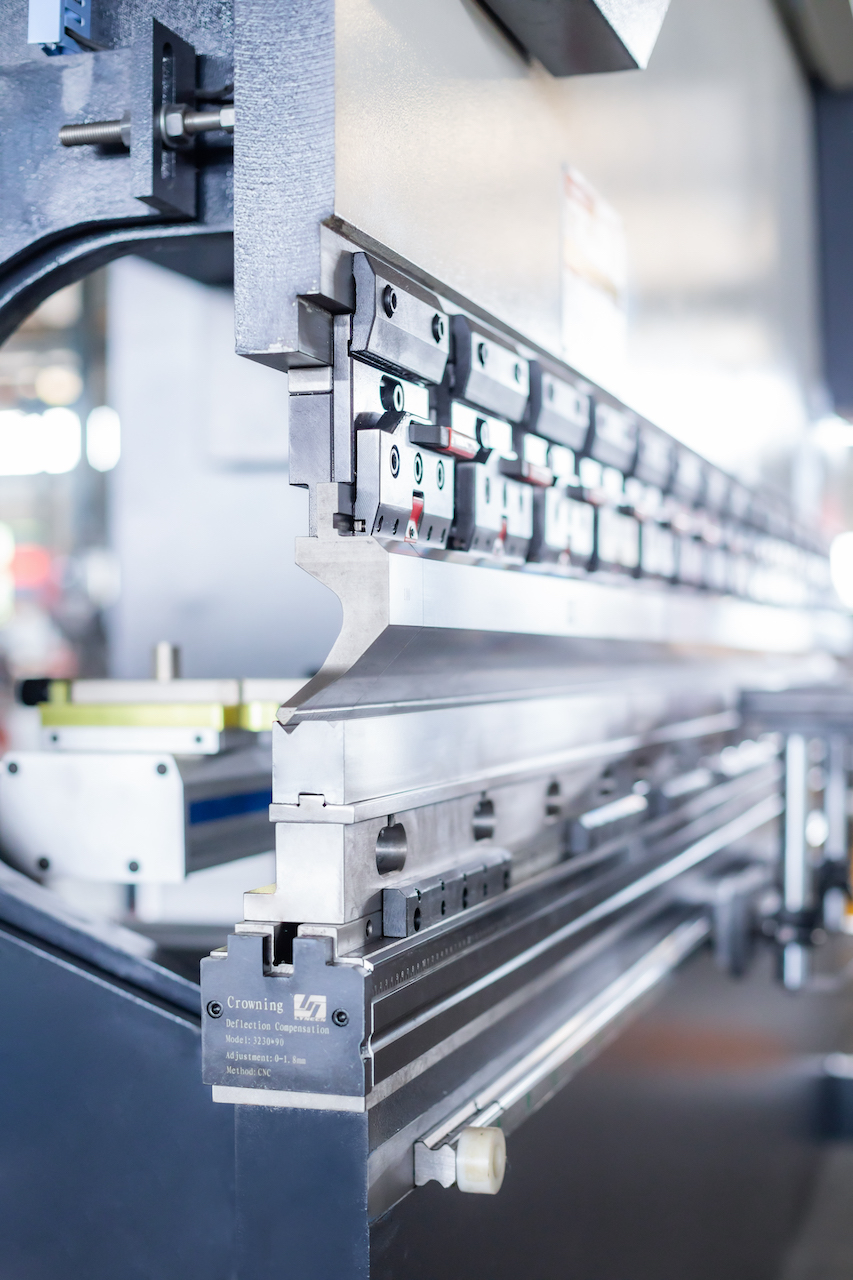

Press Brake Tooling
Press Brake toolings are made from 40CrMo Materials with hardness up to 52 degrees to ensuring die service life

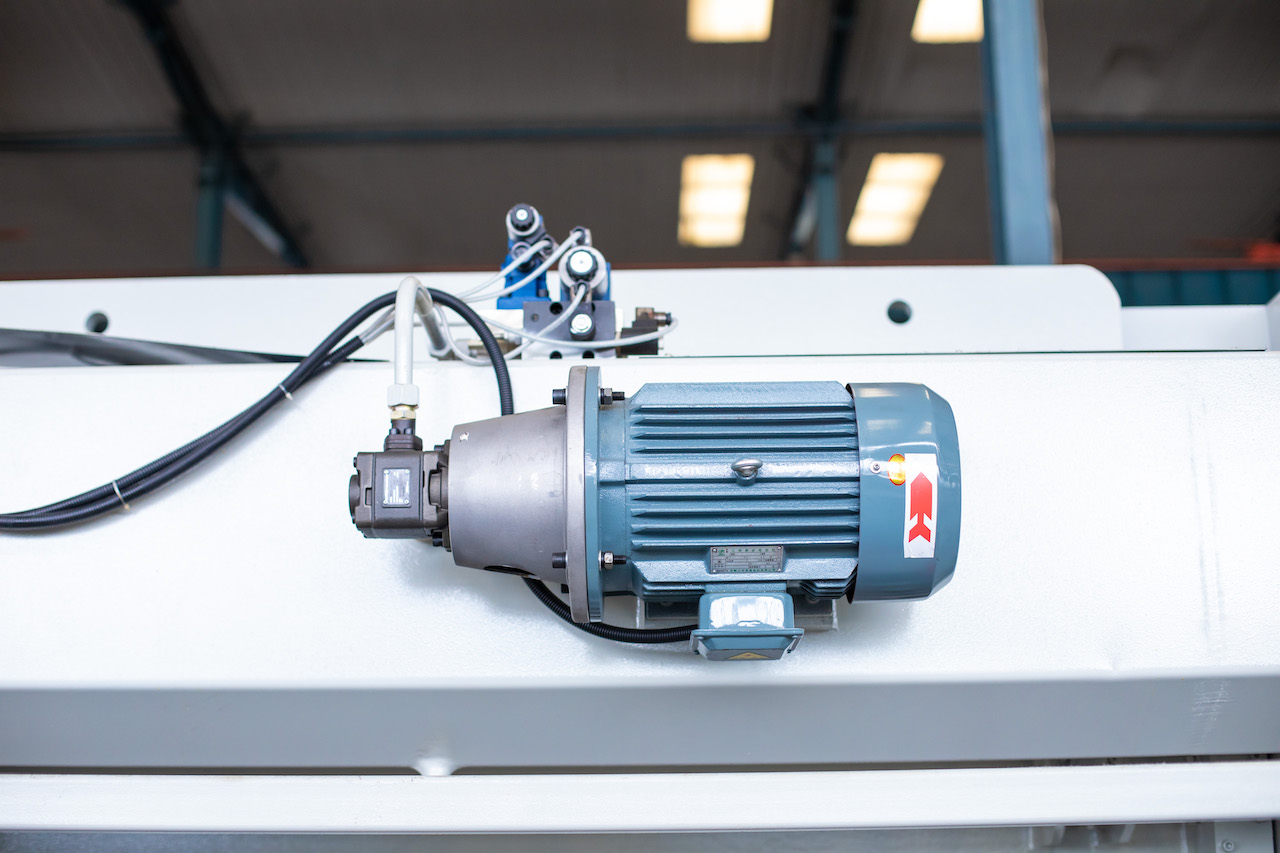

MAIN SERVO MOTOR
Using Germany Siemens main motor and USA SUNNY gear oil pump guarantee the machine service life and improve the machine working stability. At the same time, the special coupling device also greatly reduces the noise of the machine in the process of running.

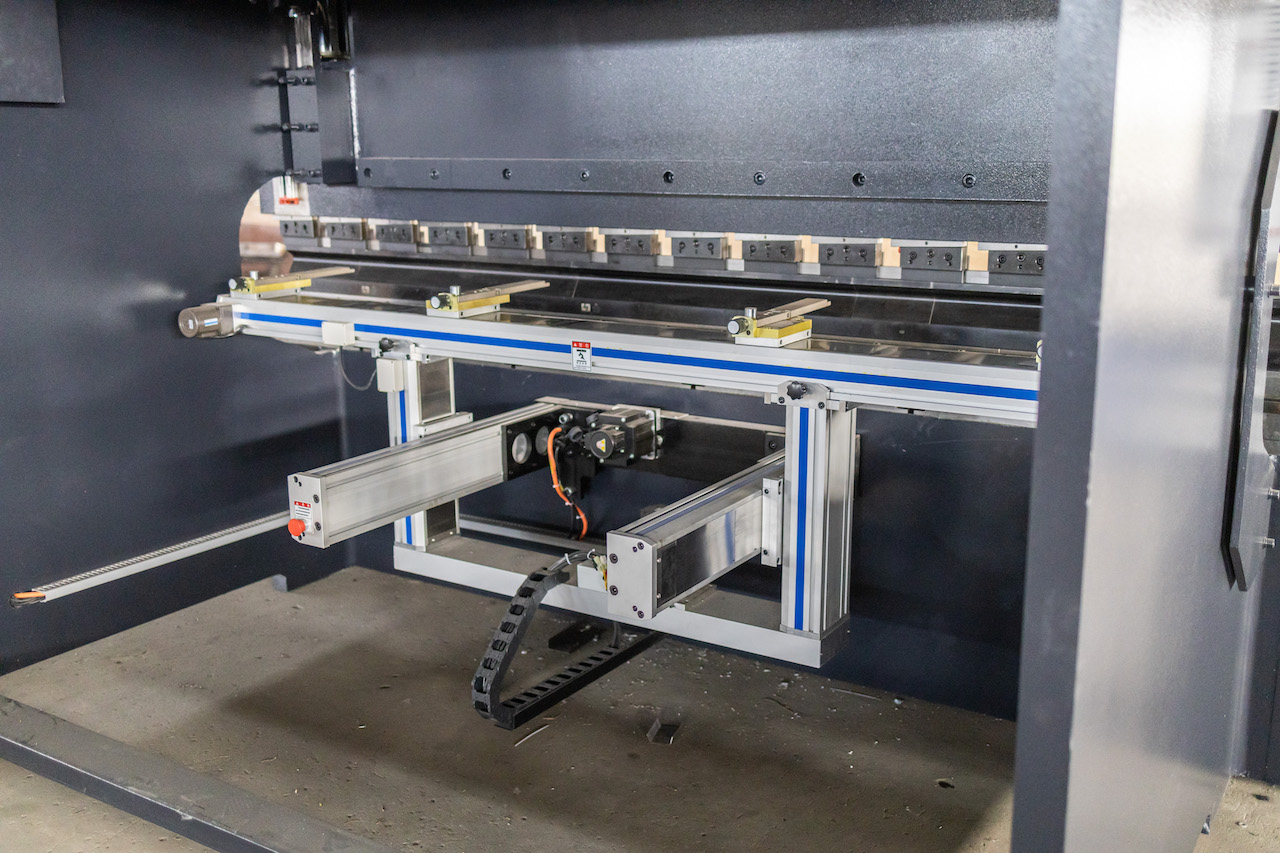

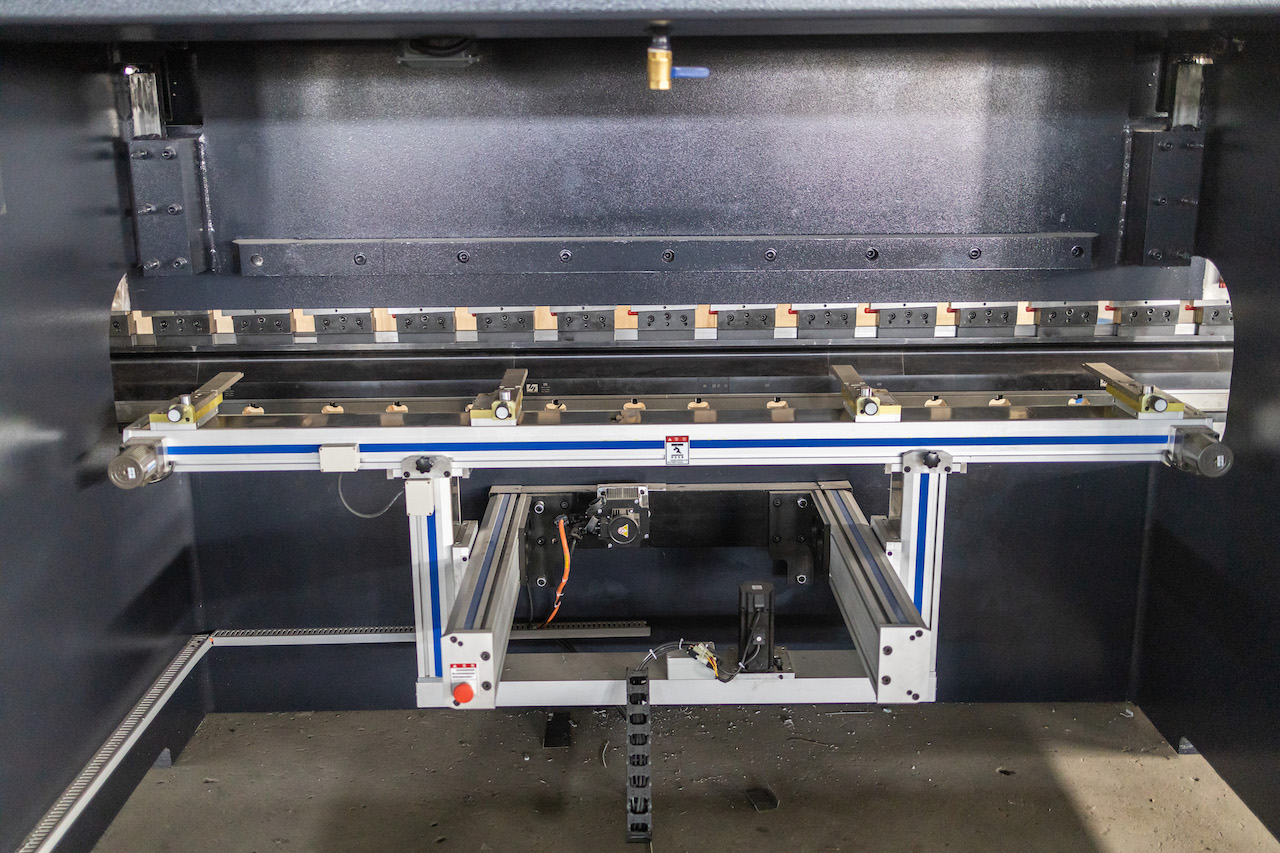

High Precision Back-Gauge
The unique and novel ball screw linear guide structure back-gauge ensures high positioning accuracy. Multi-level with movable, adjustable stop fingers. Increased positioning range makes bending more efficient and accurate . Optional function more Complete multiple Axes.

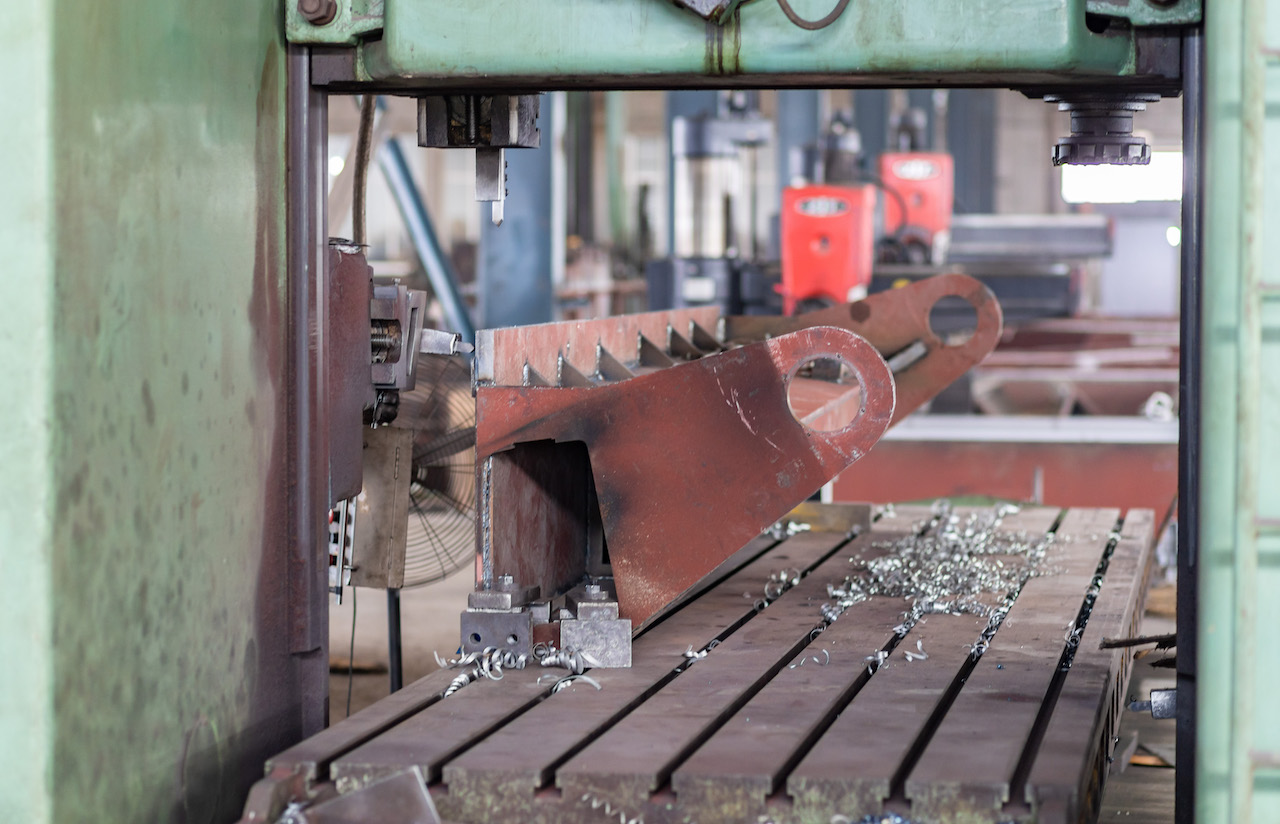

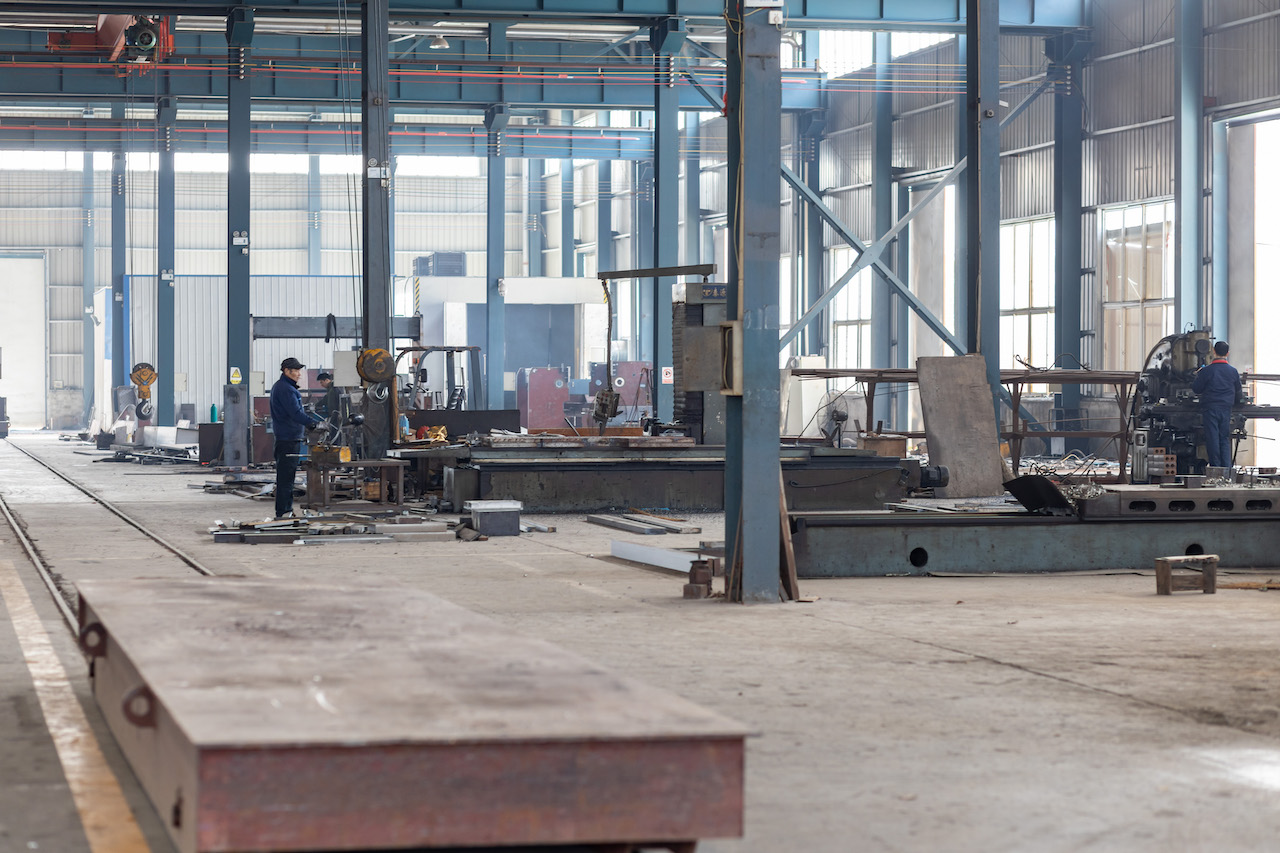

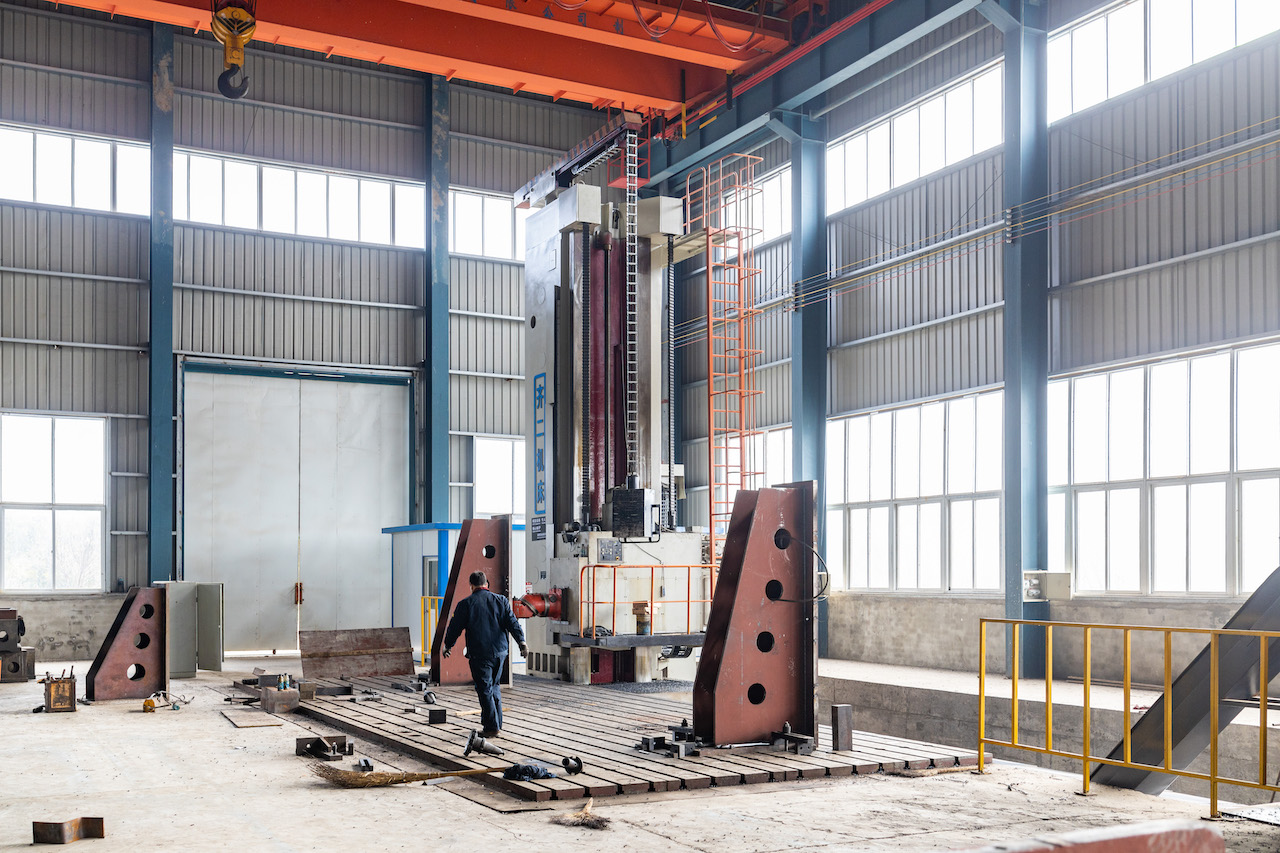

Production workshop
Our Service
1. Installation Services
Installation Services are available with all Our machines. We dispatch technician to customer's factory for installation and preoperation of machines. ( Customers only need to pay the airfare and hotel )
2. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
3. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data. Machine warranty is 5 years.
FAQ
Q: How to get a accurate quotation from us?
A:Please provide us the details of material , max thickness and max width .
Q: Can you do OEM service?
A:Yes, we can. your design is accepted , your own logo can be used on the machine.
Q: What's the shipping cost from china to your country?
A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.
Q: Do you accept LC payment?
A: Yes, normally our payment is 30% 70% T/T ,LC payment is also acceptable
Q: How to operate this machine?
A: Video line of our factory or we send you the video directly.
Q: What about commissioning service?
A: We can offer commissioning service , the buyer need to afford plane tickets.
Q: Do you offer teaching & training?
A:Training at supplier's plant
Details
- Slider Stroke (mm): 120 mm
- Automatic Level: Fully Automatic
- Throat Depth (mm): 320 mm
- Machine Type: Synchronized
- Length of Working Table (mm): 3200
- Width of Working Table (mm): 1600 mm
- Condition: New
- Place of Origin: Anhui, China
- Material / Metal Processed: Brass / Copper, Stainless Steel
- Automation: Automatic
- Extra Services: Cut To Length
- Year: 2021
- Weight (KG): 2800
- Motor Power (kw): 5.5 kw
- Key Selling Points: Easy to Operate
- Warranty: 5 years
- Applicable Industries: Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Advertising Company
- Showroom Location: Egypt, United States, Italy, France, Peru, Saudi Arabia, India, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Algeria, Sri Lanka, Bangladesh, South Africa, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan
- Marketing Type: Ordinary Product
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 5 years
- Core Components: Bearing, Motor, Pump, Gear, Engine, Other
- Product name: press brake
- Model Number: WE67K-100T/3200
- Size: 3200*1600*2600 CM
- G.W: 6300KG
- Name: WC76K CNC Bending Machine
- Power: 7.5kw
- CNC Control system: CT8/CT12/DA41/DA42T/DA53T...optional
- Model: WC67Y-100/3200
- Certification: ce
