Product Details
CAST-IRON BED, ANTI-VIBRATION, STABLE, NO DEFORMATION
*The main frame adopts the gantry structure welded by all steel plates to ensure the long-term stability without deformation
*The bed is annealed at high temperature in a large annealing furnace
*The bed is formed by imported gantry milling once
*Using gantry rack double guide rail, double servo drive structure
*Improve the stability and rigidity of the Y-axis beam
*Ensure the high precision and high dynamic performance of Y-axis beam movement
*Y-axis beam runs smoothly at high speed, greatly reducing gas consumption
Yaskawa Servo Moto
1. Accuracy: realizes closed-loop control of position, speed and torque; overcomes the problem of stepping motor out of step;
2. Rotating speed: high speed performance, general rated speed can reach 2000~3000 rpm;
Laser cutting head
Laser cutting head support RAYTOOLS /WSX /precitec optional ,auto focus and can cut tube and plate
Laser generator
The price does NOT include the generator JPT/RAYCUS /MAX/IPG optional 1kw-150kw
Control software on the screen
cypcut with FS3000 for metal sheet cutting .
Motor and servo in control box
YASKAWA /FUJI from Japan
S&A water chiller
The main function of the electric control cabinet air conditioner is to maintain the constant temperature inside the cabinet. Especially for areas that are too hot or too cold, it can extend the life of electrical components in the cabinet and ensure the normal working of electrical components.
AUTO oiling system
The function of the automatic oil pump is mainly to perform regular quantitative oiling on the easily wearable guide rail, ball screw, and rack gear. It is by the digital controller to control the lubrication pump working cycle; lubrication time and intermittent time.

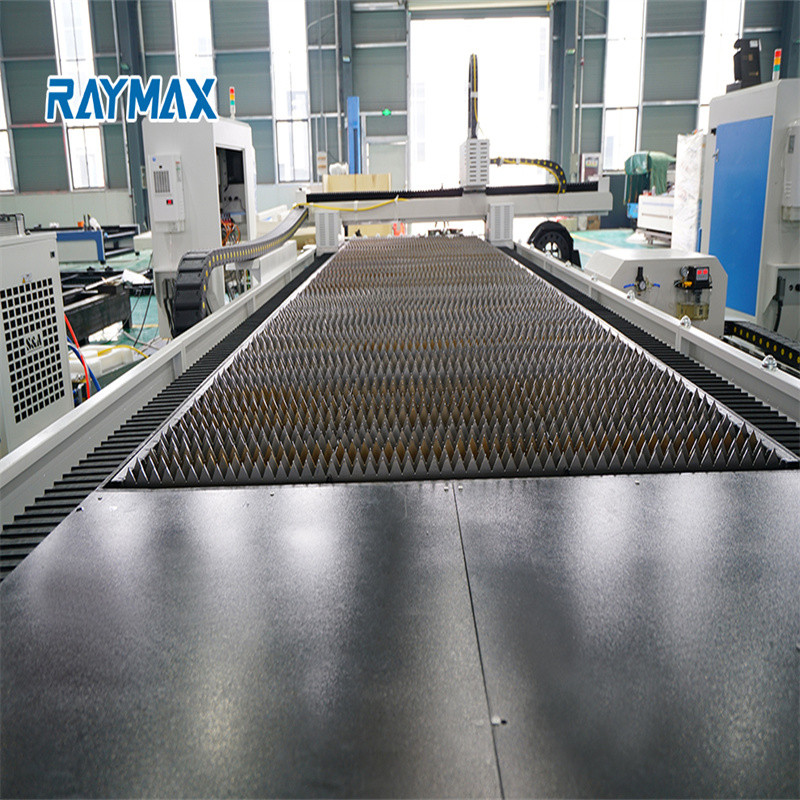

Sawtooth Table
The steel serrated table can withstand heavier work pieces and has only a small area to touch the workpiece when cutting, maximizing the melting of the table surface by the heat of the laser. The tabletop is encrypted and detachable, which is convenient to move and increase the bearing capacity.
Feeding roll
The machine comes with a feeding roll. The feeding roll will help the worker feed the material easily.
Application
Applicable materials for laser cutting machine for metal
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet,Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet,Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
Application Industries
Fiber Laser Cutting Machine is widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters,Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & CabinetsProcessing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts,Nameplates, etc
Cutting ability
specially used in cutting 0.5~14mm carbon steel,0.5~10mm stainless steel,galvanized platelectro-Galvanized Steel,silicon steel,0.5~3mm aluminium alloy,0.5~2mm brass and red copper etc thin metal sheet (The laser brandcan be customized, power optional from 1000w-6000w )
What industries can laser cutting machine apply?
It is used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, Metro accessories, automobile, grain machinery, textile machinery, engineering machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal processing, kitchen utensils processing and other manufacturing and processing industries.
Product Parameters
| Machine Model | 3015(4015/6015/4020/Optional) | |
| Power of Generator | 1000-20000W | |
| Working Area | 1500*3000mm(Other size can be customized) | |
| Specified Voltage And Frequency | 380V 50/60HZ | |
| Control System | Cypcut Control System | |
| Motor | YASKAWA motor, Japan | |
| Laser Source | Max (Raycus IPG optional) | |
| Guide rail | Taiwan PMI Square Guide Rails | |
| Gear reducer | France MOTOVARIO | |
| X.Y axis location accuracy | ±0.01mm | |
| X.Y axis repeat location accuracy | ±0.01mm | |
| X.Y axis max moving speed | 120m/min | |
| Cutting thickness | Detailed in the following cutting thickness | |
| Application Material | plate /sheet metalwork Iron/Carbon Steel /Stainless Steel /Aluminum/ Copper and all kinds metal | |
Our Service
1. Quality Control
Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure. All finished machine we delivered are 100% strictly tested by our QC department and engineering department. We will provide detailed Machine pictures and Test videos to customers before delivery.
2. OEM Service
Customized and OEM orders are welcome due to our abundant experiences.All the OEM services are free, customer only need to provide us with your logo drawing. function requirements, colors etc. No MOQ required.
3. Privacy
None of your personally identifiable information ( such as your name, address, email address, bank info, etc ) will be shared with any third parties. Contact All of your inquiries or questions or helps will be answered within 24 hours,even in holiday. Also,please feel free to call us if you have any emergency questions.
4. Payment terms
Alibaba Trade Assurance ( New,safe and popular payment terms) 30% T/T paid in advance as deposit, the balance paid before shipment. Other payment terms: LC PayPal,Western Union and so on.
5. Documents Support
All Documents for clearance customs support : Contract ,Packing list,Commercial Invoice,Export declaration and so on..
6. After Sales
We provide 3 year’s guarantee and life-long maintenance for our products. Free repairing or replacement (except for wearing parts) is available for our products for their functional defects (except for artificial or force majeure factors) within warranty period. After warranty period, we only charge artifacts according to the actual situation.
FAQ
1. Is there any damage to the cleaning material?
Depends on what type you need, the pulse type has a finer cleaning effect, and the continuous type has a faster cleaning speed, Relative damage of material, pulse type is less than continuous type.
2. Can I modify the pattern of optical fiber?
Yes, the laser beam supports a variety of settings, including circle, triangle and other patterns. You can contact us to get the cleaning video
3. Language interface
Most of our customers use English and language settings can also be set according to customer needs
4. I'm not sure what power to choose, what should I do?
Please take photos of the materials you need to clean and contact us,Our engineers will give you suggestions. You can choose the brand according to your needs
Details
- Application: LASER CUTTING
- Applicable Material: Metal
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 1500mm*3000mm
- Cutting Speed: 1--60m/min
- Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
- Cutting Thickness: Detailed in the following cutting thickness
- CNC or Not: Yes
- Cooling Mode: WATER COOLING
- Control Software: Cypcut
- Laser Source Brand: RAYCUS/MAX/IPG(optional)
- Laser Head Brand: Raytools
- Servo Motor Brand: Yaskawa
- Guiderail Brand: PMI
- Control System Brand: Cypcut
- Weight (KG): 4000 KG
- Key Selling Points: Automatic
- Optical Lens Brand: II-VI
- Warranty: 2 years
- Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Mode of Operation: continuous wave
- Configuration: gantry type
- Products handled: Sheet Metal
- Feature: Water-cooled
- Product name: Fiber Laser Metal Cutting Machine
- Type: Metal Plate Fiber laser cutting machine
- Laser power: 500w/750w/1000/1500/2200/3300/4000/6000/8000/12000
- Control system: Cypcut System
- Laser head: Raytools Cutting Head
- Working area: 1500mmX3000mm
- Driving system: Japan Yaskawa Servo Motor
- Working Voltage: 380V 3 PHASE 50hz/60hz
- Cooling system: Water Cooling System
- Application Material: Metal sheet Iron/CS/SS/Aluminum/Copper and all kinds metal
