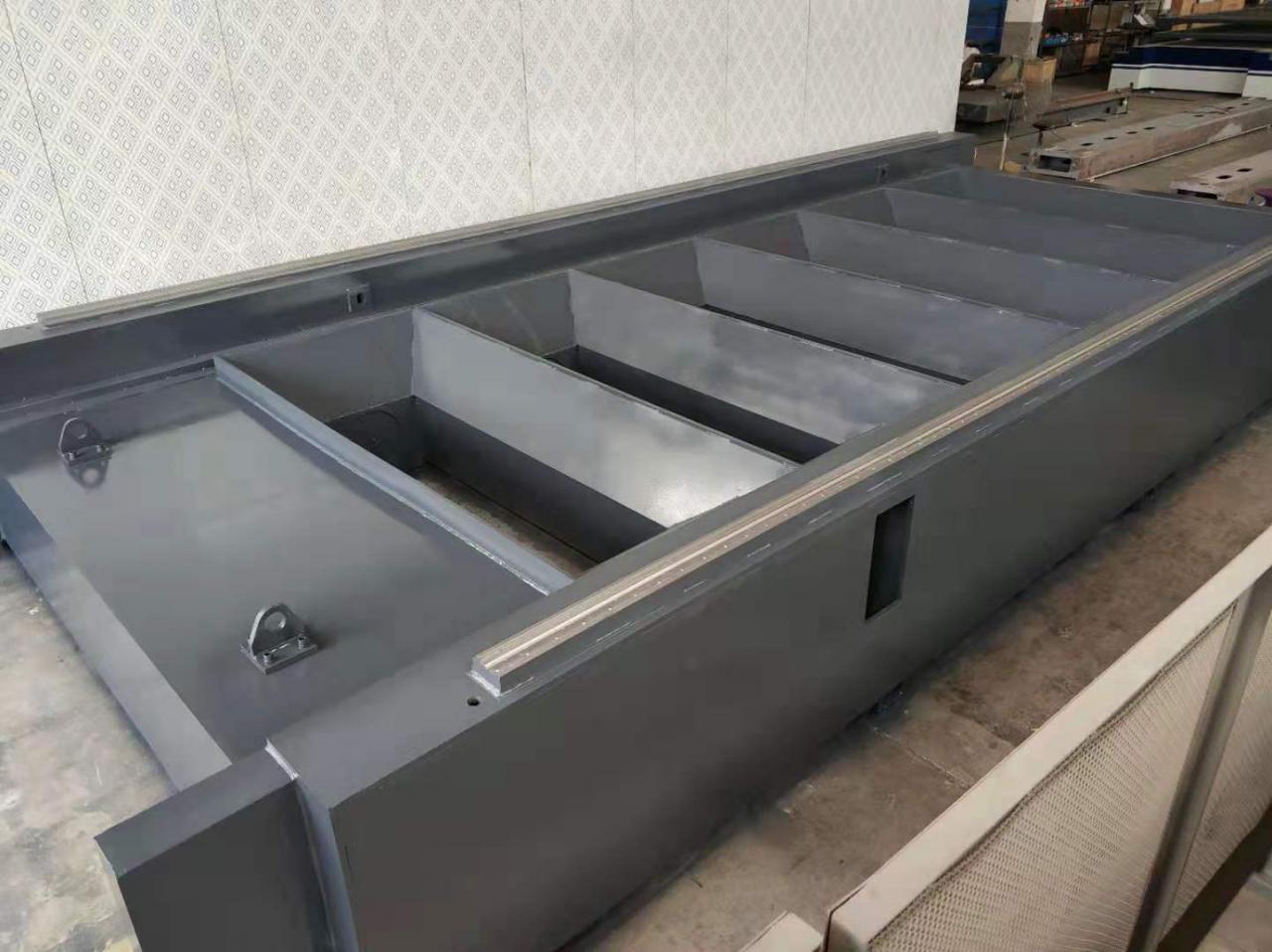

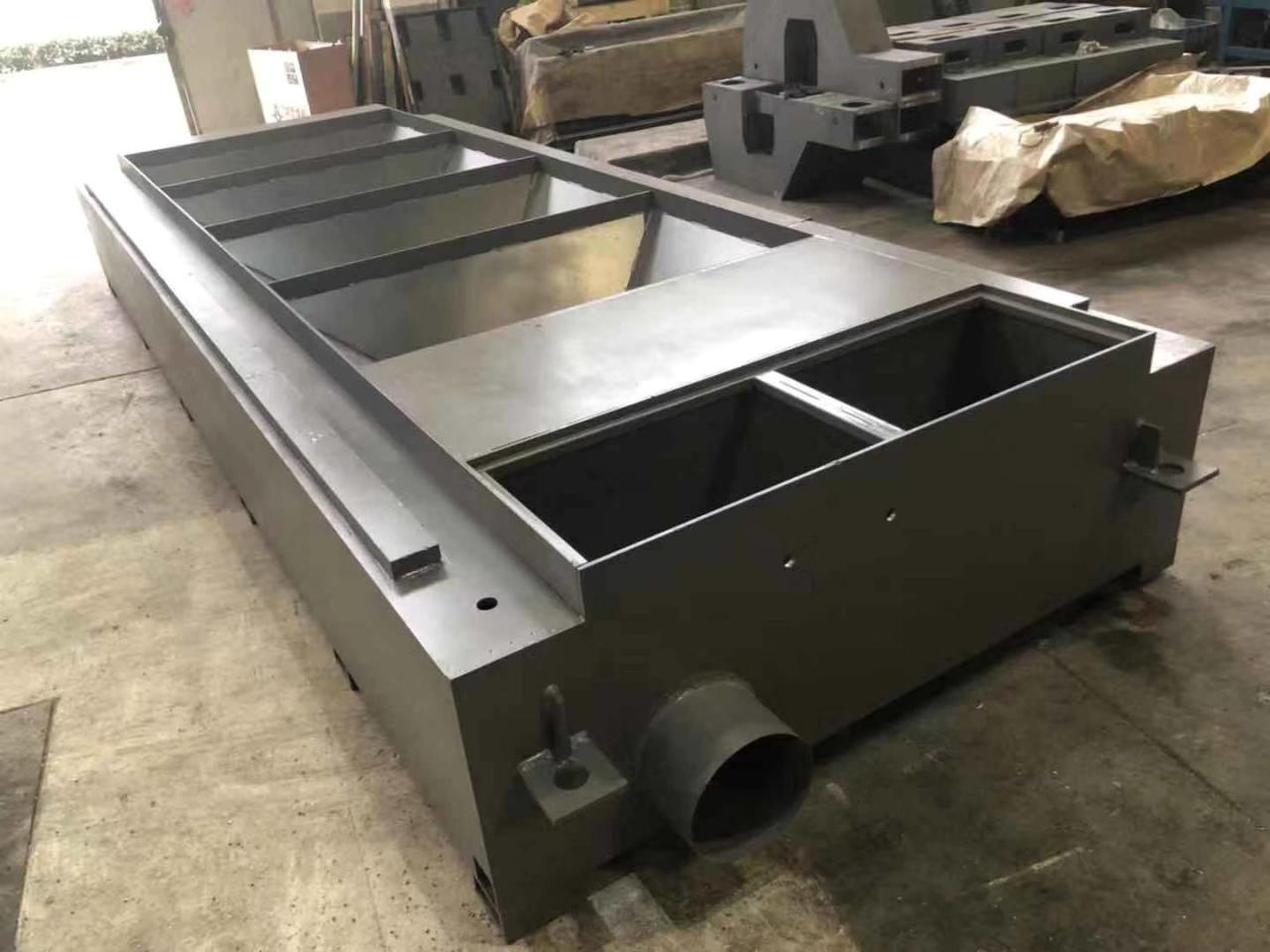

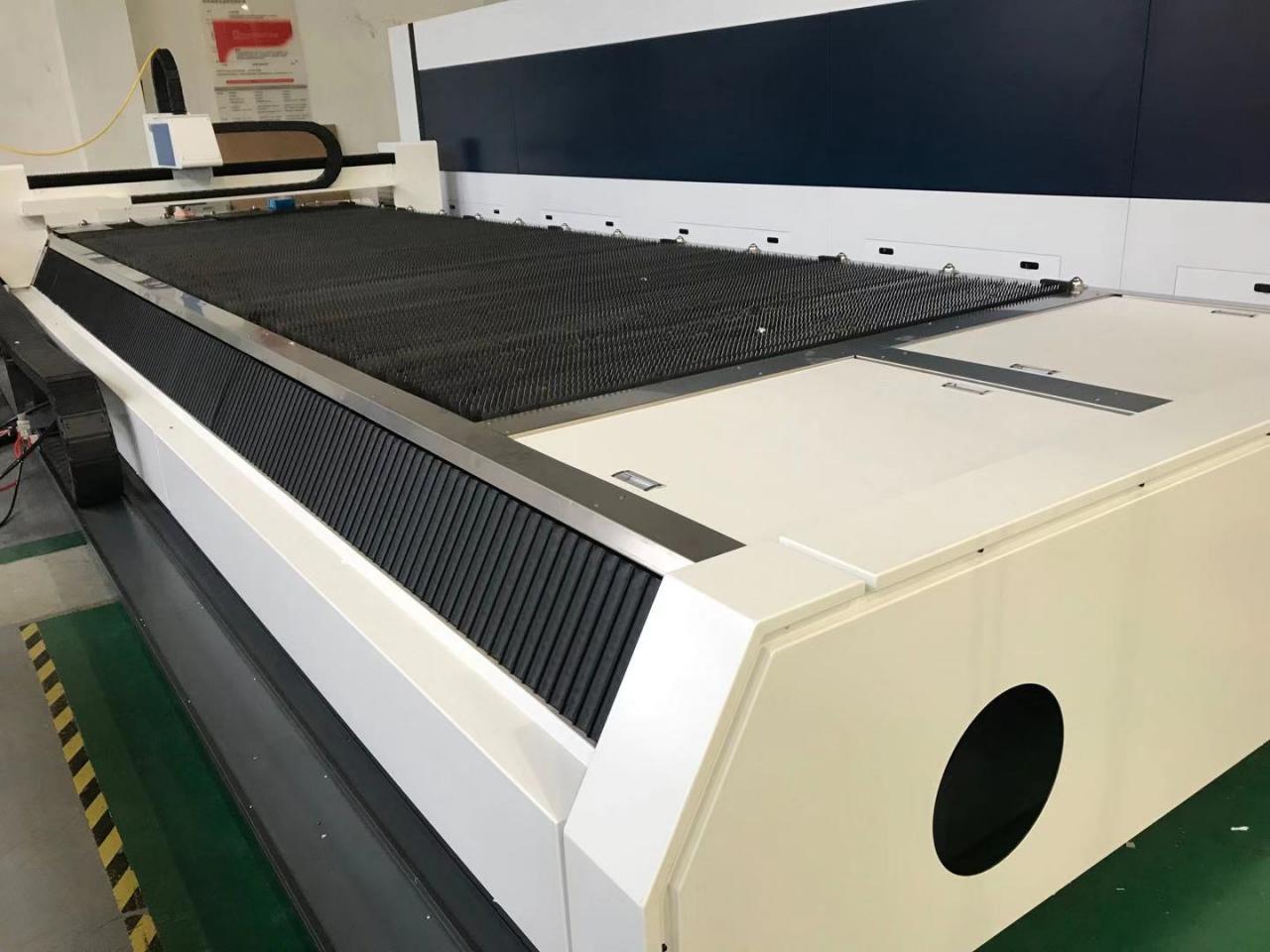

Laser cutting machine has many attractive featues, like fast speed, flying cutting, wireless control, famous controllers...etc, but all must be played on a robust table! Our rack is made of thick plates welded together one by one , so the ruggedness and stability of the rack are better. Much better than the usual pipe welding rack.
| Type | JLM3015 | JLM4015 | JLM4020 | JLM6015 | JLM6020 |
| Max Cutting Size(mm) | 3000*1500 | 4000*1500 | 4000*2000 | 6000*1500 | 6000*2000 |
| Max Height of The Workpiece(mm) | 90 | 90 | 90 | 90 | 90 |
| The Laser Power(W) | 1000/1500/2000/3000/4000/6000 | ||||
| Level of Protection | IP54 | ||||
| Effective Travel | 3050 | 4050 | 4050 | 6050 | 6050 |
| 1550 | 1550 | 2050 | 1550 | 2050 | |
| 100 | 100 | 100 | 100 | 100 | |
| Positional Accuracy | ±0.04 | ±0.05 | ±0.04 | ±0.05 | ±0.05 |
| ±0.04 | ±0.04 | ±0.04 | ±0.05 | ±0.05 | |
| ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | |
| Repid Positioning Speed | 78 | 78 | 78 | 78 | 78 |
| 78 | 78 | 78 | 78 | 78 | |
| 48 | 48 | 48 | 48 | 48 | |
Guide rail structure: The lower shaft adopts dual-drive structure, linear guide and rack pair inclined installation, the stress state is more reasonable, the movement is more stable.The structure between the guide rail and the rack is tight,so accuracy between guide rail and rack is adjusted by pressing block to ensure more stable operation of the machine.

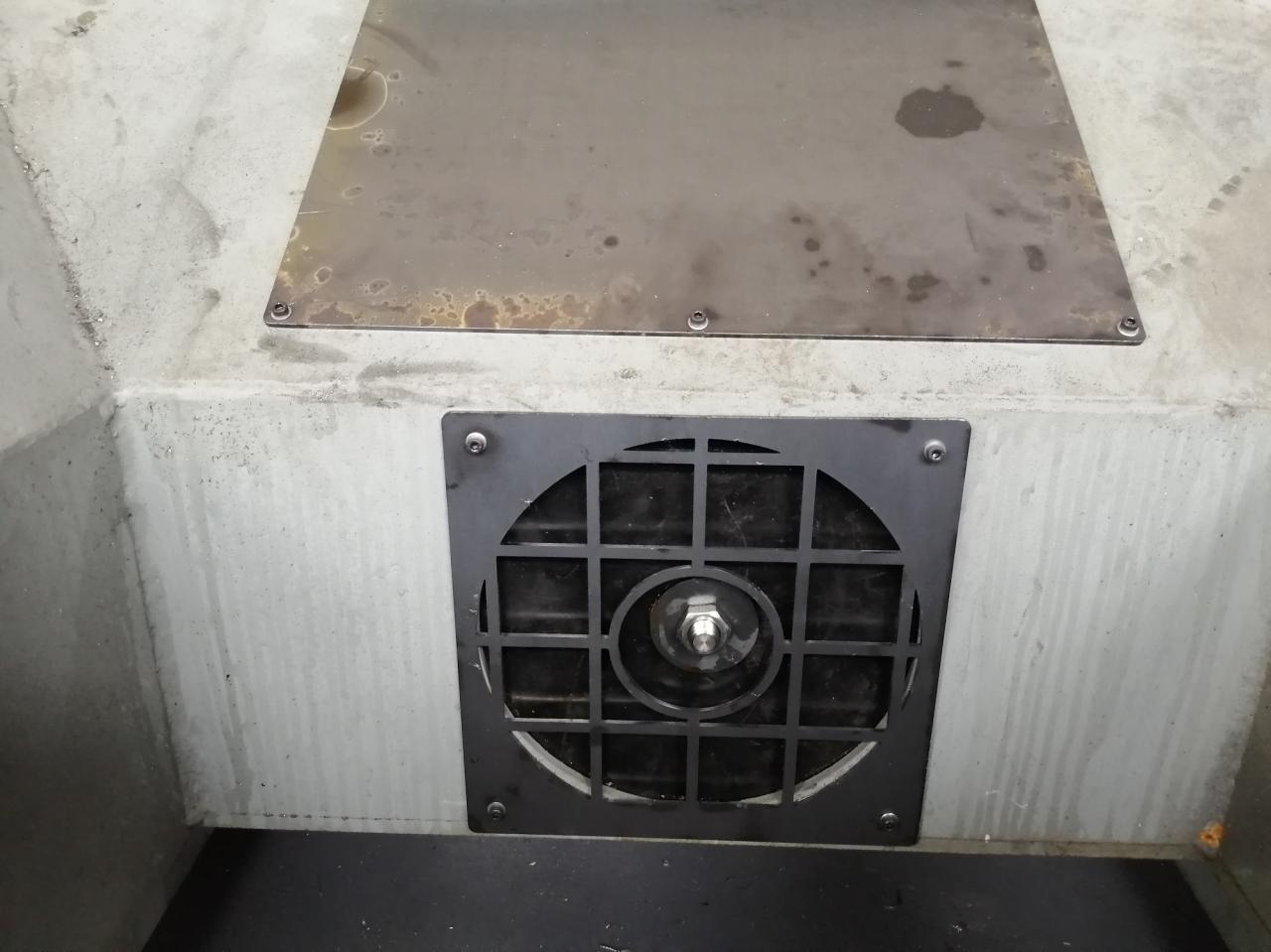

Dust control damper: The dust removal air door moves independently to achieve the highest dust removal efficiency.The dust damper works independently with the movement of the beam, Under the condition of certain power of dust removal machine, ensure the dust removal effect to reach the best

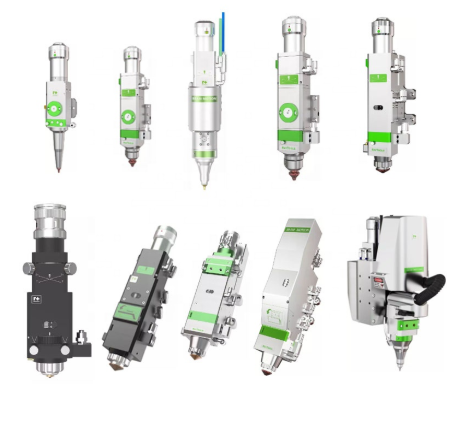

Laser cutting head: We use the international first-class cutting head brand, Germany Precitec laser cutting head recognized to be the most excellent laser cuttinghead, the cutting ability and quality are more applied to meet the different customer requirement RAYMAX laser recommender the customer the eficient solution to reach the best cut quality.

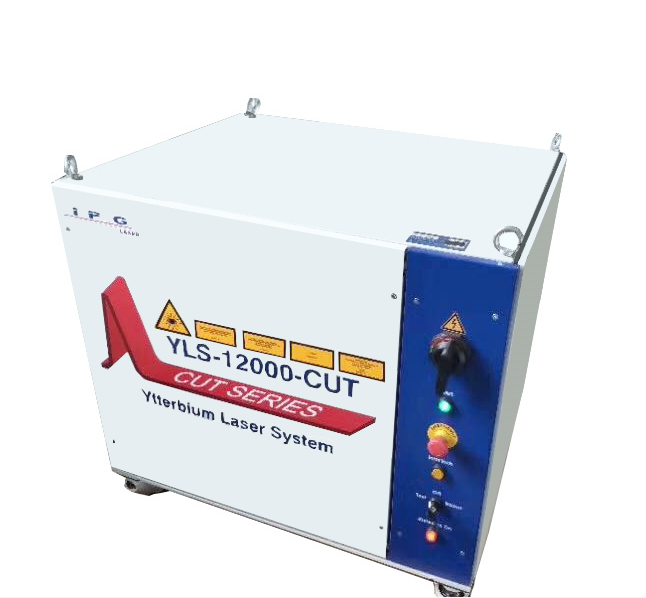

Fiber laser: The laser used by our company is a well-known brand in the industry, which can be widely used in cutting, welding and precision manufacturing of different materials.For example, IPG, Raycus laser, are the best quality, to ensure that customers use the effect of good and long time.
After-sales service
After the customer buys the machine, if there are any technical problems and machine failure problems, our company will send
specialized after-sales personnel to the customer company for maintenance services. Solve customer problem as soon as possible, make customer use efficiency highest

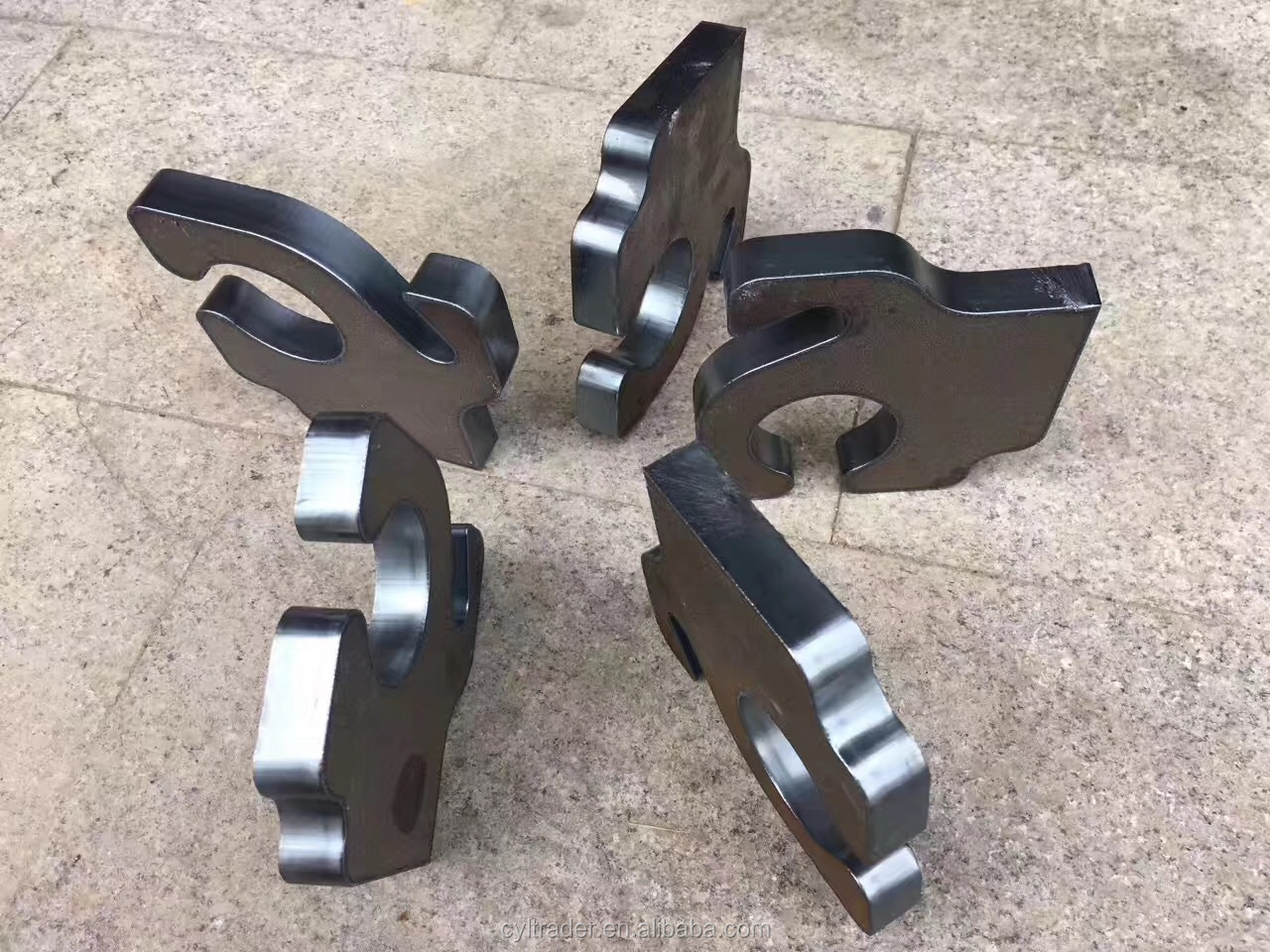

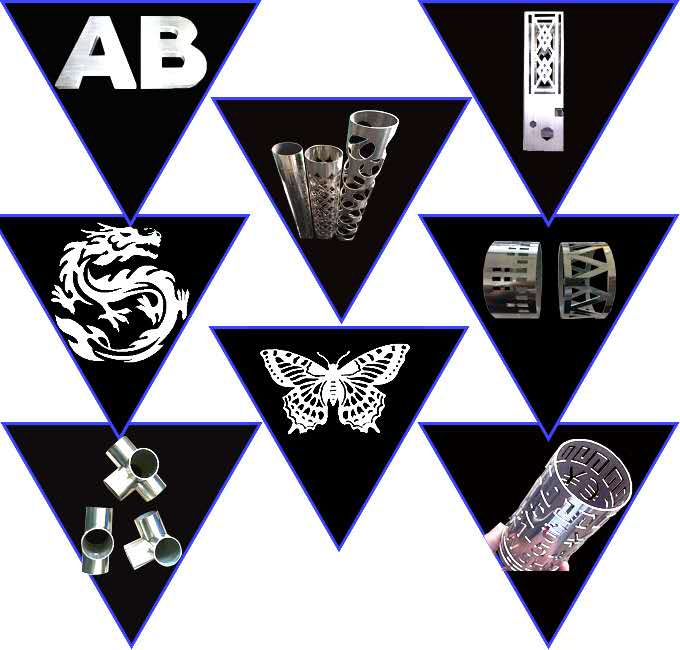

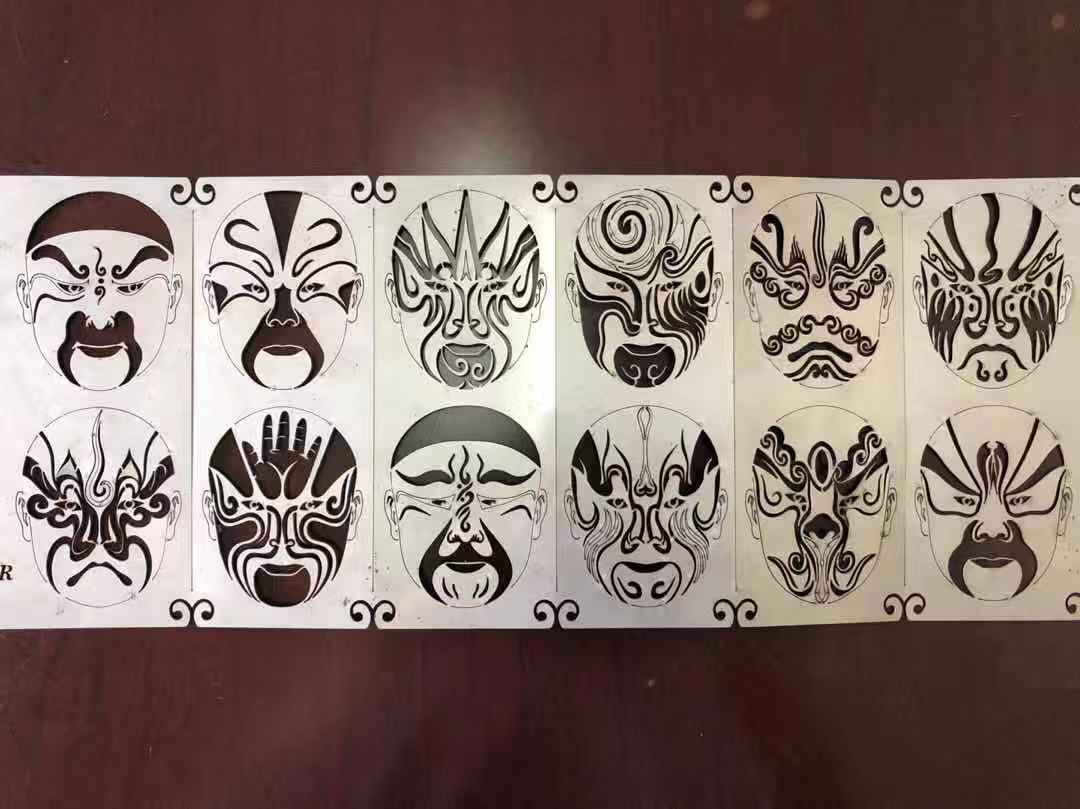

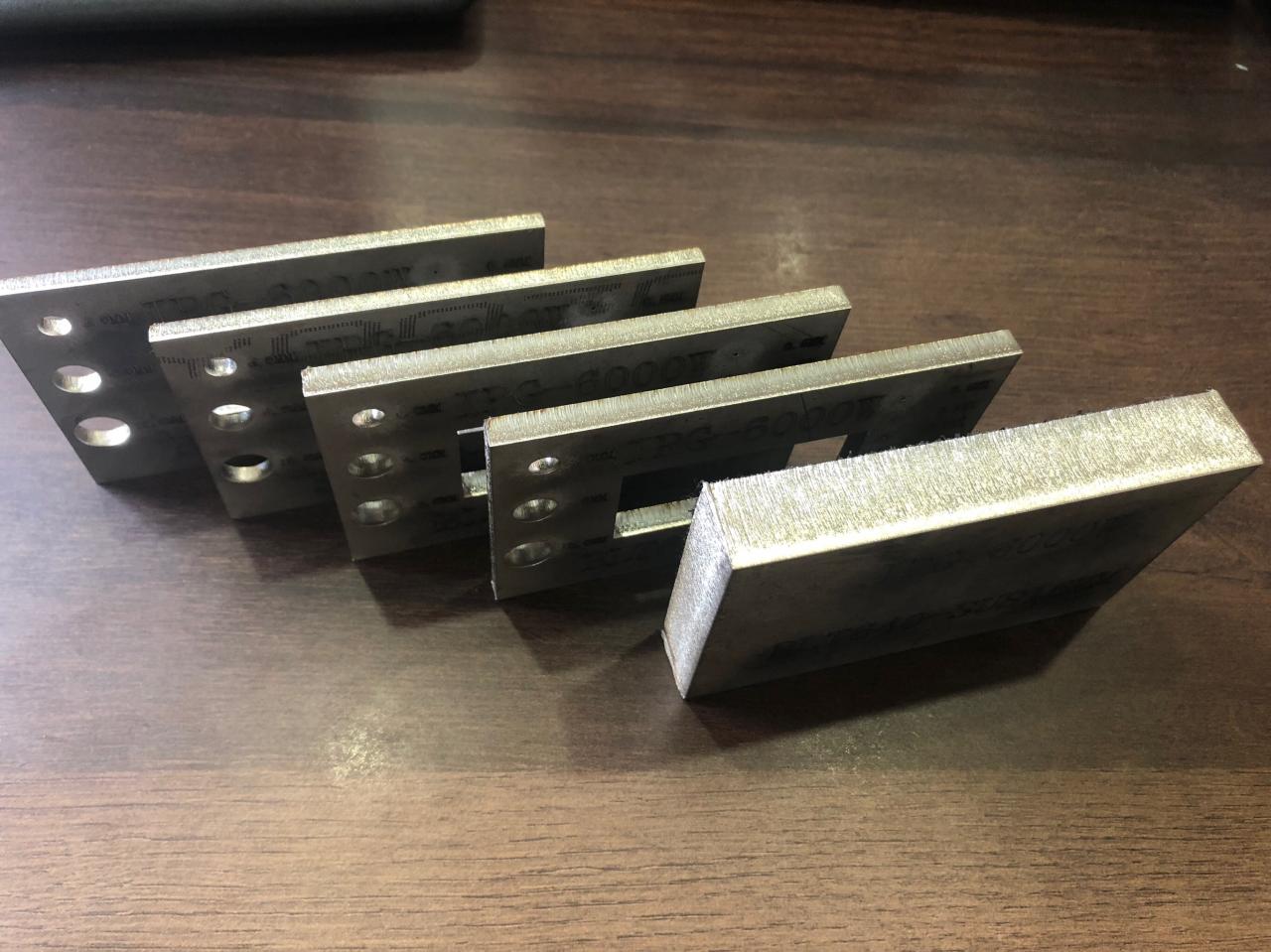

Cutting samples
FAQ
Q1: Why your machine price is higher, we have much cheaper offer from Jinan factories?
RAYMAX machine feature is robust table design like Europen brand machine with complete plate-welded structure, and heaviest in China. You will check it out by real shipping weight! We always try to make high level machines that few factories can copy,because we have experienced engineers which are limited source in this field. So if you don’t have much cutting work, our machineis not cost-effective to you.
Q2: Can you produce the machine faster ?
As we need the machine urgently, High level machine is not simply assemble parts together and deliver it to customer. We don’t dofast production. Long-termmachine stability depends on strict quality control. Inspection and testing work needs enough time ifyou wish to get long-time stable work machine. We mainly rely on old customers recommend our machines to others to expandbusiness. The machines we produced are best advertisement for us.
Q3: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions
andsuggestions.
Q4: How can I choose the most suitable machine ?
Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking?What kind of materials
mainly?Cutting/engraving, Max thickness for cutting?How big working area you need?
Q5: When I got this machine, but I don’t know how to use it. What should I do?
We will send an English manual with the equipment, and arrange a colleague to connect and install it with you alone. If you
haveany questions, we can also arrange for a maintenance person to come to commission and install it.
Q6: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life
longafter-sales service. So any doubts, just let us know, we will give you solutions.
Q7: How can I get some samples?
We are honored to offer you samples.
Details
- Application: LASER CUTTING
- Applicable Material: Metal
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 1500mm*3000mm
- Cutting Speed: 140m/min
- Graphic Format Supported: AI, PLT, DXF, BMP, DXP
- Cutting Thickness: 20mm
- CNC or Not: Yes
- Cooling Mode: WATER COOLING
- Control Software: cypcut
- Place of Origin: China
- Laser Source Brand: RAYCUS
- Laser Head Brand: Precitec
- Servo Motor Brand: Yaskawa
- Guiderail Brand: Rexroth
- Control System Brand: Cypcut
- Weight (KG): 4800 KG
- Key Selling Points: Automatic
- Optical Lens Brand: Might
- Warranty: 2 years
- Applicable Industries: Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Printing Shops, Construction works , Food & Beverage Shops
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 3 years
- Core Components: laser source

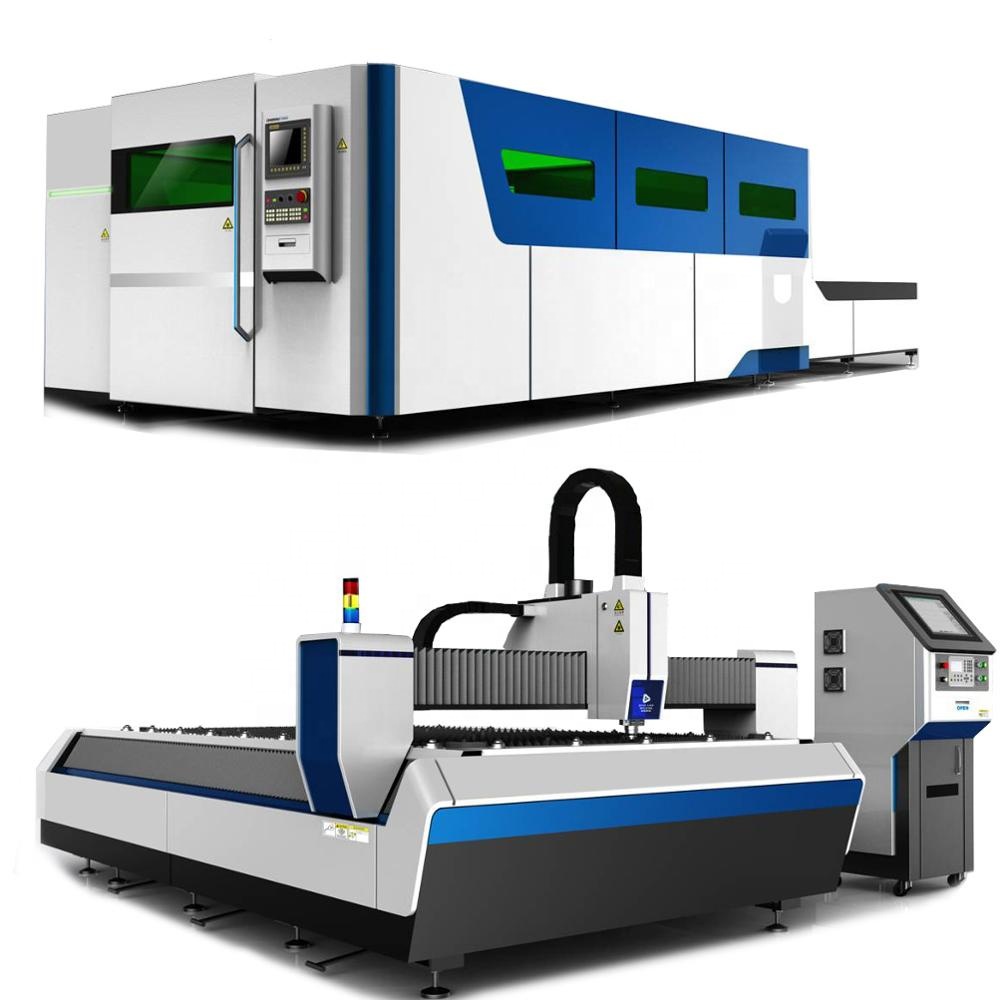

- Product name: Fiber Laser Metal Cutting Machine
- Model: JLM
- Certification: ce, ISO
- After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
- After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
