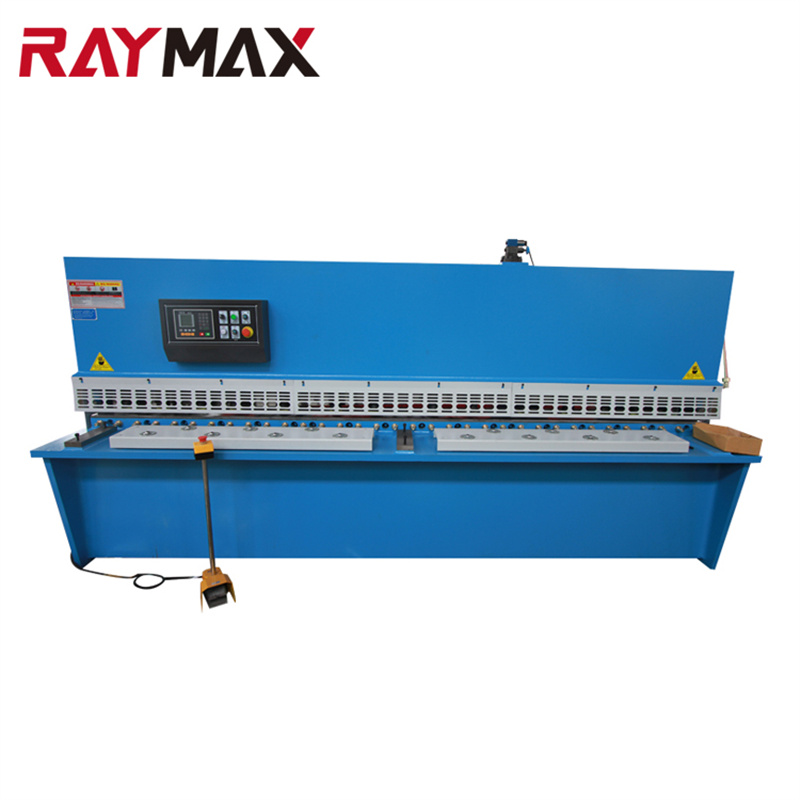

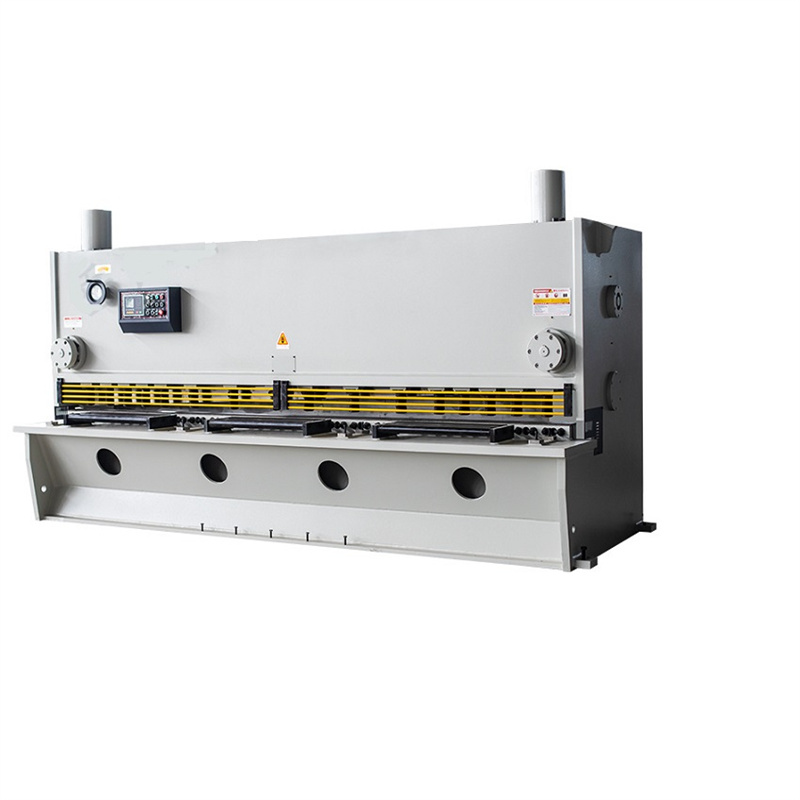

CNC Hydraulic Guillotine | QC11K 10 12 16 mm 3200 4000mm Metal Guillotine Shear CNC Guillotine Shearing Machine
* Streamlined design originated from EU, the kind of machine tool consists of rack, cutter holder, oil cylinder, hydraulic controller,backgauge and other components. Finite-element analysis of main parts, welding parts uses tempering, vibration and other processing methods to eliminate stress ensuring the structural strength and rigidity of the rack and components;
* Cutter holder use three-point support rolling guide rail, reducing the friction to the greatest extent and realizing seamless rolling during cutter holder moving.
* Leftmost front holder configured with verticality regulator and front positioning device, easy operation and high efficiency;
* Simple and effective adjusting mechanism is used to rearrange blade clearance via CNC system, improving the cutting quality.
* Fine ball screw and bar structure, good-performance frequency converter is used to positioning X axis to ensure accuracy, unique designed timing transmission-mechanism, stable and reliable.
* Light and shadow line is conductive to manual scribing for cutting; stable and reliable hydraulic transmission, integrated hydraulic system is able to significantly alleviate problems causing by hydraulic fluid leakage.
* Made by high-quality alloy tool steel capable enough to against impact load and high wear resistance when cutting.
* With reference to ergonomic design, easy CNC system surface, improving the operation precision and comfort; rolling ball worktable to reduce friction and prevent work piece from scratching; novel and practical safety guard device, line with safety specification, protect the personal safety; delicate design, petty work piece can be done easily by hand.

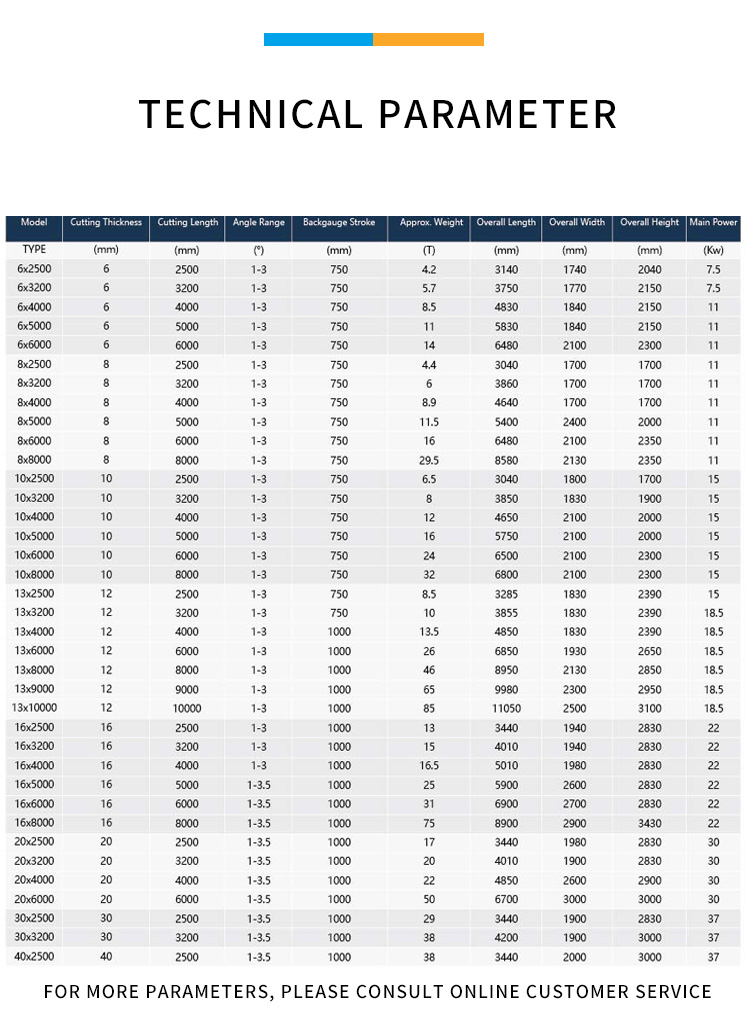

| Hydraulicswing beam shear | shearing thickness | shearing length | cutting angel | materail strength | stopper adjust rangge | stroke times | main power |
| 4 | 2500 | 1°30' | ≤450 | 20-500 | 16 | 5.5 | |
| 4 | 3200 | 1°30' | ≤450 | 20-500 | 13 | 5.5 | |
| 6 | 4000 | 1°30' | ≤450 | 20-600 | 9 | 7.5 | |
| 6 | 6000 | 1°30' | ≤450 | 20-800 | 5 | 11 | |
| 8 | 3200 | 1°30' | ≤450 | 20-500 | 8 | 7.5 | |
| 12 | 3200 | 2° | ≤450 | 20-600 | 10 | 18.5 | |
| 16 | 2500 | 2°30' | ≤450 | 20-600 | 10 | 18.5 | |
| 16 | 4000 | 2°30' | ≤450 | 20-800 | 10 | 18.5 | |
| 20 | 3200 | 3° | ≤450 | 20-800 | 8 | 22 |
| Main Configuration | |

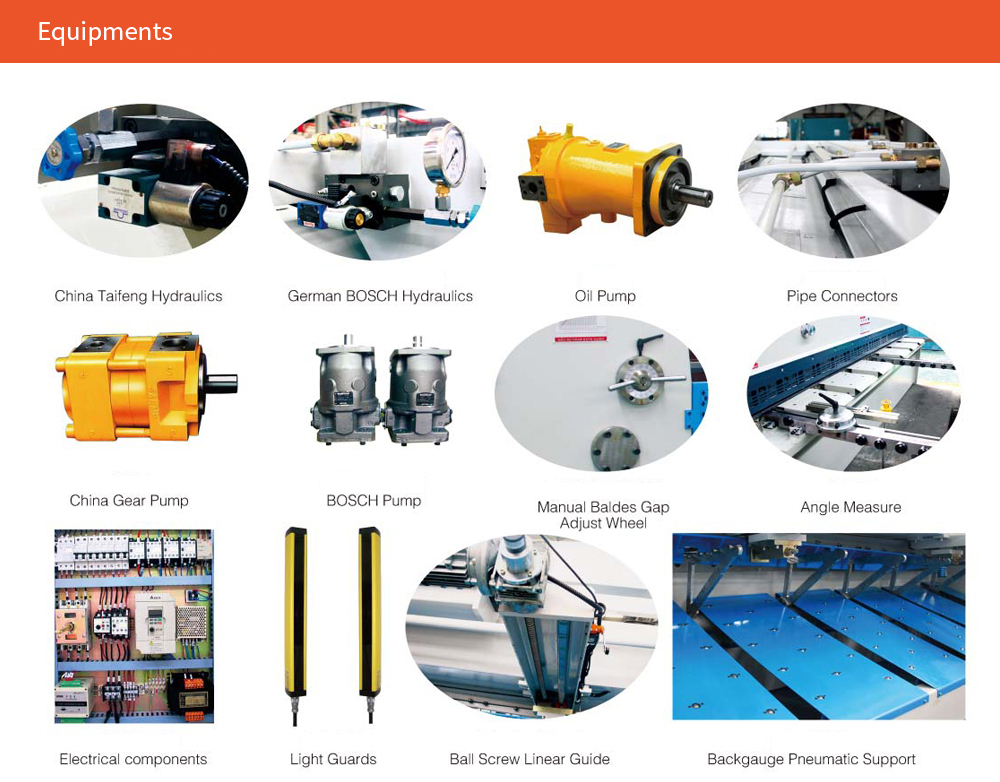

| Main motor | Siemens, Germany |
| Electrics | Schneider, France |
| Hydraulic valve | Rexroth, Germany |
| Oil Pump | Sunny, U.S.A |

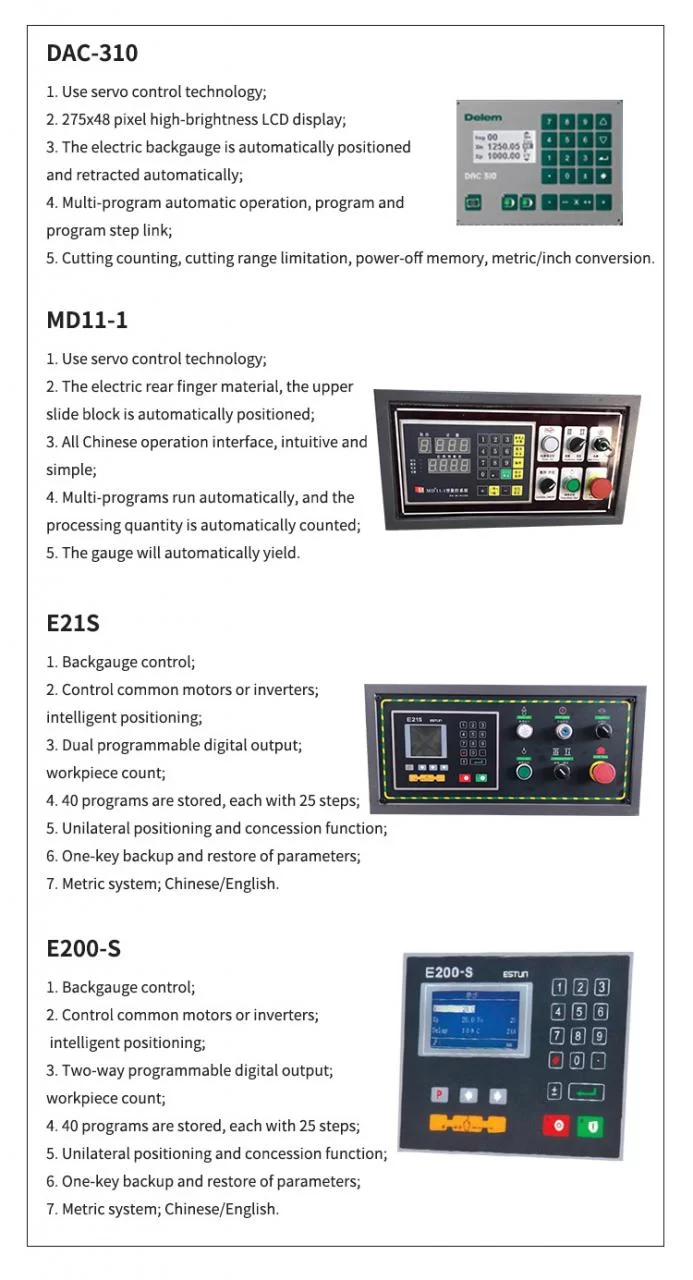

| Controller | E21s ESTUN, MD11 |
| Foot switch | Karcon, South Korea |
Details
- Max. Cutting Width (mm): 4000
- Max. Cutting Thickness (mm): 16 mm
- Automatic Level: Semi-automatic
- Shearing Angle: 1.5
- Blade Length (mm): 4000 mm
- Backgauge Travel (mm): 20 - 600 mm
- Throat Depth (mm): 100 mm
- Condition: New
- Power (kW): 11 kW
- Weight (KG): 4000 KG
- Place of Origin: China
- Voltage: 110v/220v/380v/440v customized, 110v/220v/380v optional
- Dimension(L*W*H): 2800*1600*1800mm
- Year: 2021
- Warranty: 2 years
- Key Selling Points: Competitive Price
- Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
- Showroom Location: None
- Marketing Type: New Product 2021
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Other, Engine, Gearbox
- Product name: Hydraulic Cnc shearing machine
- CNC Control system: E21/MD11
- Application: Stainless Plate cutting
- Machine Type: 3200mm shearing machine for sheet plate
- Raw Material: Q235A hydraulic shearing machine
- Keyword: Hydraulic shears
- Usage: Metal Sheet cutting
- Type: MS Steel Plate cutting Machine
- Main Motor: 5.5kw
