Product Description
DA53T Controller System :
1. Quick, one page programming;
2. Hotkey navigation;
3. 7" widescreen colour TFT;
4. Up to 4 axes (Y1, Y2, and 2 auxiliary axes);
5. Workbench deflection compensation control;
6. USB peripheral interface;
7. Advanced Y-axis control algorithm, which can control both closed-loop and open-loop valves;
8. Panel mounting structure, optional suspension box.
9. Full touch screen. Customized Molds:

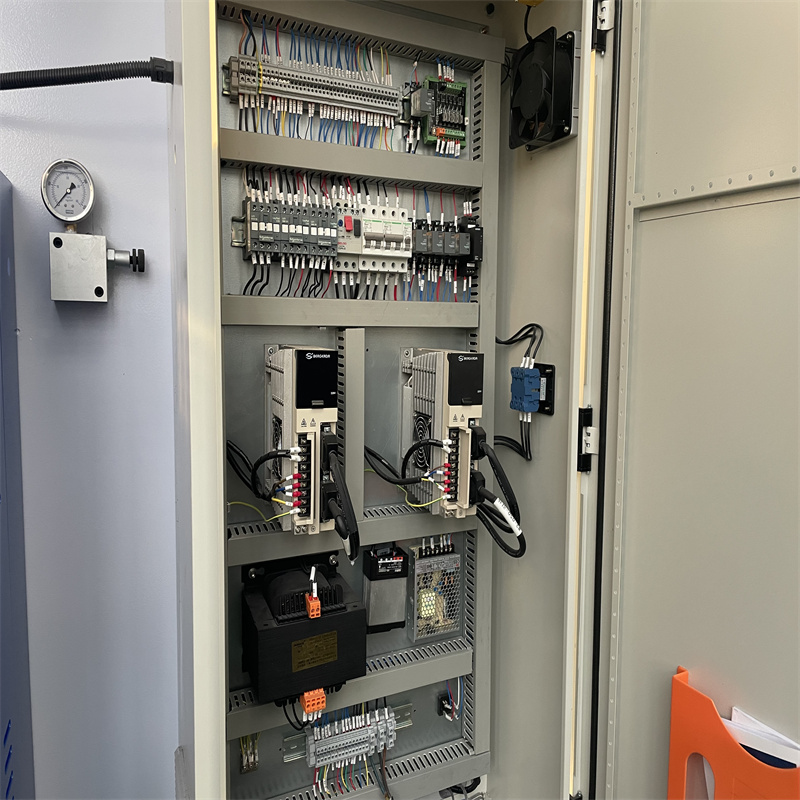

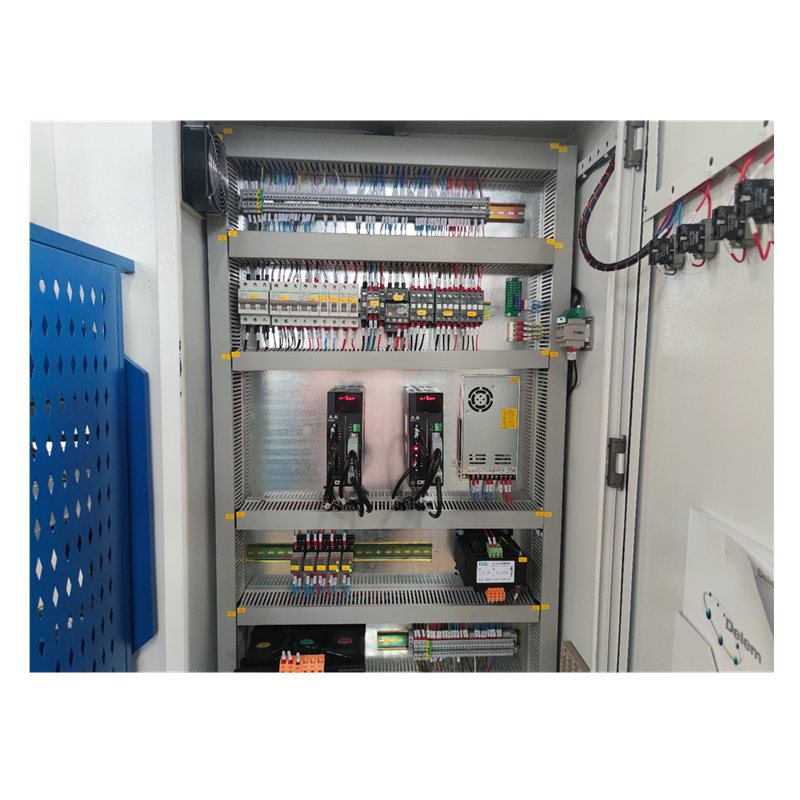

electric parts use Schneider brand, France Machine back gauge cnc stopper
Grating ruler by Italy GIVI brand the main motor by Siemens brand from Germany Standard Equipment:
1. 4 1- axis Delem DA53T touch screem programming mode CNC control.
2. Full synchronisation of Y1 Y2 axes with proportional hydraulic valve system and constant monitoring by CNC system to /-0.01mm accuracy

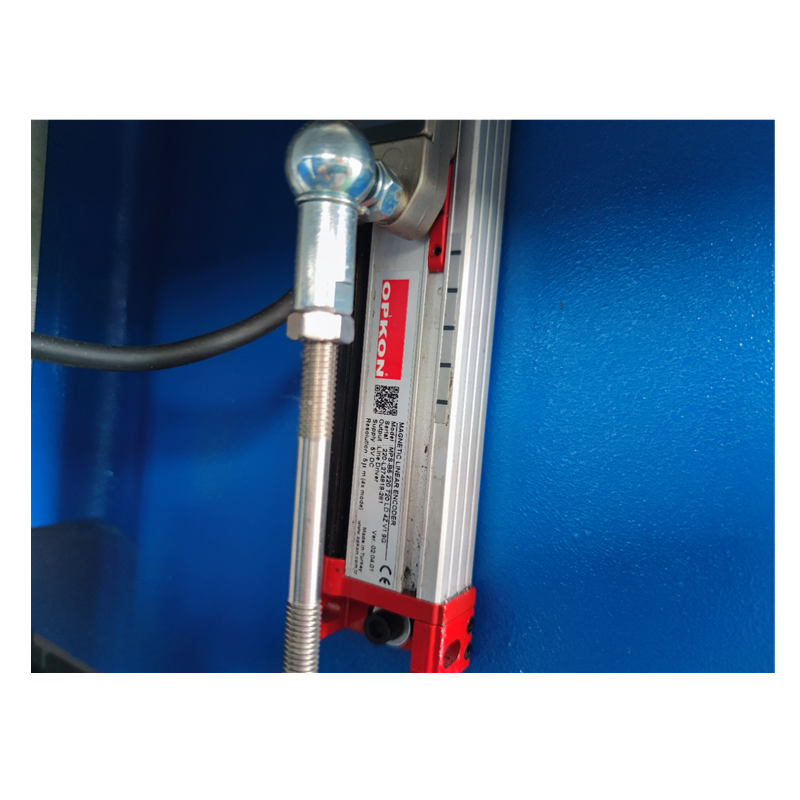

3. High precision linear scales for measurement of stroke depth mounted on side frames rather than top beam to prevent any distortion in accuracy as beam comes under load

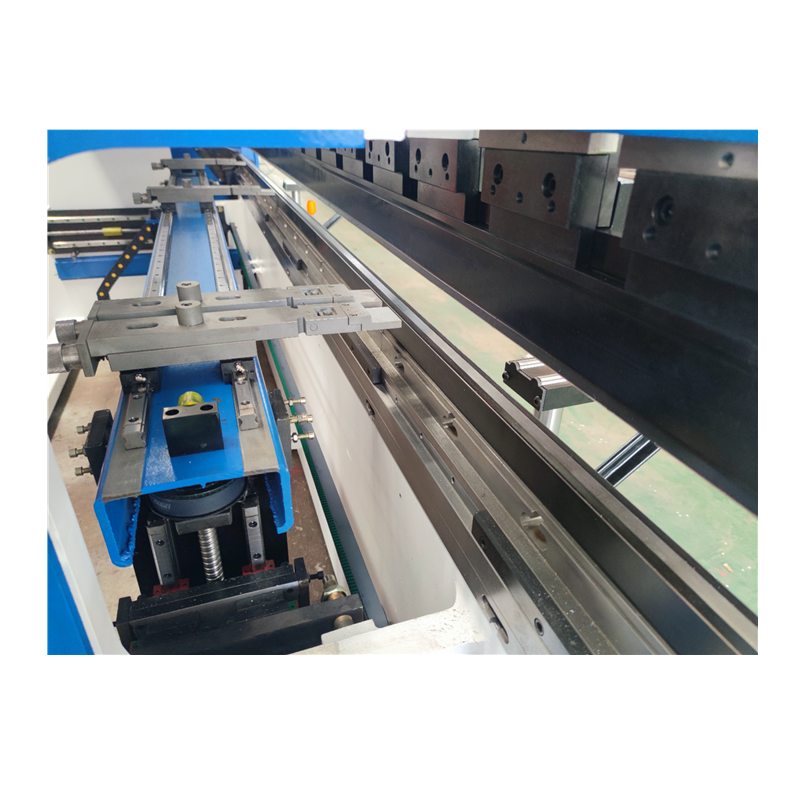

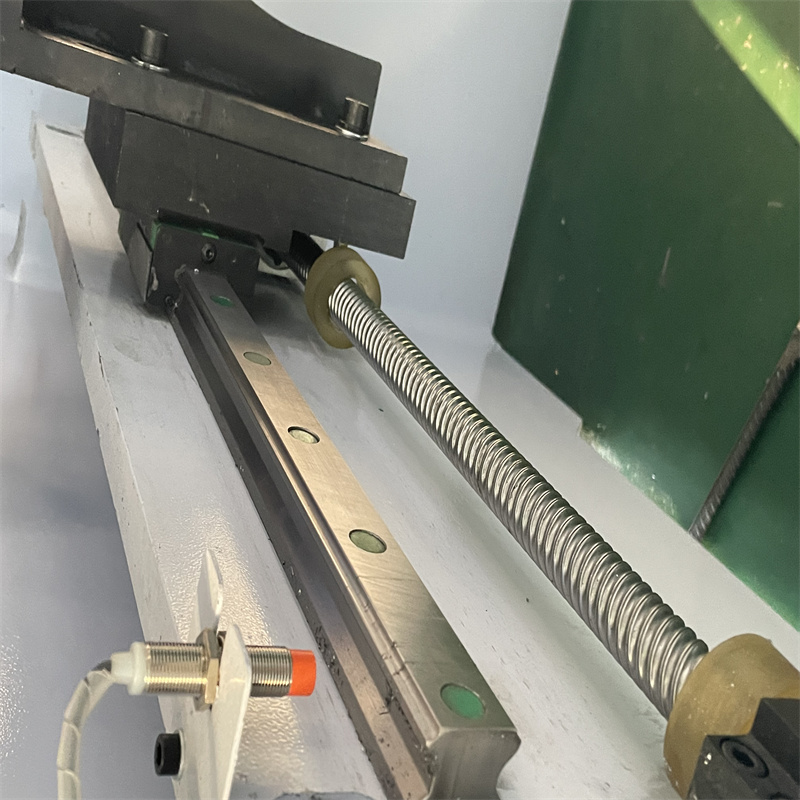

4. CNC-controlled X & R-axis as standard ballscrew backgauge with servo drive motors.
5. Light guards
6. Two micrometric backgauge finger-stops with lateral adjustment
7. Steel mono-block construction
8. Polished chrome plated and ground cylinders
9. Long stroke and large open height dimensions
10. High approach and return speeds for production bending.

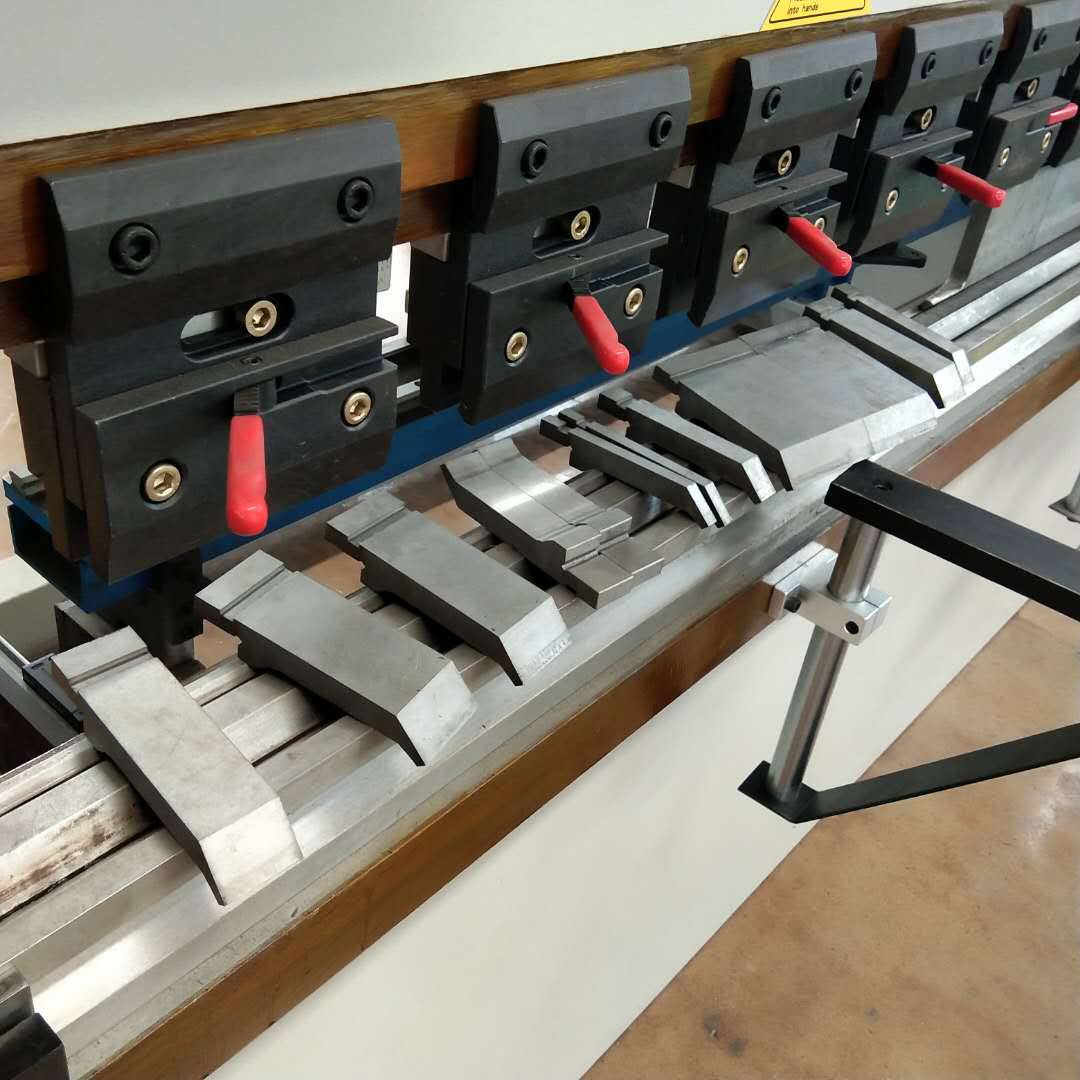

11. Euro style quick release top tool holders with intermediaries including wedges for crowning

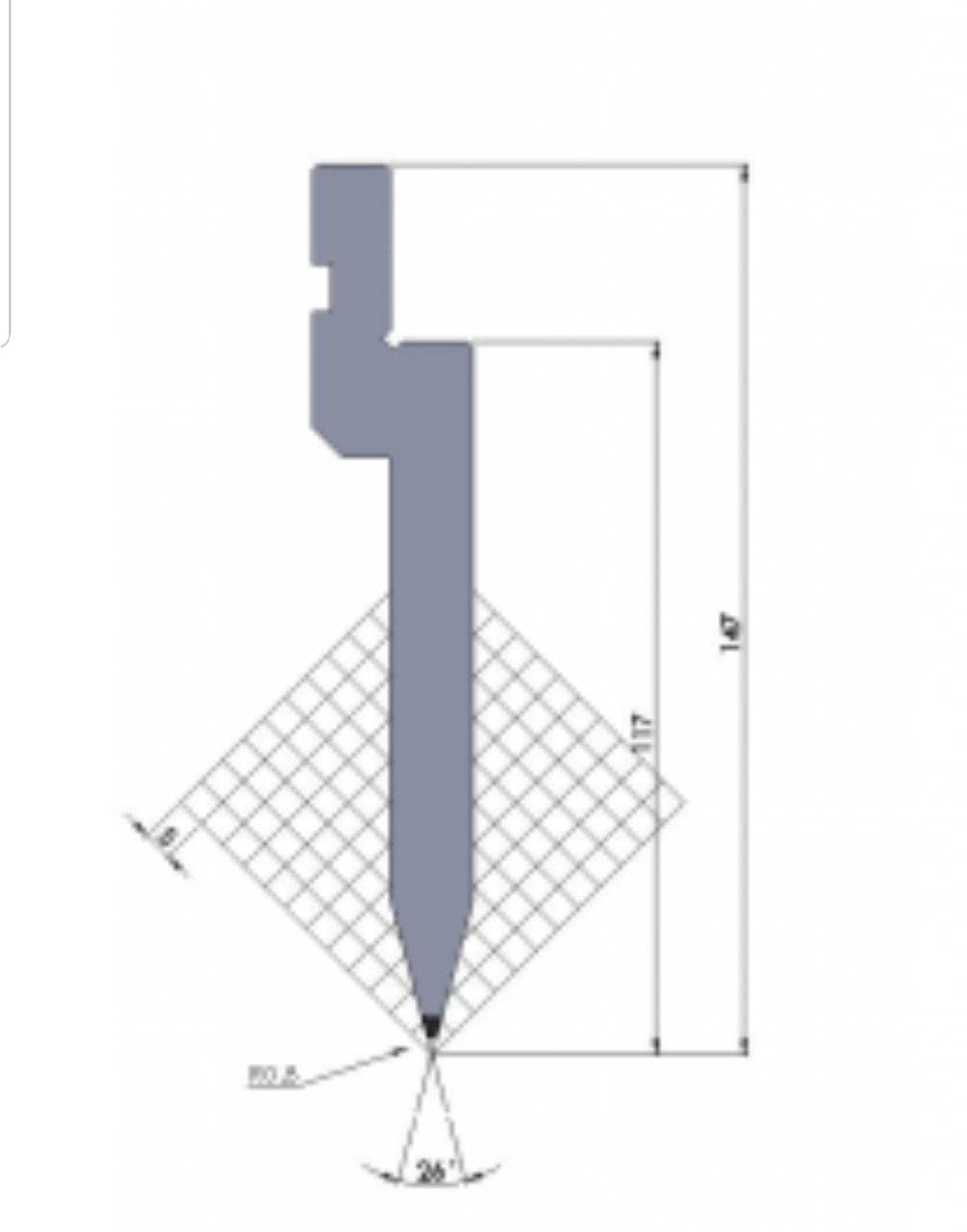

12. 88 degree sectionalised goose neck top tool

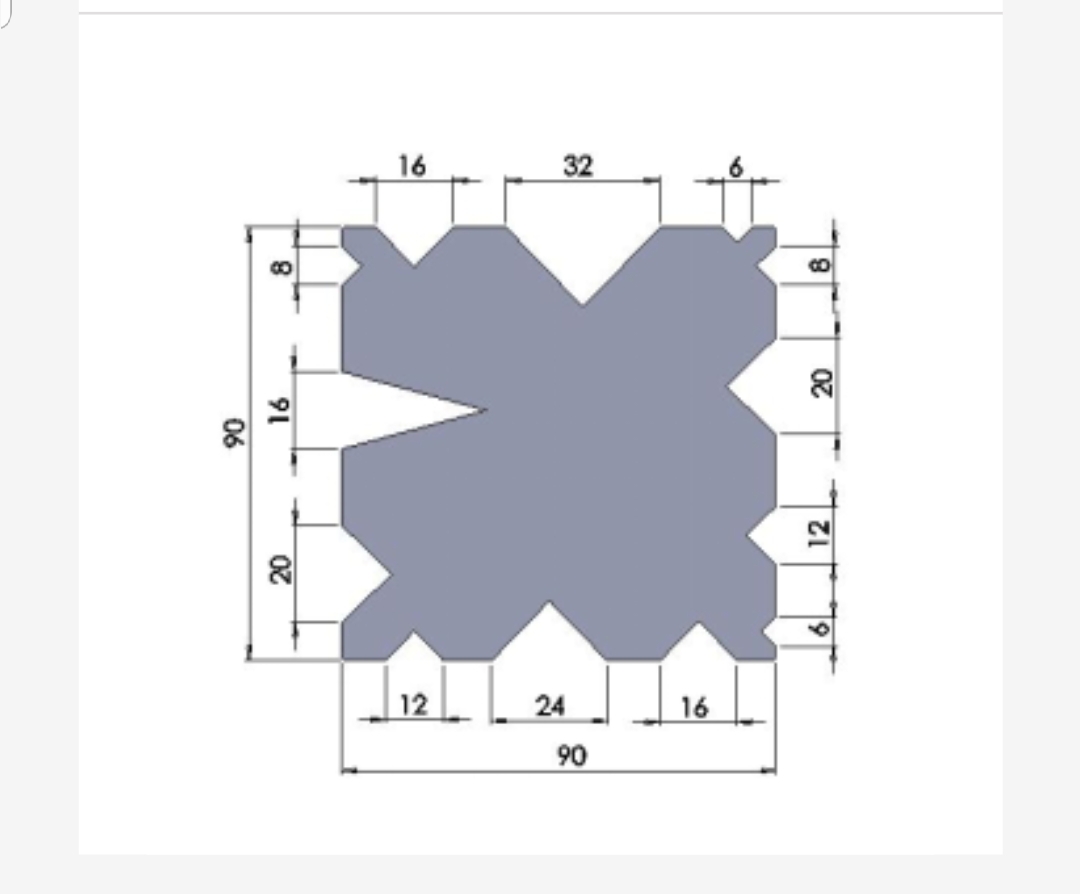

13. 4 way sectionalised multi vee bottom tool
14. Double footswitch control and pendant type control arm.
15. AKAS laser tooling guards
16. Electrically interlocked side guards
17. Electrically interlocked read access door
18. 2 sliding front support arms with linear guide rails for lateral adjustment and hand wheel for height adjustment, 1000mm long from centre of bottom tool vee.
19. Side guard is standard meeting CE regulations.
Size Information hydraulic press brake
| Model | Nominal Pressure | Bending Length | Bending Thickness | Bending Material |
| WE67K-130T/3200 | 1300 KN | 3200 mm | 50 mm | Carbon or Stainless |
| Vertical Distance | Depth of Throat | Slider Travel | Max. Open Height | Main Power |
| 2700 mm | 400 mm | 200 mm | 420 mm | 7.515 kw |
| Crowing Cylinders | Control Axes | X Axis Travel | X Axis Speed | Overall Dimension |
| 3 | 3 1 | 500 mm | 200 mm/s | 3500*1700*2600 mm |
| Weight (T): 8 | ||||
| ★ Our press brake can be customized by your requirements including parameters and colors. | ||||
| ★Press Brake Tonnage(T)=Bending Length(m)xBending Thickness(mm)xSteel Plate Density(Carbon:8 Stainless:16) | ||||

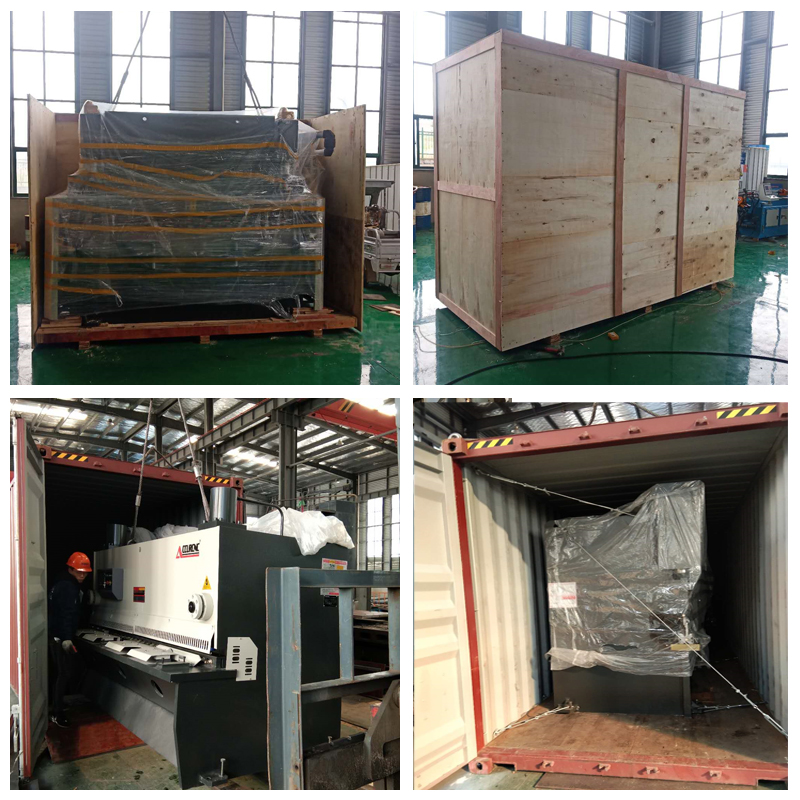

Packing&Shipping
There two kinds of ways: LCL is for small press brake, FCL is for big press brake.
※ LCL: Covered by plastic films, packed by wooden case.
※ FCL: Covered by plastic films, packed by a container.
☀Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
☂ After tested, the machines will be wrapped with plastic sheet ,machine will be securely wired to the container.
☂ Each Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal. At the dock we pack the goods in containers and ship them abroad.
Delivery Detail:
✈ Shipped in 30 days after payment.
Our Service:
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sale.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.
FAQ
1. Are you the manufacture? Can we visit your factory?
Of course, you can. We are manufacturer and we are located in Anhui,China. We have our own team for products design. Welcome to visit our factory and check our machine qualtiy, any question will be solved on time.
2.What's your main product? What is your main foreign market?
Our main products are press brake, shears machines, press, cutting machine, locking machine , auto duct line and related products. Our main foreign markets are Asia, North America, Europe, and Africa.
3. What are the advantages of your machines? And how can I believe the quality of your product?
The main configuration is import high quality products, and professional product quality inspection team ensures machine in top-quality, precision and life. For example, Germany Bosch-Rexroth Valve group,Germany Siemens MainMotor,Schneider Electrics system and so on. Once tested as qualified, our machine would be sent out. So The quality of our product is stable and reliable.
4. Are you able to update the production process Information in time after placing our order?
After confirming your order ,we would keep you updated of production details of emails and photos.
5. Can we be your agent?
Yes,we are looking for global agent, and we will help agent improve the market ,and supply all the service like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.
6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.
7. Are you provide product metal parts and provide us technical guidance?
Wearing parts, Disassembly tool (free) are what we could provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with professional technical guidance.
8. How long is your warranty?
2 years free warranty, life-long maintenance.
9. Do you accept customer Logo and customized ?
we accept kinds of customized , including logo and machine .
Details
- Slider Stroke (mm): 200 mm
- Automatic Level: Fully Automatic
- Throat Depth (mm): 400 mm
- Machine Type: Synchronized
- Length of Working Table (mm): 3200 mm
- Width of Working Table (mm): 300 mm
- Dimension: 3500x1700x2600mm
- Condition: New
- Place of Origin: Anhui, China
- Brand Name: AOXUANZG
- Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum, Metal Sheet Bending Machine
- Automation: Automatic
- Extra Services: End Forming
- Year: 2020
- Weight (KG): 15500
- Motor Power (kw): 7.5 kw
- Key Selling Points: Competitive Price
- Warranty: 2 years
- Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Metal Sheet Processing Machine
- Showroom Location: None
- Marketing Type: New Product 2020
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Main Parts of Metal Sheet Bending Machine
- Product Name: 130T 3200MM CNC Press Brake
- Model: WE67K-130T/3200 cnc press brake
- Control System: DA52S/DA53T/CT8/DA66T/Optional
- Voltage: 220V/380V/415V/440V/customized
- Application: Metal Sheet Bending Processing Machine 250T 3200MM CNC Press Brake
- Main Motor: Siemens, Germany

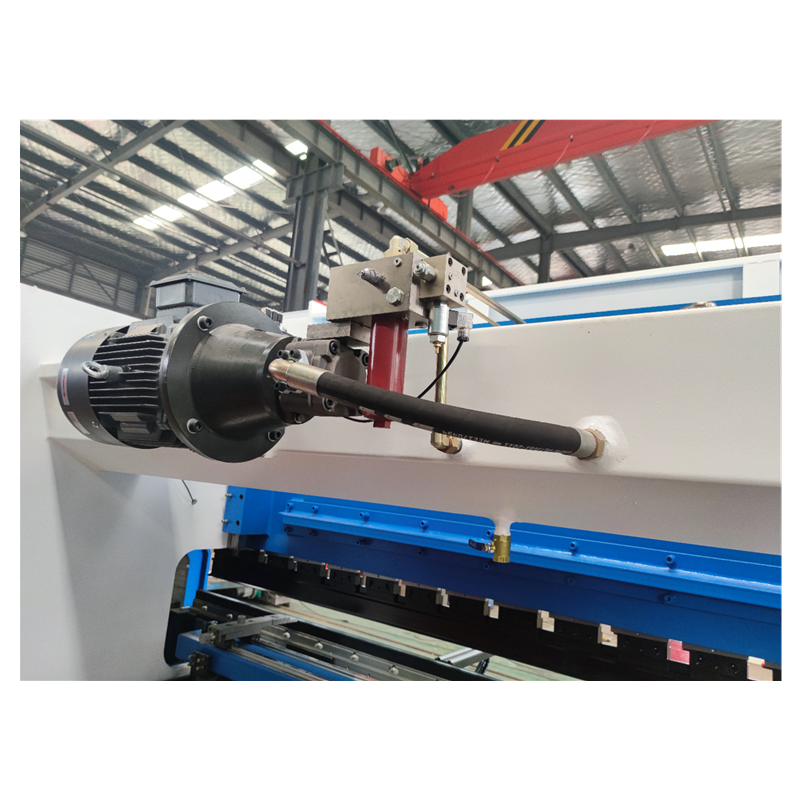

- Valves Group: Rexroth, Germany
- Oil Pump: Sunny, the US brand
- Servo Motor/ Servo Drive: TUKE, Nanjing China cnc press brake
- After-sales Service Provided: Free spare parts
