Products Description
PB series press brake features a rigid frame for minimum deflection under the load. The frame steels are German origin, ultrasonic controlled & ST-44 material. Machine welding is made by welding aparatus & welding robots. After the welding, we make stress relief process by vibration system. After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy,. All reference surfaces and connection holes are machined. By all this processes machine frame sensivity is protected for a long life time.

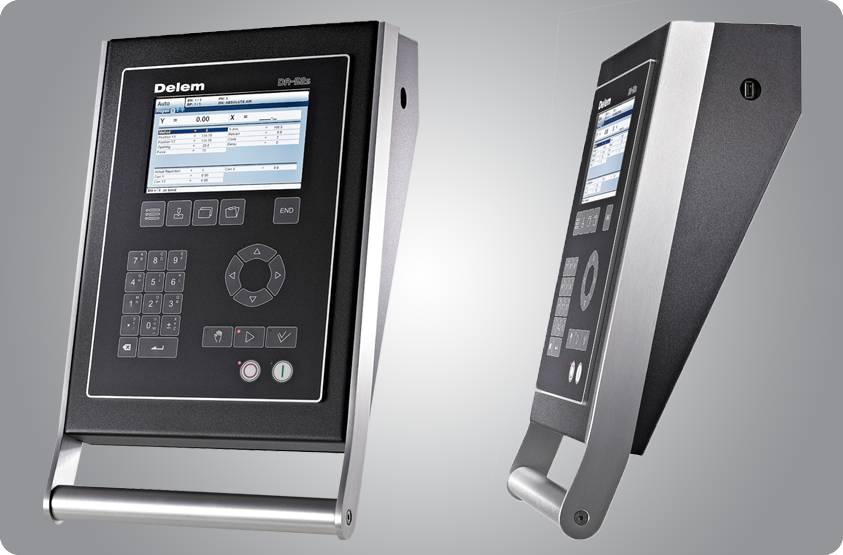

CNC control system
1. Quick, one page programming
2. Hotkey navigation
3. 7" widescreen color TFT
4. Up to 4 axes (Y1, Y2, and 2 auxiliary axes)

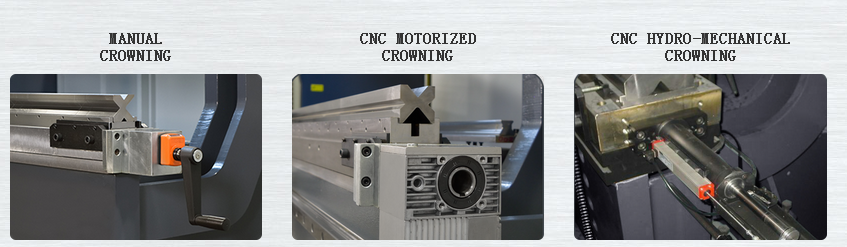

5. Crowning control
6. Tool/material/product library
7. USB, peripheral interfacing
8. Advanced Y-axis control algorithms for closed
9. loop as well as open loop valves10.Panel based controller with optional housing
Details Images

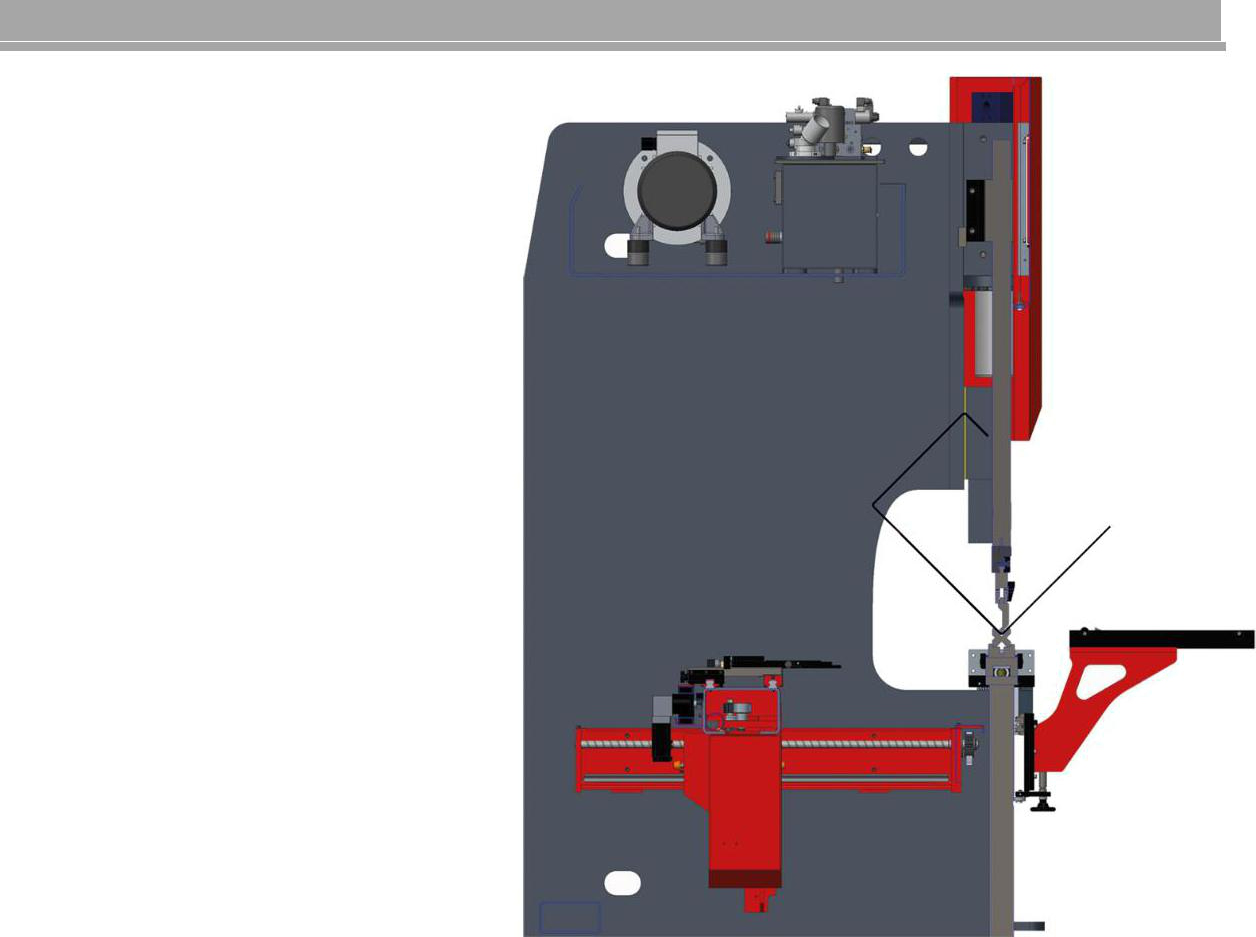

Side Looking:
The large openings and strokes of the WC67K Series facilitate the versatile production of parts requiring increased clearance to profitably and easily produce. This includes but is not limited to the production of deep sectioned four sided boxes. This provides for more clearance when bending parts with larger flanges. In some cases this allows the buyer to purchase a smaller overall bend length press brake, a cost savings, as this large clearance allows large flange bending on the overall bend length dimensions of the machine.

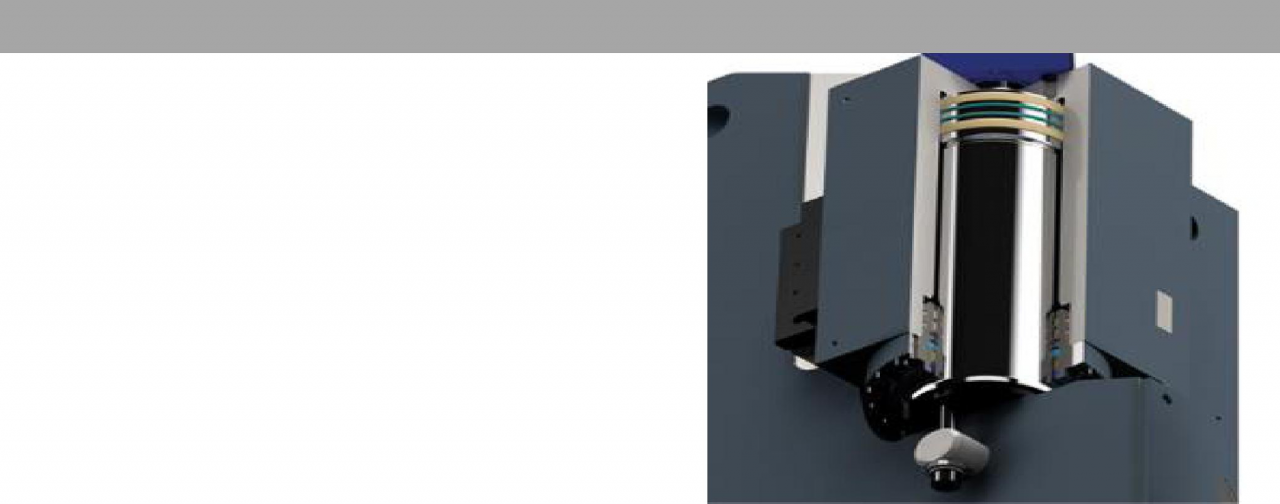

MACHINE CYLINDERS
In order to allow tilting of the ram without damage,because we use spherical connections.
This type of connection also allows peak forces to be absorbed gently.

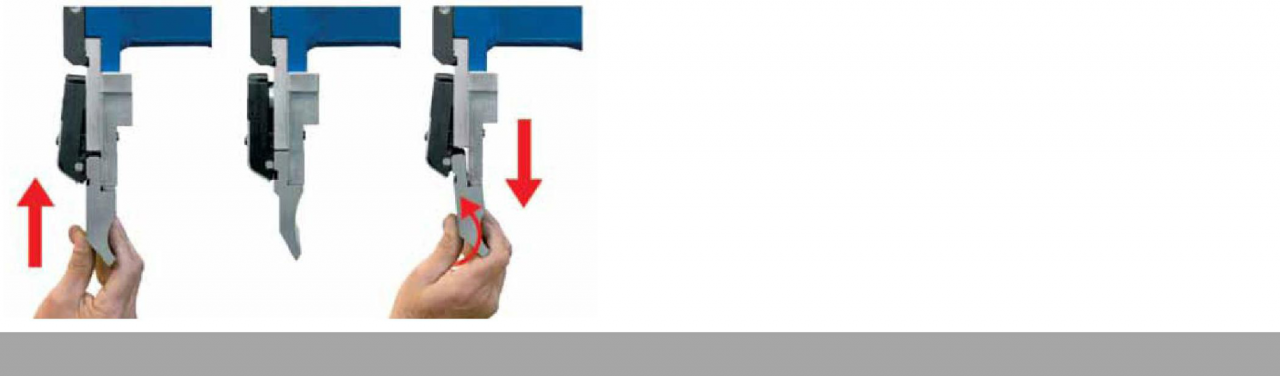

SPEED GRIP SYSTEM
The speed grip system reduces the time spent changing tools by 8.5 times compared with traditional systems.

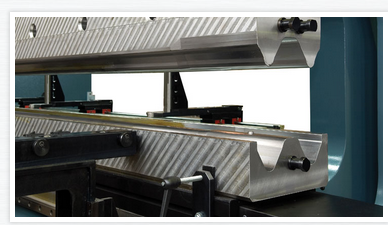

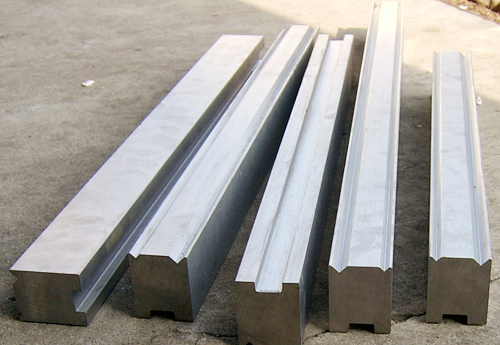

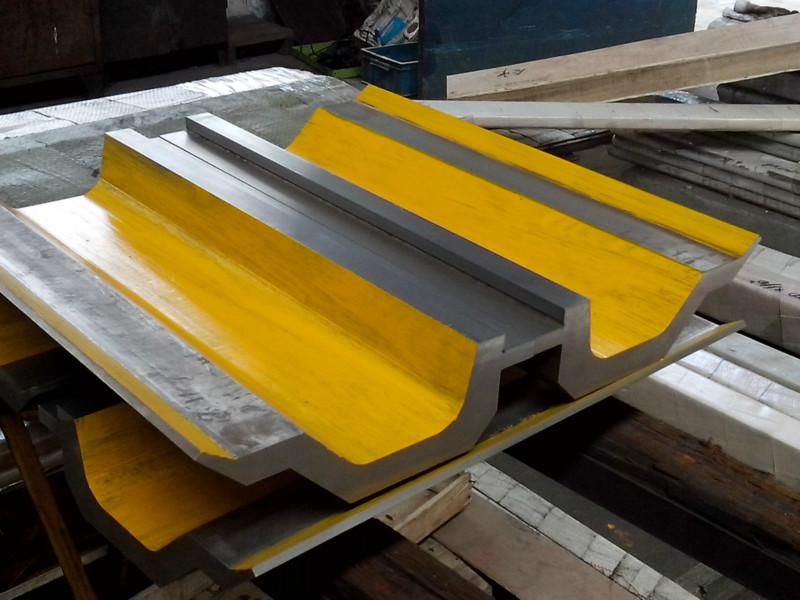

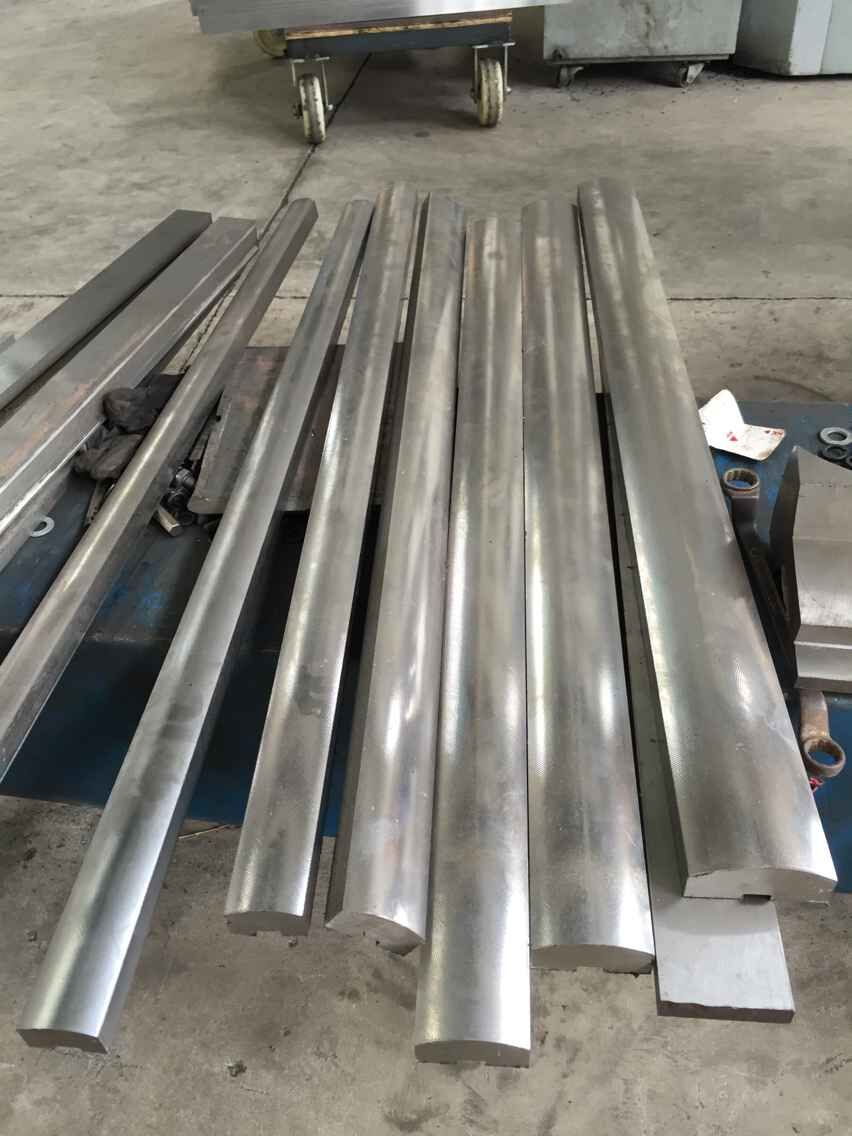

TOOLING
Large selection of tooling, dies and parts in stock and ready to ship, including goose neck, standard style, american style, & european style tooling; 4 way press brakes dies, multi V dies, quick clamps, back gauges and more.

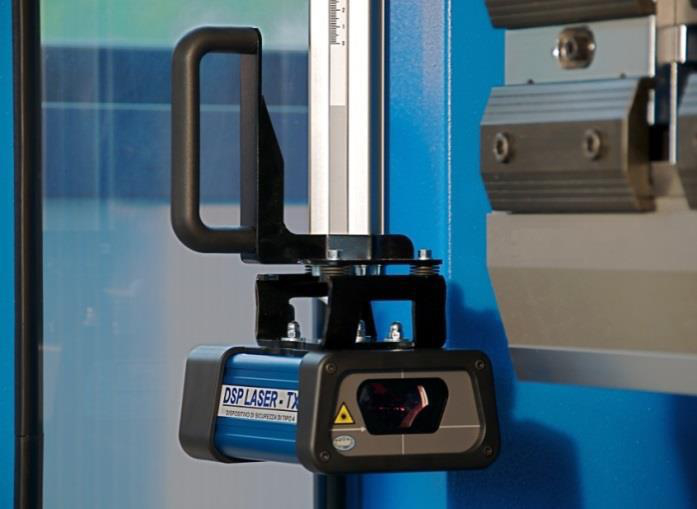

Laser Safety Systems
* Innovative tooling grid guarding pattern
* Completely foot peddle controlled operation
◦box-shaped part bending feature
◦Type 4 patented process control
◦Innovative safety technology
◦automated tooling calibration.
◦Bending a box without eliminating or reducing the effectiveness of the safety system.
◦Minimum slow speed way when bending flat material by special arrangement of the laser beams.
◦Additional machine monitoring (emergency stop buttons & gate interlock switches)
* CE Certified Category 4 Safety Controller with integrated force guided relays and encoder feedback system.

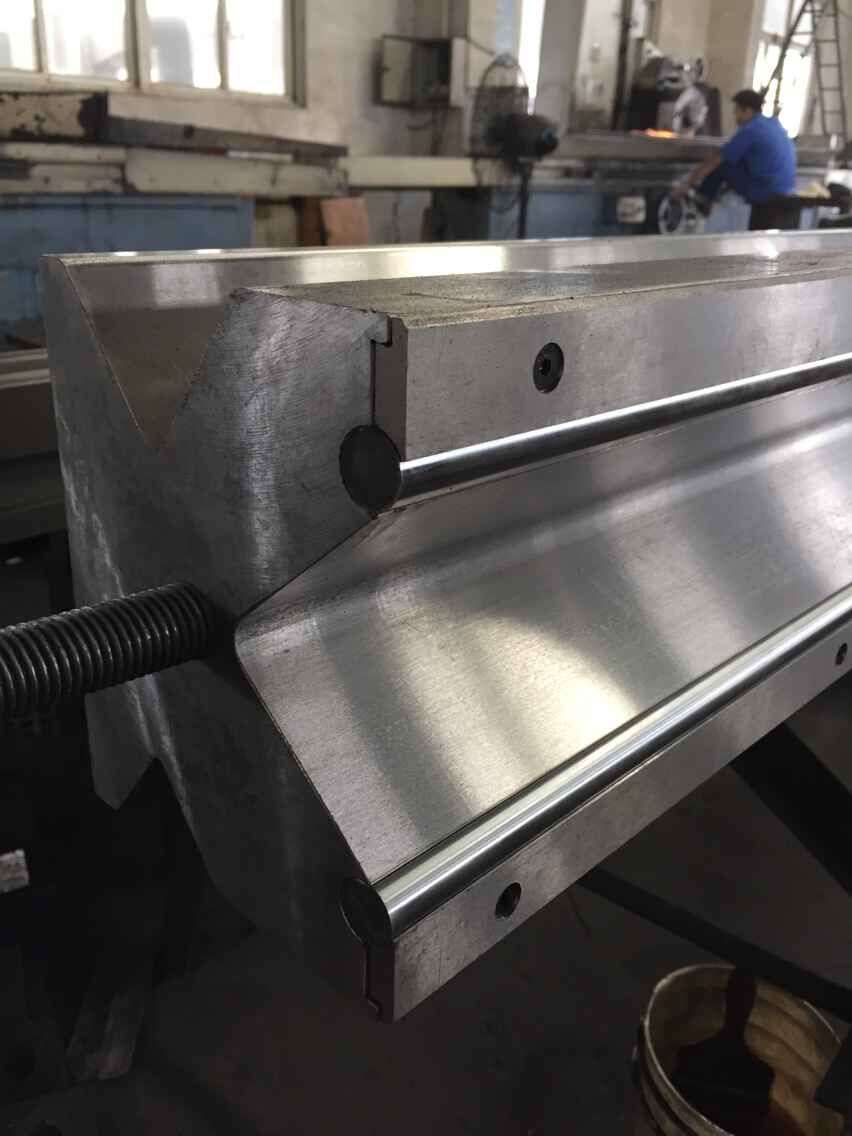

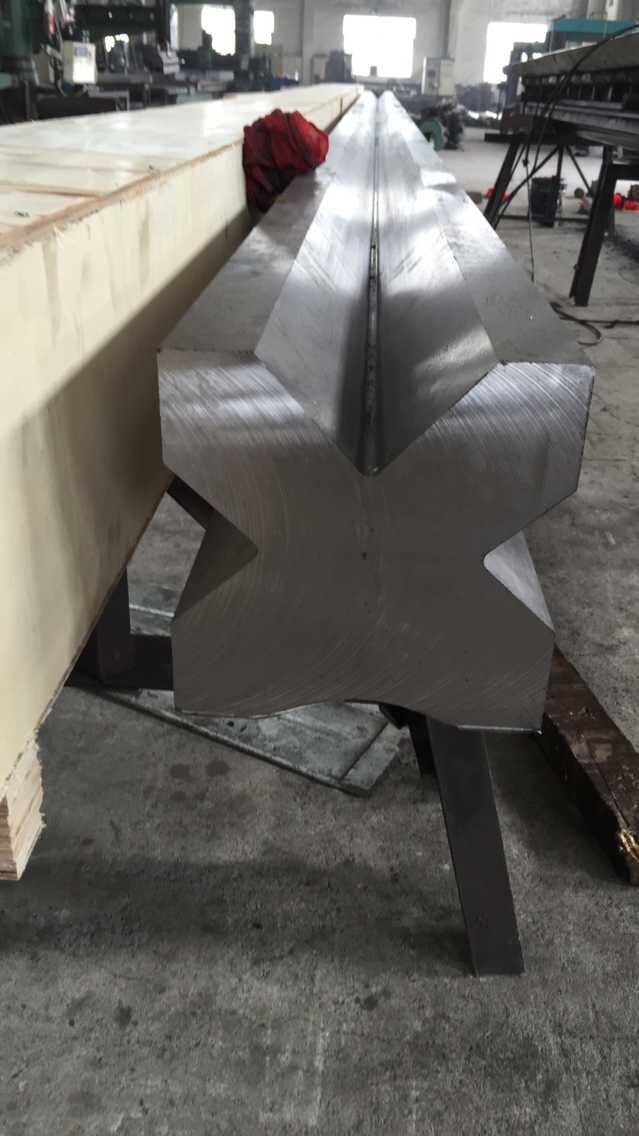

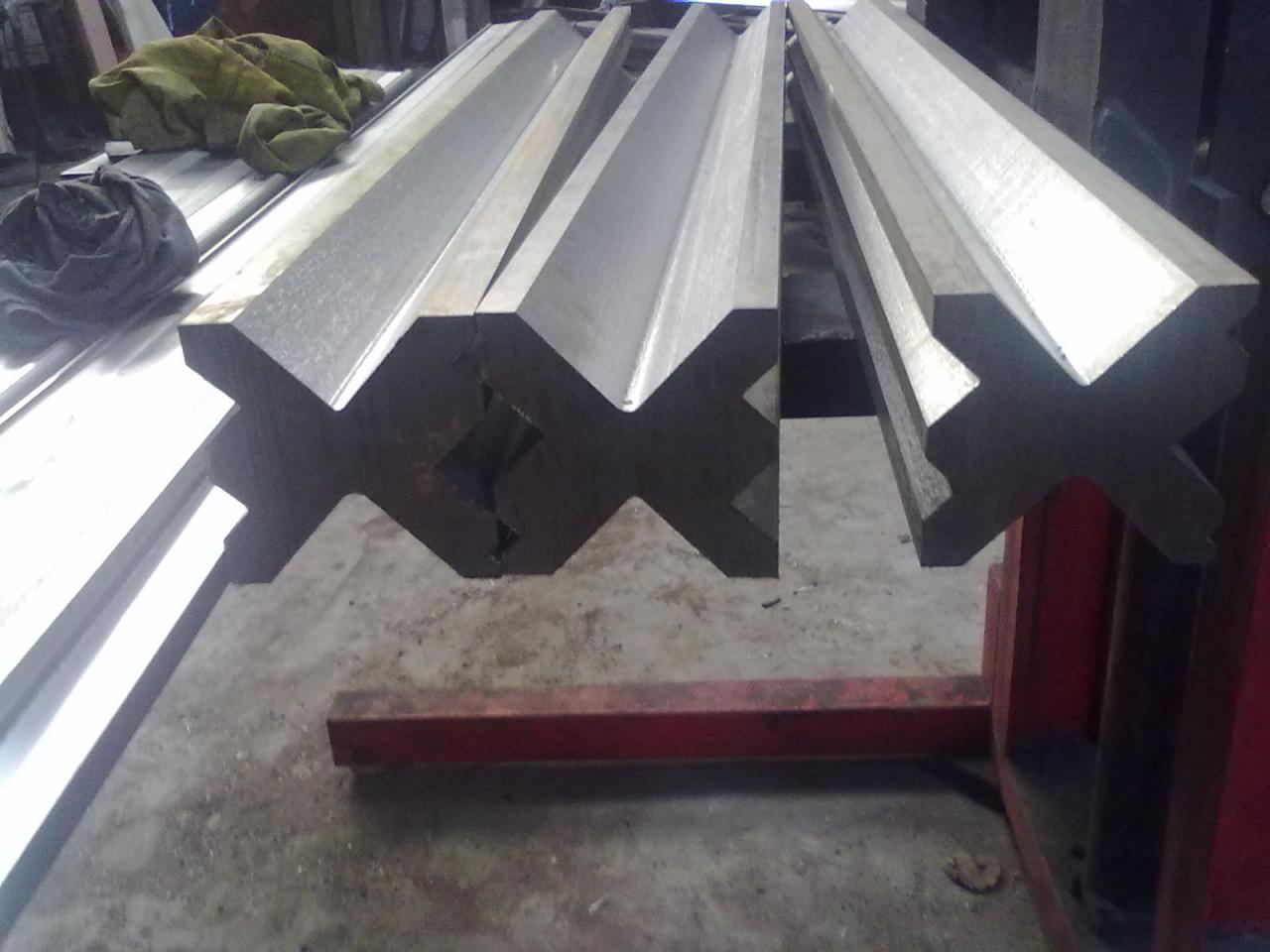

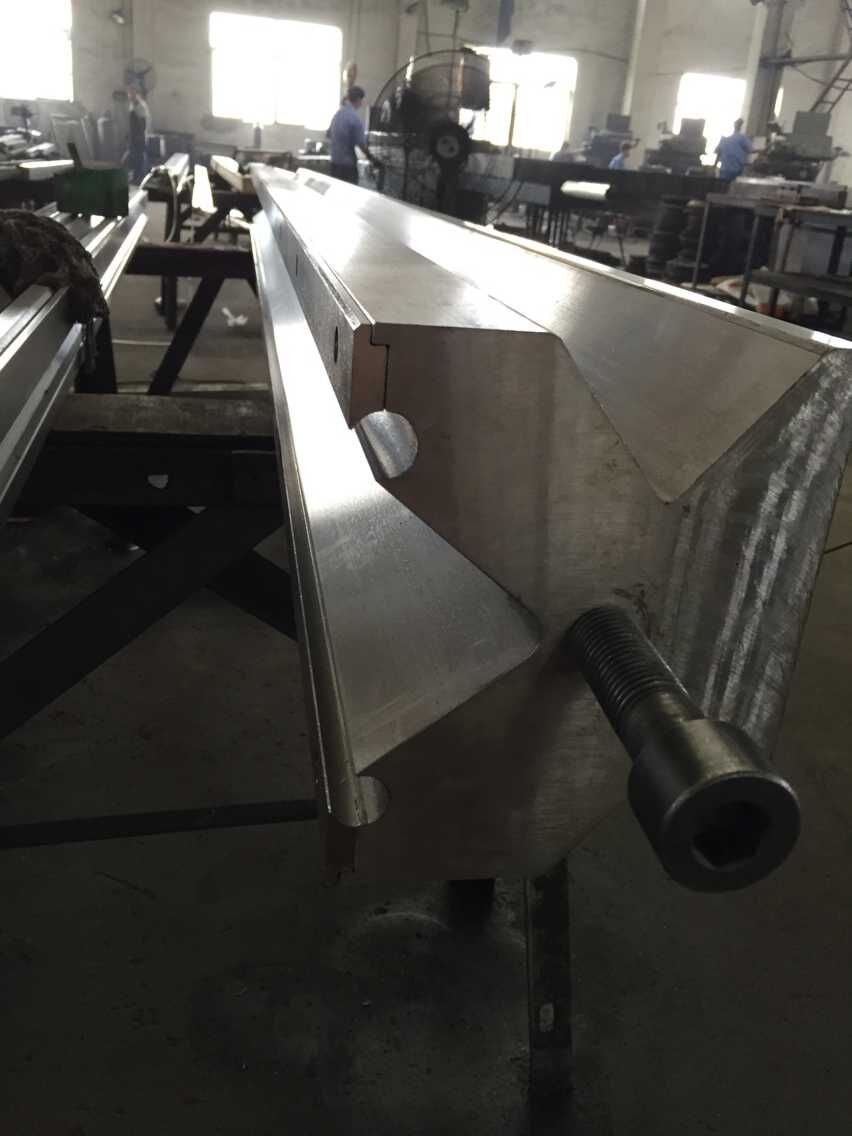

Machine mould :
Details
- Slider Stroke (mm): 120 mm
- Automatic Level: Fully Automatic
- Throat Depth (mm): 220 mm
- Machine Type: Synchronized
- Length of Working Table (mm): 2500 mm
- Width of Working Table (mm): 120 mm
- Dimension: 2500*1300*2210
- Condition: New
- Place of Origin: Anhui
- Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum
- Automation: Automatic
- Extra Services: Cut To Length
- Weight (KG): 4000
- Motor Power (kw): 5.5 kw
- Key Selling Points: Automatic
- Warranty: 2 years
- Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Construction works , Energy & Mining, Advertising Company
- Showroom Location: None
- Marketing Type: New Product 2021
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Core Components: Bearing, Motor, Pressure vessel
- Certification: ce
- After-sales Service Provided: Free spare parts
- Product name: WC67K 125T/2500mm
- Type: PB
- Application: Stainless Plate Bending
- Control system: DA52S
- Bending length: 2500mm
- Nominal Pressure (kN): 1250 kN
- CNC Control system: CNC
