Product Application

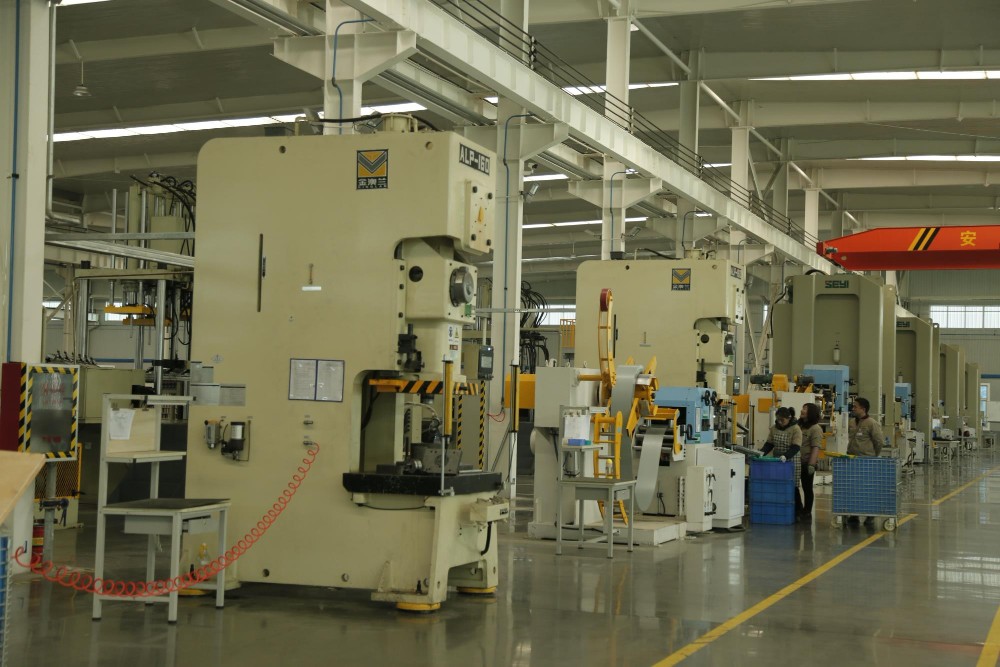

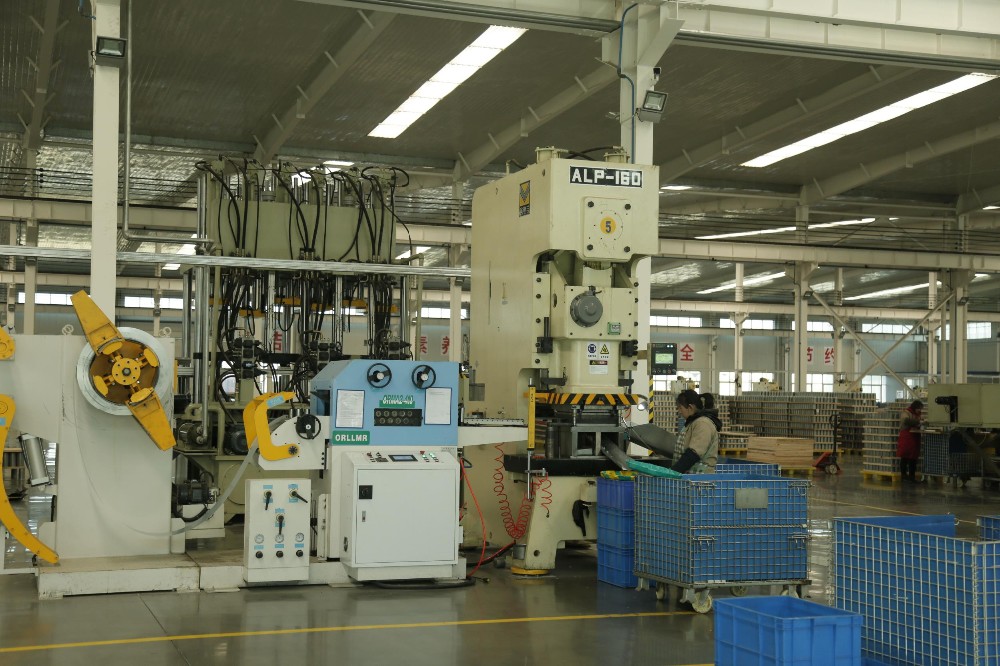

Machine is used for sheet metal parts stamping, combined with stamping molds and auto feeders, the automatic production line is formed. It’s applied for Home appliances, Air conditioner, Air cooler, refrigerator, Auto parts, Automotive parts, Car parts, Filters, Washing machine, Kitchen sinks, Kitchen products,Kitchenware, Kitchen appliances, Kitchen utensils, Kitchen supplies, Gas stove, Gas cooker, Mobile parts, Mobile phone parts, Microwave oven, hinge etc.
Main Features
※ High precision pneumatic press machine
※ Steel welded machine body with heat treatment
※ Multi language touch screen control system
※ High level precision, low voice, smooth running
※ CE certification European standard electric box with multi functions
※ Dry or wet clutch as option, speed inverter, overload protection and auto lubrication
※ Photoelectric light curtains, anti-vibration pads, local voltage transformers
Machine Configurations
Standard Accessories | Optional Accessories | ||
1 | PLC HMI | 1 | Die cushion |
2 | Dry clutch or wet clutch as option | 2 | Quick die change(Die lifter, die clamp, die arm etc.) |
3 | Miss feeding detector | 3 | Coil decoiling machine |
4 | Anti-vibration pads | 4 | Coil straightener |
5 | Auto grease lubrication | 5 | Coil servo feeder |
6 | Overrun protection device | 6 | Stamping dies(single stage die, progressive die, transfer die) |
7 | Photoelectric protection device/Light curtains | 7 | Automation/manipulator arms |
8 | Die height indicator | ||
9 | Motor inverter | ||
10 | Balancer | ||
11 | Cam switch | ||
12 | Knock-out device | ||
13 | Air ejector | ||
14 | Die light | ||
15 | Local voltage transformer | ||
16 | Maintenance tools and tool box |
Press Machine Components

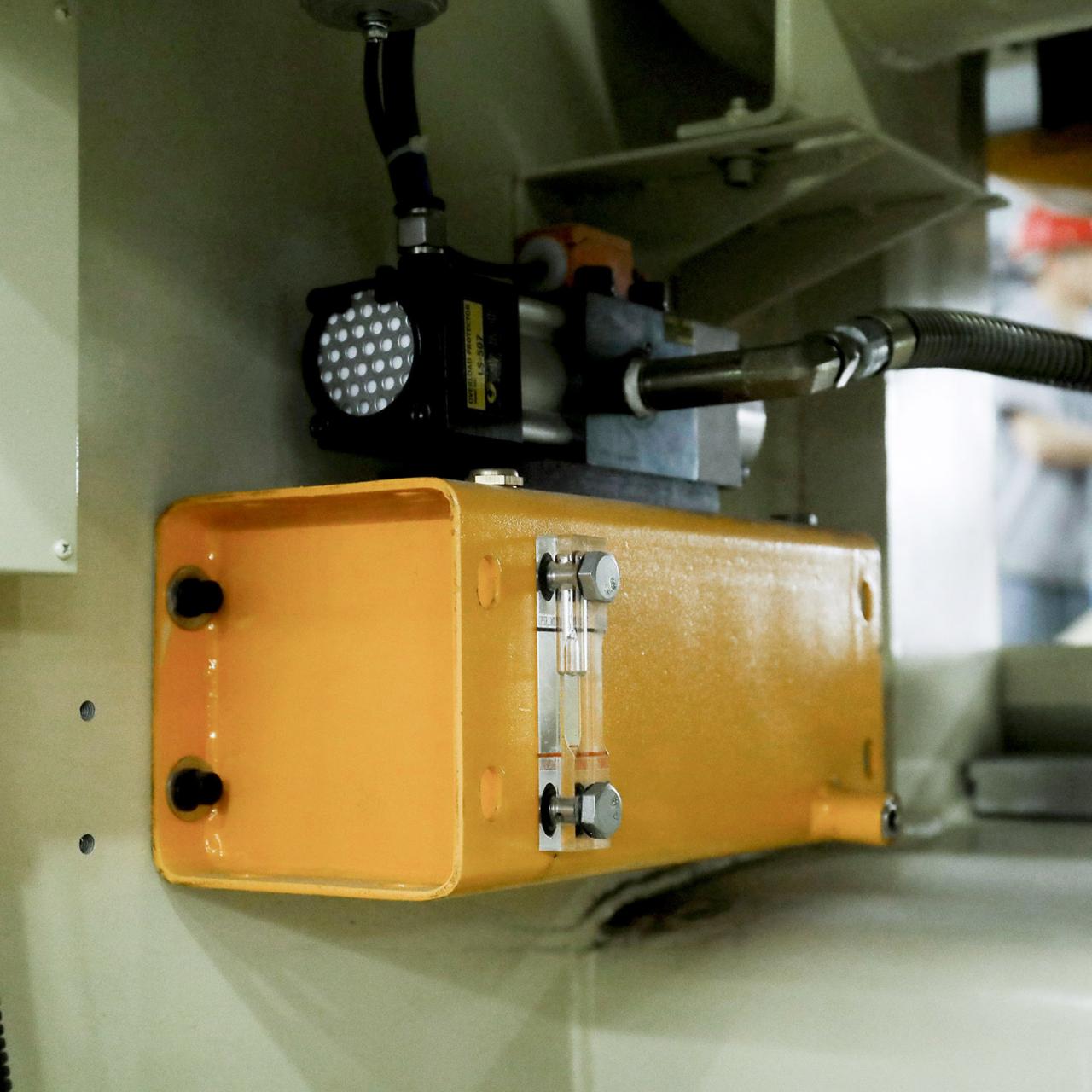

Hydraulic overload protection pump
When the pressure of slider exceeds its specified pressure, the overload pump will relieve the pressure to protect the stressed part of press machine from damage.
Auto grease lubrication device

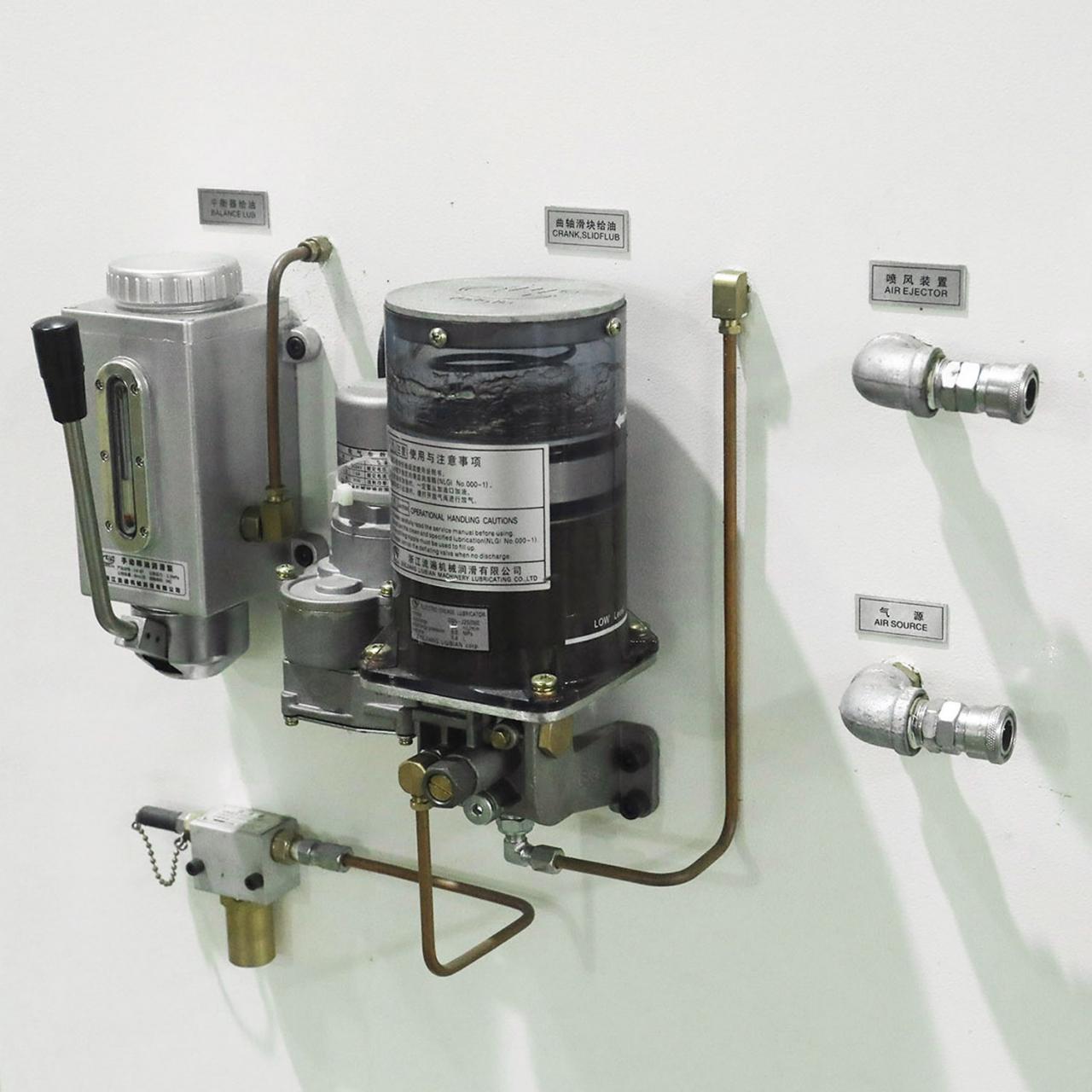

It works under PLC control, providing lubrication for guide rails, crankshaft bearing bush, etc. without manual interference, realizing automatic lubrication.
Inverter

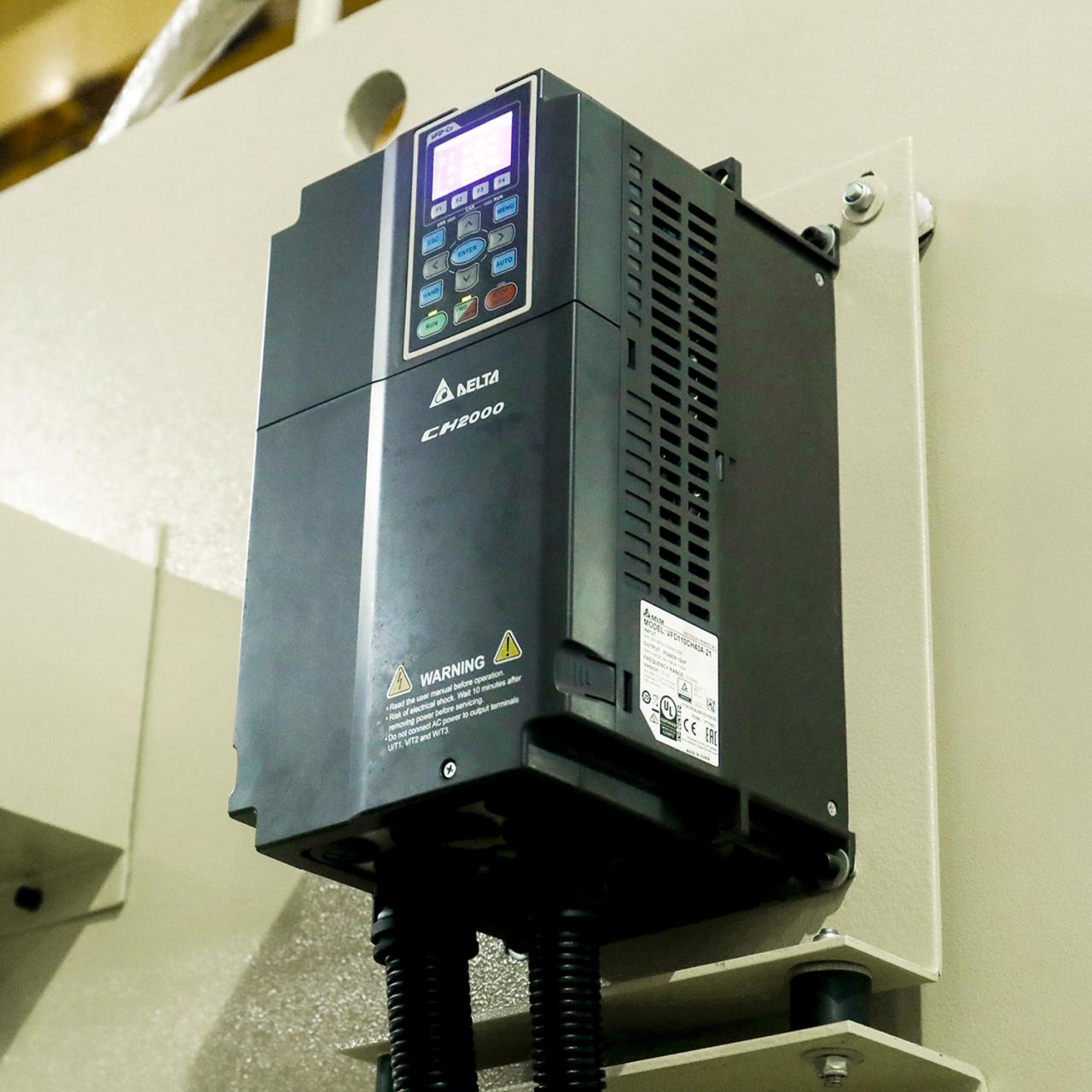

It works mainly for speed regulation, convenient for mold installation and trial by operators as well as machine maintenance.
Clutch and brake integrated

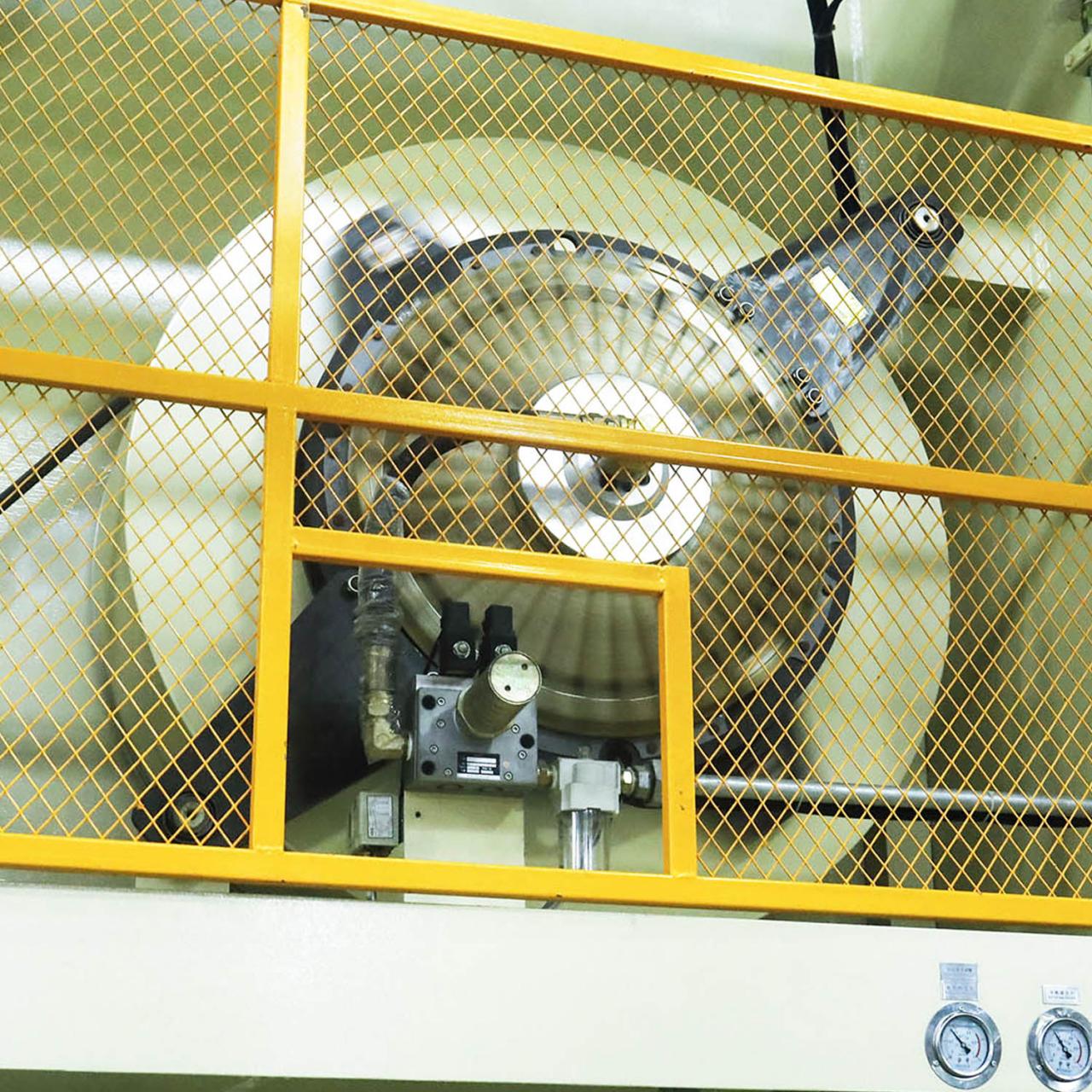

The function of clutch and brake is to control the movement and stop of slider, its sensitivity directly relates to safety issues, it works on the purpose of protecting the operators and press machine.

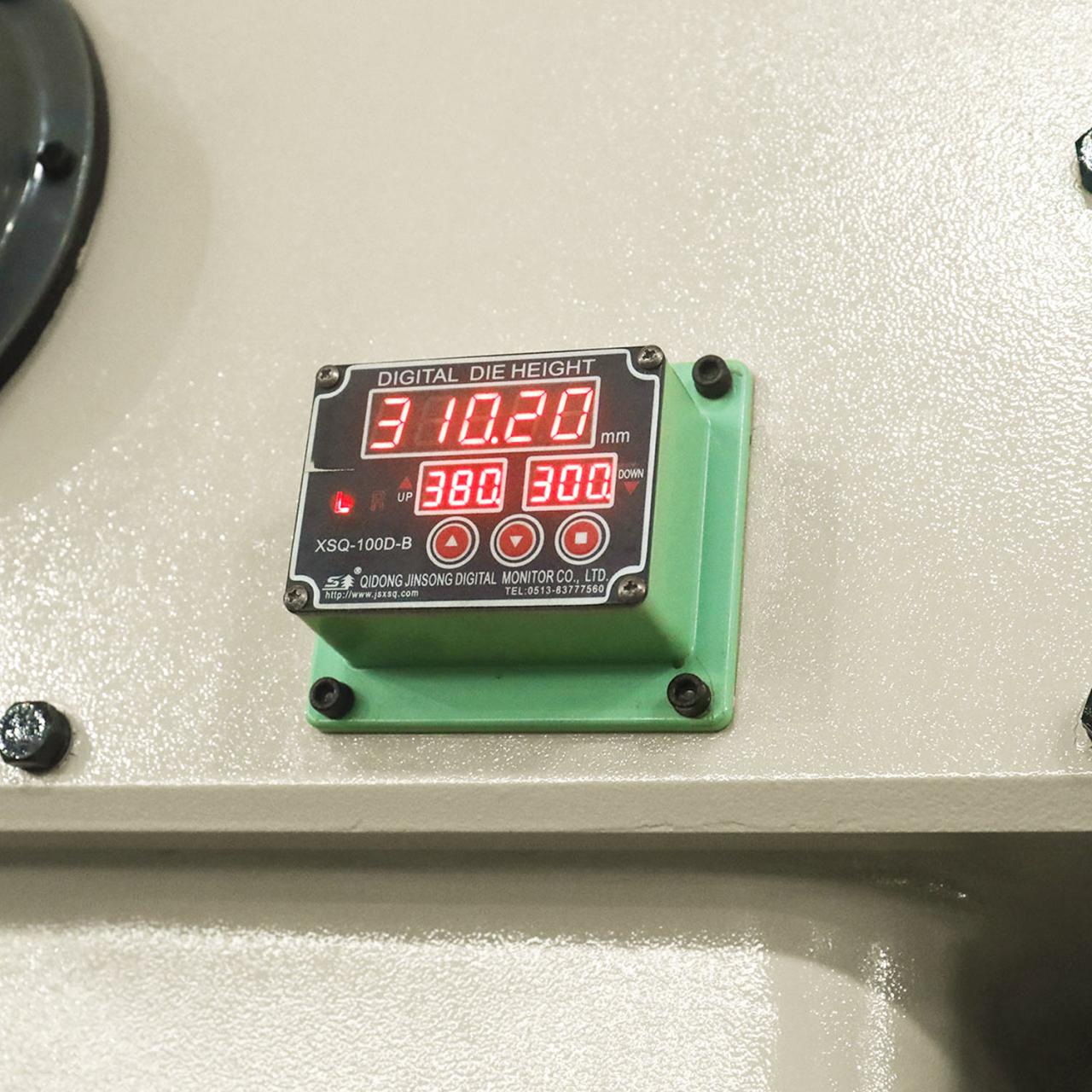

Digital die height indicator
Die height display is an instrument to show the height of the die. It has upper and lower limits to protect the height of die within a certain range.
Balancer and clutch pressure meter

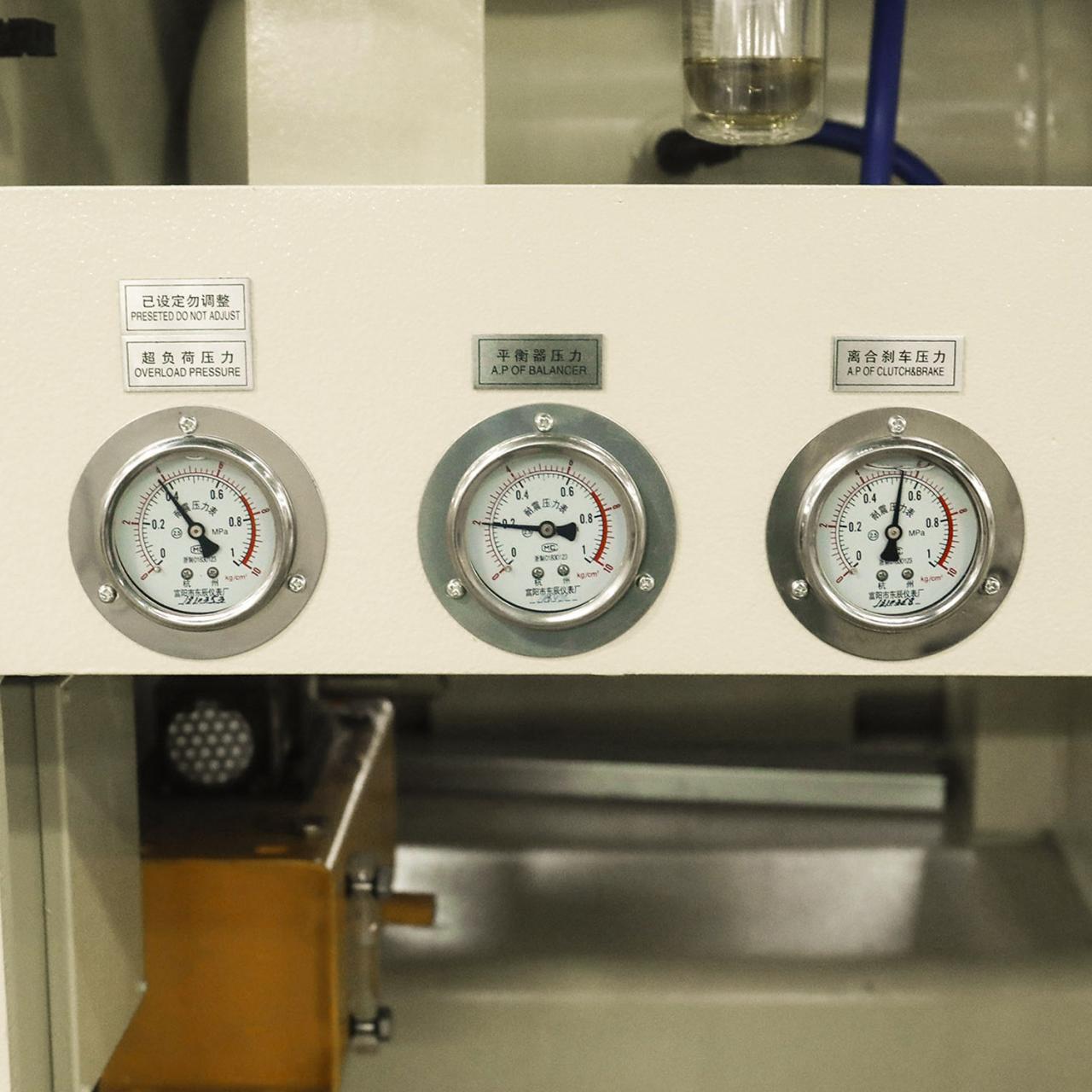

The pressure of overload protection pump is generally adjusted at 0.4MPa, clutch and brake pressure at 0.6MPa, balancer pressure at 0.4MPa.
Slide adjustment motor
The motor drives the slider, which moves up and down to adjust the distance between slider and working table. When the distance is adjusted well, motor stops working.
Touch screen
Multi language touch screen control system. It displays a series of press parameter, such as SPM (strokes per minute), electronic cam angle etc. You may set other corresponding data through this touch screen.

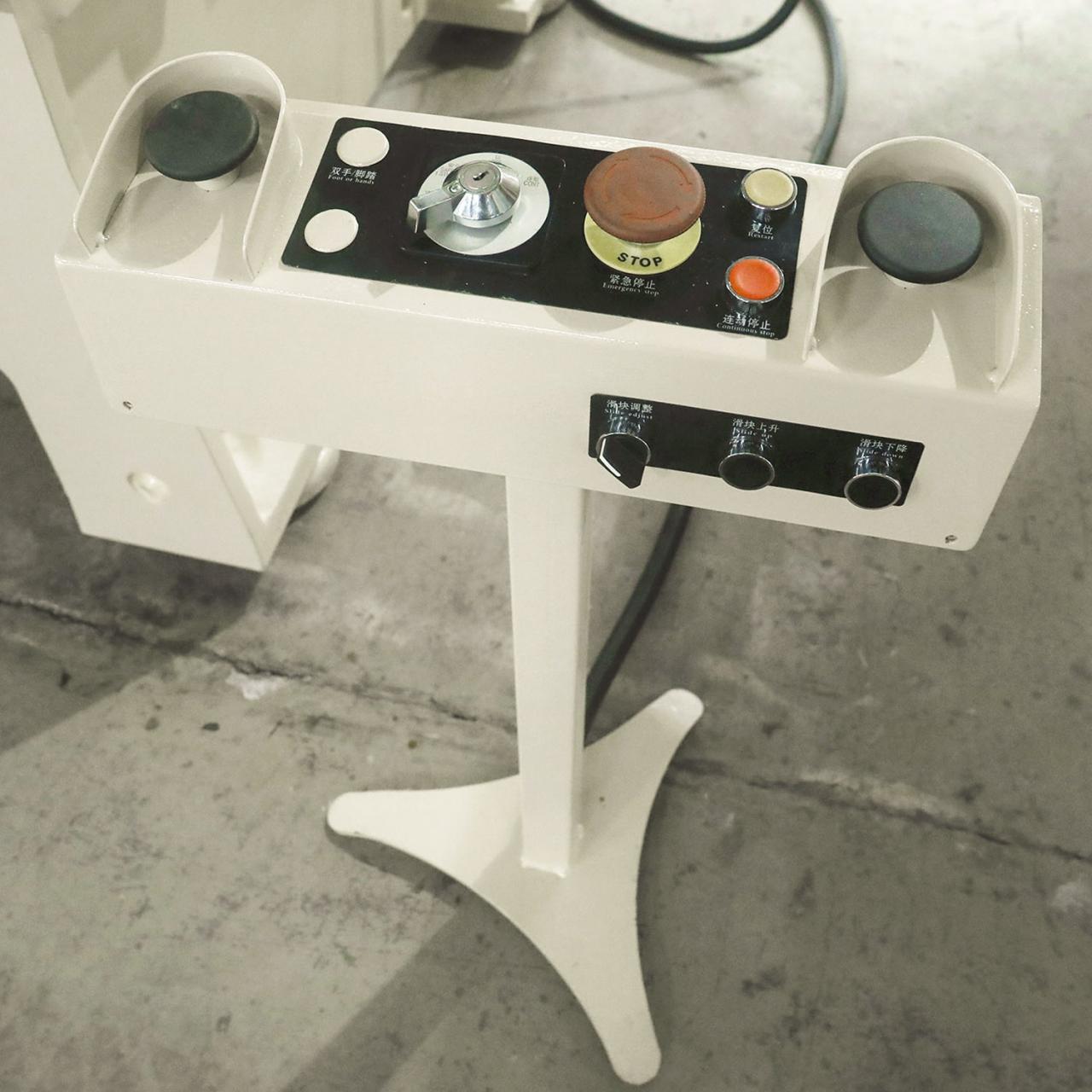

Hands operation panel
When operators start the machine, they need to press the left and right buttons at the same time, which is to avoid potential safety risks when operators start the button while operating the machine. Press Lines
Pre-sales service After-sales service
※ Understand customer needs and give consulting support
※ Catalog review, confirm specifications and select right machine model, provide official offer
※ Factory field visit or online visit※ Provide machine manual in English both in software and hardware
※ Training how to install and operate machine
※ Engineers available for overseas markets ※ Warranty period is one year since the date installation and commissioning finished in user factory.
※ If any components damaged during guarantee period, we can send free parts to user by DHL, TNT, or other international logistics.
※ Engineers available for free installation, commissioning and training in user factory.
※ Online after-sales services available lifelong, if customer needs service support, can contact us by Email, Wechat, Whatsapp, Line, Zalo and Telephone at any time, we provide 24 hours on-line service.
Details
- Condition: New
- Voltage: 380V or Customized
- Weight (T): 25
- Key Selling Points: High-accuracy
- Warranty: 1 Year
- Applicable Industries: Manufacturing Plant
- Showroom Location: Egypt, Turkey, United States
- Marketing Type: Ordinary Product
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Core Components: PLC
- Power Source: Pneumatic, Pneumatic
- Structure: C Frame
- PLC: Delta or Customized
- Die height: 510
- Slide adjustment: 110
- Stroke length: 200
- Table size: 1400*820
- Slider: 850*630
- Motor power: 18.5x4
- Air pressure: 5~6
- CNC or Not: CNC
- Machine Type: Punching Machine
- After-sales Service Provided: Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
- After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
- Local Service Location: Egypt, Turkey, United States
- Certification: CE/ISO9001:2008
