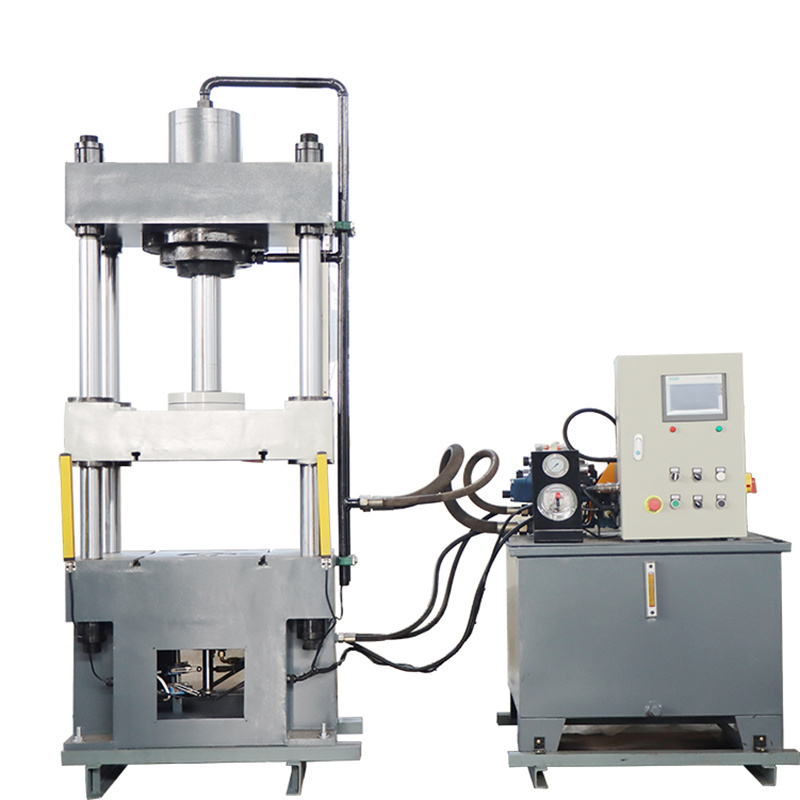

Use metal tensile, deep drawing, punching, rummaged,cold extrusion and other stamping process, can also be used for correction, press-fit. pressed powder products and plastic molding products and insulation materials molding. 100 Ton Hydraulic metal stamping press machine for stainless steel bowl pot making adopts advanced design technology of three-dimensional computer controlled (Finite Element Analysis & Prestressed Modal Analysis) and three beams-four columns bodystructure which makes it classic, contracted and utility.hydraulic press deep drawing deep drawing press machine design as you need: Production and use of each other, taking full account of the actual needs of customers, To ensure that customers use our hydraulic press deep drawing pot making machine machine can perfectly create their own pursuit of the product effect, At the same time in line with the principle of the sake of customers, try to simplify the design, to ensure both economic anddurable, easy to use.
| Parameters | Unit | YQ32-100 | YQ32-200 | YQ32-315 | YQ32-400 | YQ32-630 |
| Nominal force | KN | 1000 | 2000 | 3150 | 4000 | 6300 |
| Max.pressure of hydraulic system | Mpa | 25 | 25 | 25 | 25 | 25 |
| Slider Max.Opening height | mm | 900 | 900 | 1250 | 1250 | 1500 |
| Slider Effective Stroke | mm | 600 | 600 | 800 | 800 | 900 |
| Effective worktable size | mm | 800*800 | 800*800 | 1260*1160 | 1260*1160 | 1600*1600 |
| Nominal force of upper ejection cylinder | KN | 400 | 400 | 630 | 630 | 1000 |
| Stroke of upper ejection cylinder | mm | 220 | 220 | 300 | 300 | 300 |
| Slider descending speed | mm/s | 100 | 100 | 120 | 120 | 150 |
| Slider pressing speed | mm/s | 5-10 | 5-10 | 8-15 | 8-15 | 10-22 |
| Slider return speed | mm/s | 90 | 90 | 90 | 90 | 120 |
Details
- Condition: New
- Dimension(L*W*H): 2650*1400*2100mm
- Weight (T): 10
- Key Selling Points: Competitive Price
- Warranty: 1 Year
- Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Restaurant, Home Use, Retail, Printing Shops
- Showroom Location: None
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Bearing, Pump
- Power Source: Hydraulic, Hydraulic
- Weight: 1-6
- Certification: CE ISO
- Product name: hydraulic bench press machine 100 Ton
- Keyword: Mechanical Metal Punching Machine
- Nominal Pressure: 1000KN
- Effective Stroke: 400mm
- Max.Opening: 800mm
- Return Force: 660KN
- CNC or Not: Normal
- Machine Type: Hydraulic Press
- After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
- Local Service Location: Canada, Turkey, United Kingdom, United States, France, Germany, Viet Nam, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Spain, Thailand, Japan, Malaysia, Australia, Kenya, Argentina, South Korea, Chile, UAE, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Uzbekistan
- Motor Power (kW): 5
