1. Industrial heavy duty steel structure, plate steel joint welding with square pipe steel, under heat treatment,.
2. Configure with PMI linear rail for all axis, to ensure durable and high precision for long time processing.
3. X, Y axis configure with high accuracy grinding type gear rack, Japan Shimpo reducer, high speed and precision can be ensured, Z axis are transmitting by high accuracy rolling ball screw.
4. AC servo system for all axis, larger power, close-cycle control, high precision positioning, stronger torque force, dynamic corresponding time is shorter, and the overload resistance ability is strong.
5. Adopt industrial optical fiber cutting system, easy to install, maintenance and cam module based on autocad kernel development,built-in process, ensure high-quality cutting effect.
| Water cooling system | SA industry chiller |
| Reducer | Shimpo |
| Fiber laser cutting head | Raytools |
| Auxiliary Gas | oxygen, nitrogen, air |
| focus | auto focus head |
| Working Table | saw teeth |

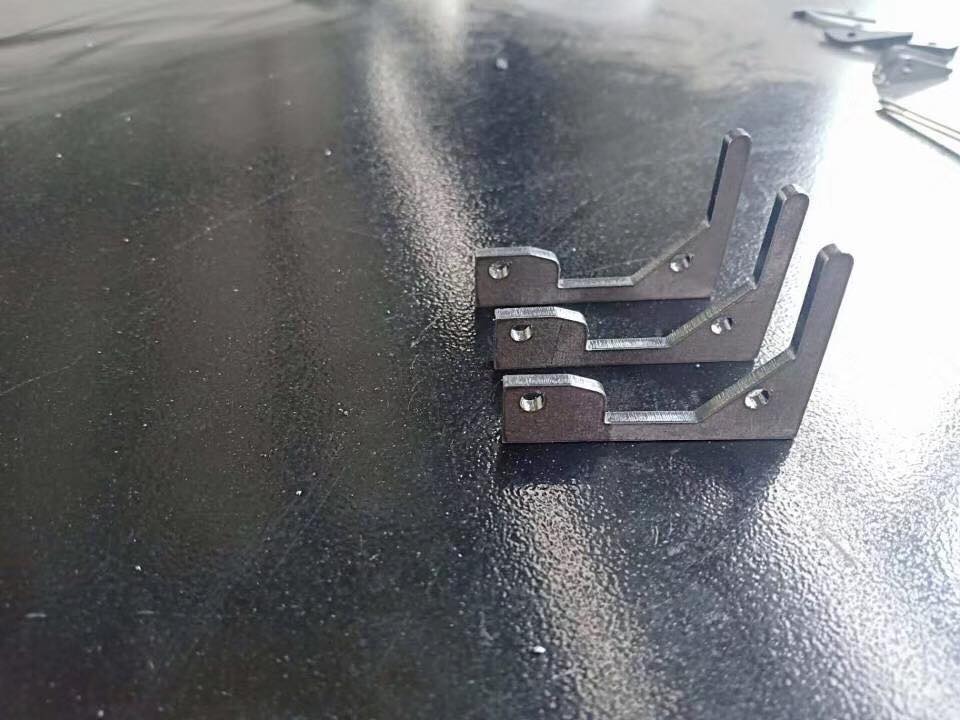

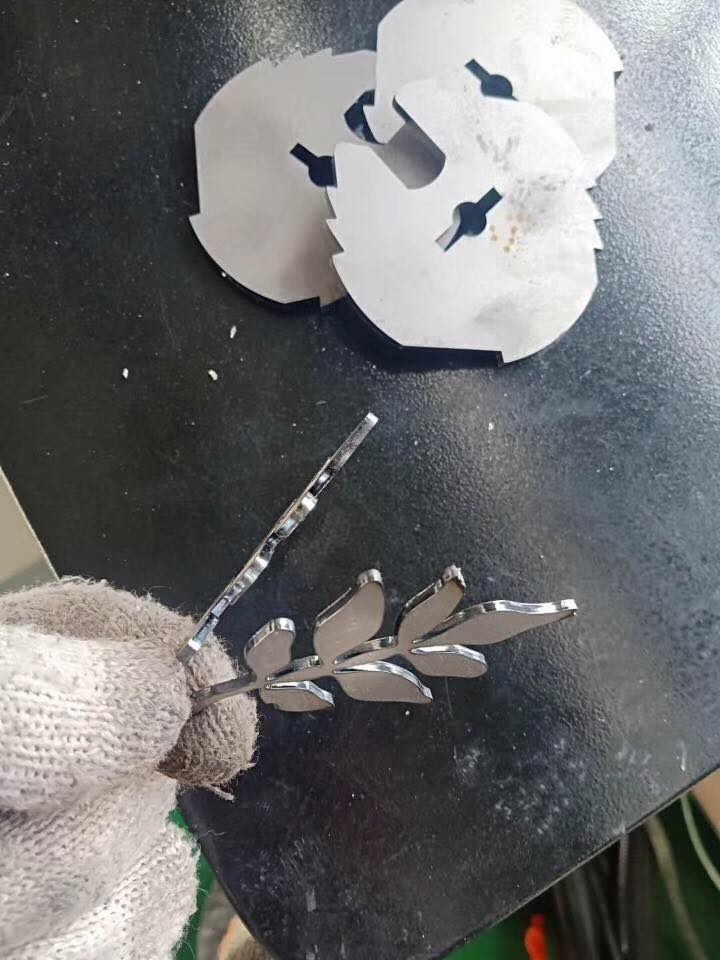

Fiber laser cutting machine work show
Details
- Application: LASER CUTTING
- Applicable Material: Metal
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 1500mm*3000mm
- Cutting Speed: 1-50mm/s
- Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
- Cutting Thickness: 0-20mm
- CNC or Not: Yes
- Cooling Mode: WATER COOLING
- Control Software: Cypcut
- Laser Source Brand: RAYCUS
- Laser Head Brand: Raytools
- Servo Motor Brand: Yaskawa
- Guiderail Brand: PMI
- Control System Brand: Cypcut
- Weight (KG): 1400 KG
- Key Selling Points: Long Service Life
- Warranty: 3 years
- Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Advertising Company
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 3 years
- Core Components: Motor, Gear, Gearbox
- Product name: Fiber Laser Metal Cutting Machine
- Laser power: 500W / 1000W / 2000W / 3000W
- Keyword: Fiber Laser 2000 Watt Cutting Machine
- Model: Processing Metal
- Cutting materials: Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )
- Function: Cutting Metal Materials
- Control system: Cypcut Control System
- Driving system: Fuji
- Certification: ce, ISO
- After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Video technical support
- After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
- Local Service Location: Turkey, Viet Nam, Mexico, South Korea, Chile
- Showroom Location: Viet Nam, South Korea, Colombia, Malaysia
