Features
The cutting machine adopts international famous brand advanced laser, which has high electro-optical efficiency, water-saving and power-saving. Especially important, it can be free of maintenance for a long time, save a lot of maintenance funds and time, and improve work efficiency.The overall main frame adopts gantry structure worktable.
The high damping bed has good rigidity, high precision and stable operation. The frame structure is made of high-quality steel honeycomb welding. The machine tool is annealed, twice aged and processed by large-scale gantry milling machine.
These design and processing means ensure that the machine tool has excellent seismic resistance, high rigidity and stability. It fully meets the stability requirements of the machine tool in high-speed motion.
The high precision double side rack and pinion drive and linear guide rail are adopted, and the powerful dual drive servo motor drive system is used to effectively ensure the speed and accuracy of laser cutting. Also can choose the exchange type worktable, the failure rate is extremely low, the exchange time is short, greatly improves the production efficiency.
Optional Models
LC Single Table Series

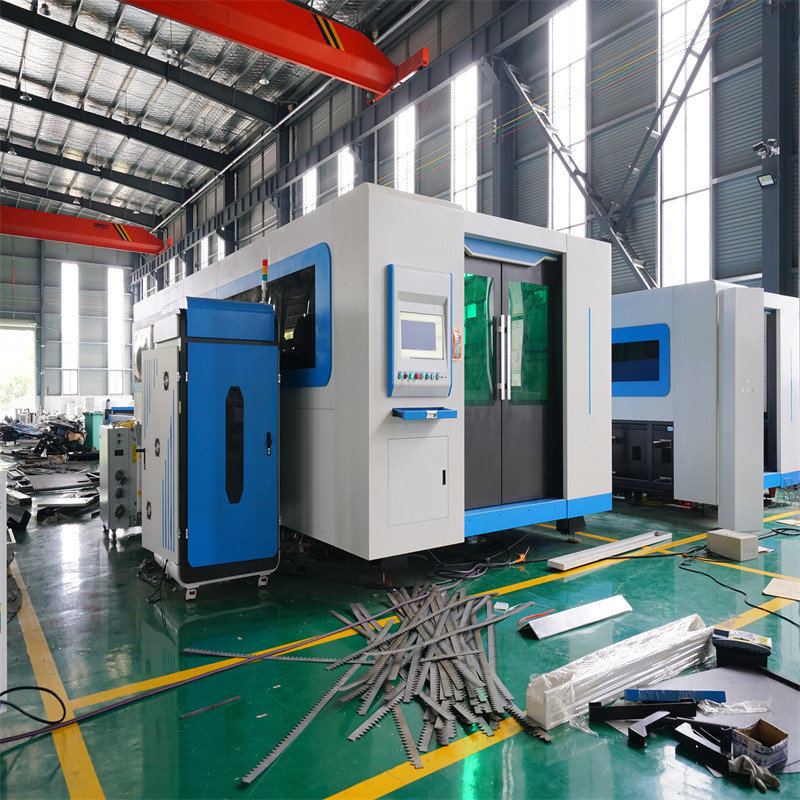

LC series laser cutting machine occupies a small area, high performance, easy to install. Is the most economical and popular series. 3015LC for export can be used for normal container transportation which can save you space and cost.
PC Exchange Table Series
PC series high power laser cutting machine. The enclosed structure and automatic exchange of double tables greatly save the feeding time. Closed cutting also reduces the possible harm to human body caused by laser and smoke generated , machine operation during cutting.
PT Sheet&Pipe Series

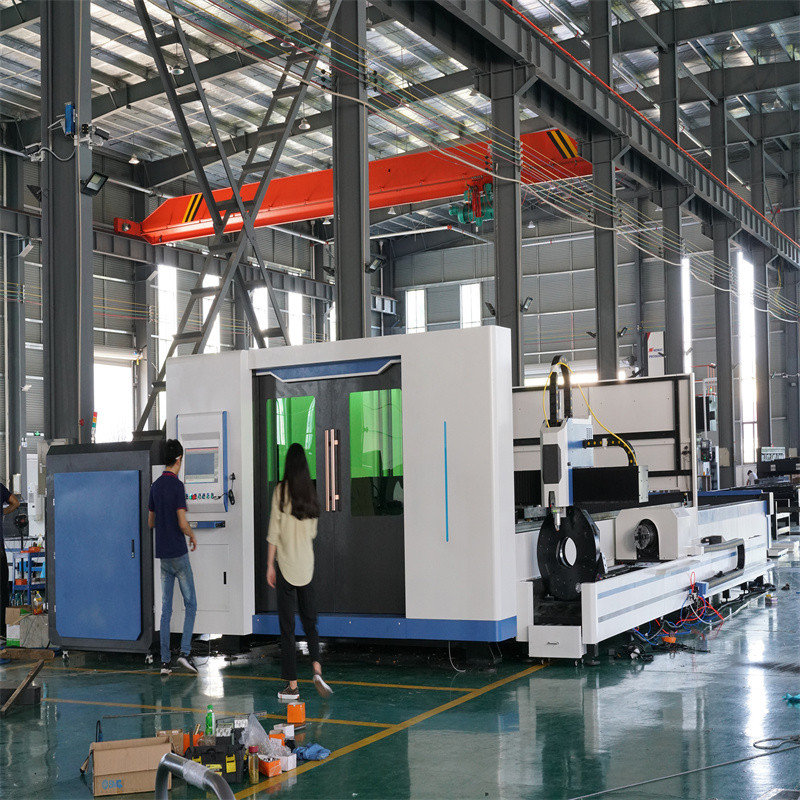

PT series sheet and pipe integrated laser cutting machine is equipped with advanced optical fiber laser plate cutting system and pipe cutting system. Different functions of plate and tube cutting can be switched freely. Integrated fuselage, small footprint creating more value for you.
Advanced Laser Generator
Standard configuration of stable and efficient Raycus or MAX laser generator. Modular design, highly integrated system, free from maintenance, high reliability. The laser power is continuously adjustable, with high beam quality and high laser stability. It is an ideal laser source for laser fine cutting, precision welding and other applications. Compared with other similar lasers in the market, our laser has obvious advantages. Optional IPG and nLIGHT Laser.
Exactly Matched Laser Cutting Heads
All RAYMAX laser cutting machines are standard equipped with WXS or Raytools auto-focusing laser cutting heads.The cutiing heads have a built-in motor drive unit, which drives the focusing lens through a linear mechanism to change position automatically.Customers can set the program to achieve continuous focus that completing the rapid piercing and cutting material with different thickness. The design of water-cooled structure allows laser heads to work stably and chronically. Optional PRECITEC and Lasermech laser cutting heads.
Lightweight Crossbeam

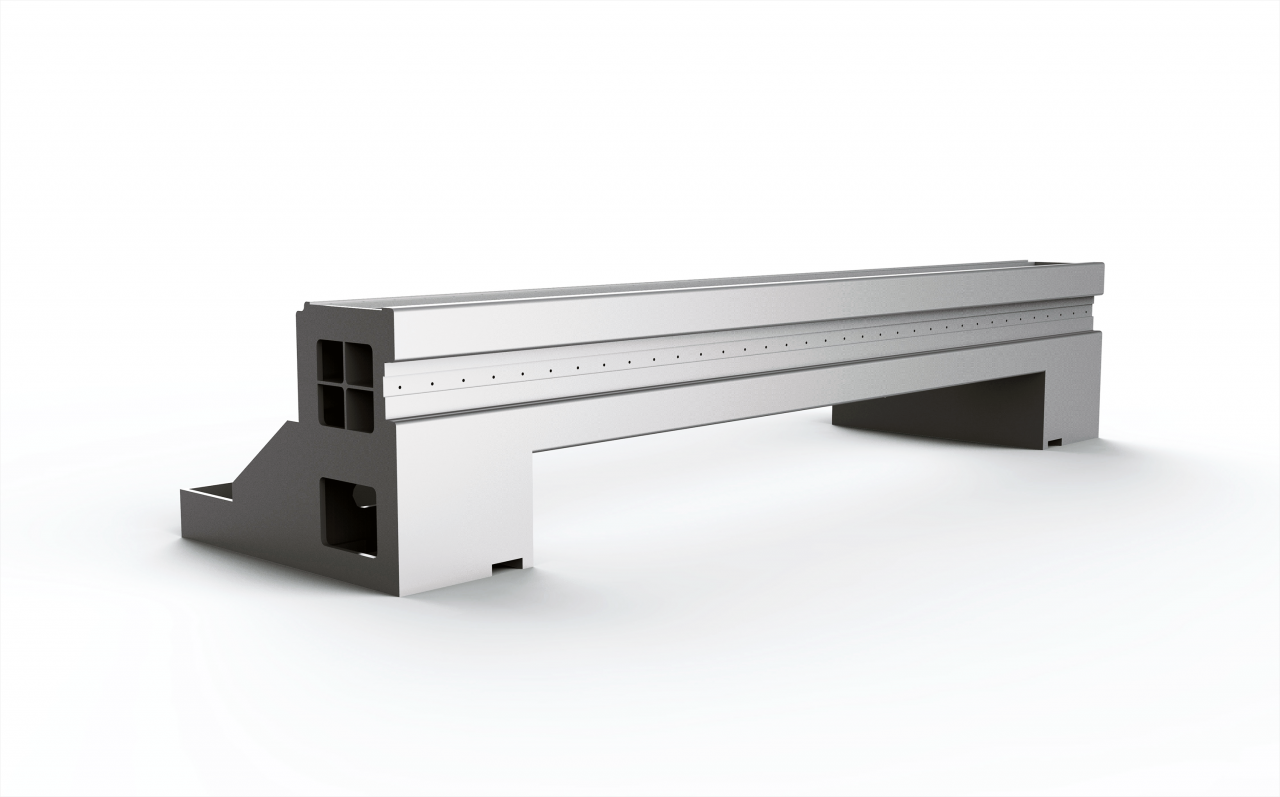

The crossbeam is made of aviation grade aluminum, which is processed by extrusion molding process and heat aging process, which makes the whole machine rigid and has excellent surface quality and good toughness. The lightweight and high rigidity of the crossbeam ensure the high-speed movement during laser processing. At the same time, it has perfect dynamic performance and meets the accuracy. With long service life, it can keep the shape unchanged to the greatest extent, so as to ensure the cutting accuracy and product quality.
Stable and Solid Bed

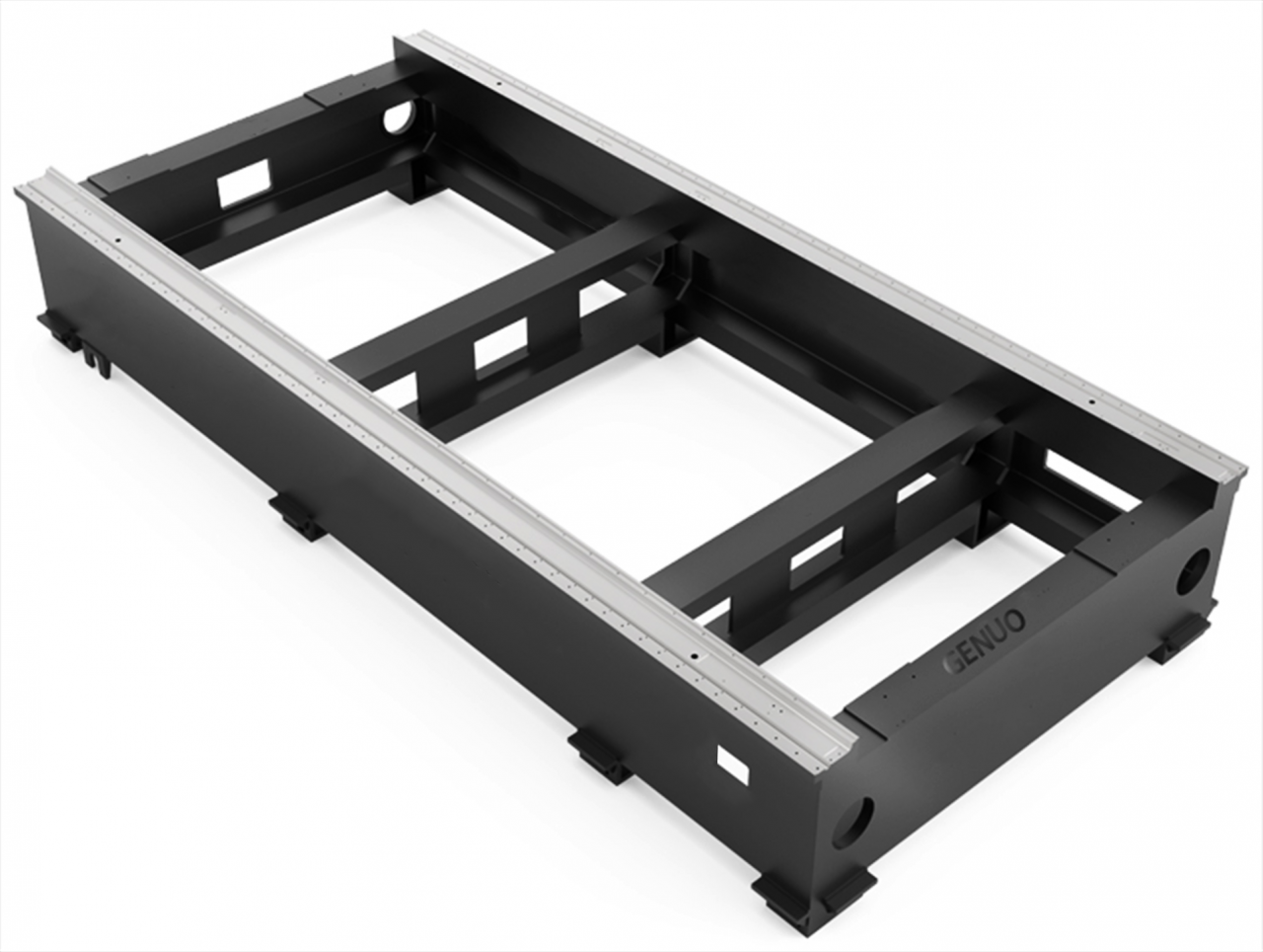

The main body of the cutting machine is welded with high-quality carbon structural steel with tensile strength up to 500MPa, After high temperature annealing and natural aging to eliminate welding stress, deformation prevention, more durable. Then by the large-scale precision gantry machining center for precision machining. Stable and reliable bed, no deformation, to ensure long-term cutting accuracy and machine stability. Optional casting machine bed.
High Precision Transmission Parts

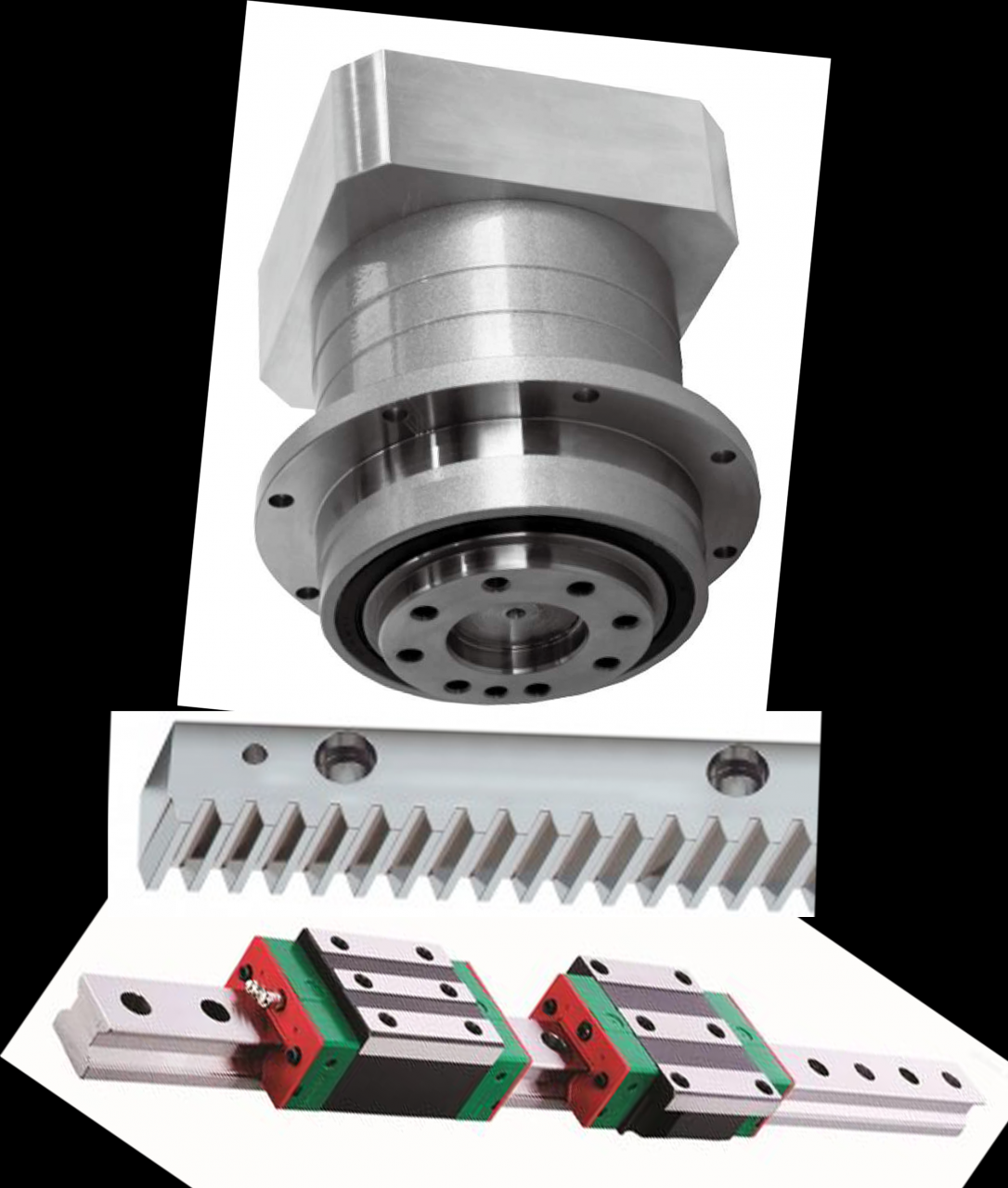

Special Japanese SHIMPO or French Motovario flange reducer, precision rack and pinion, silent linear guide. Connect the lathe bed and the cutting part precisely. Let the machine run in a very smooth and efficient way. With the automatic lubrication system, the maintenance of mechanical parts is greatly reduced. Optional Atlanta reducer, rack and pinion.
Superior Quality Electrical Components

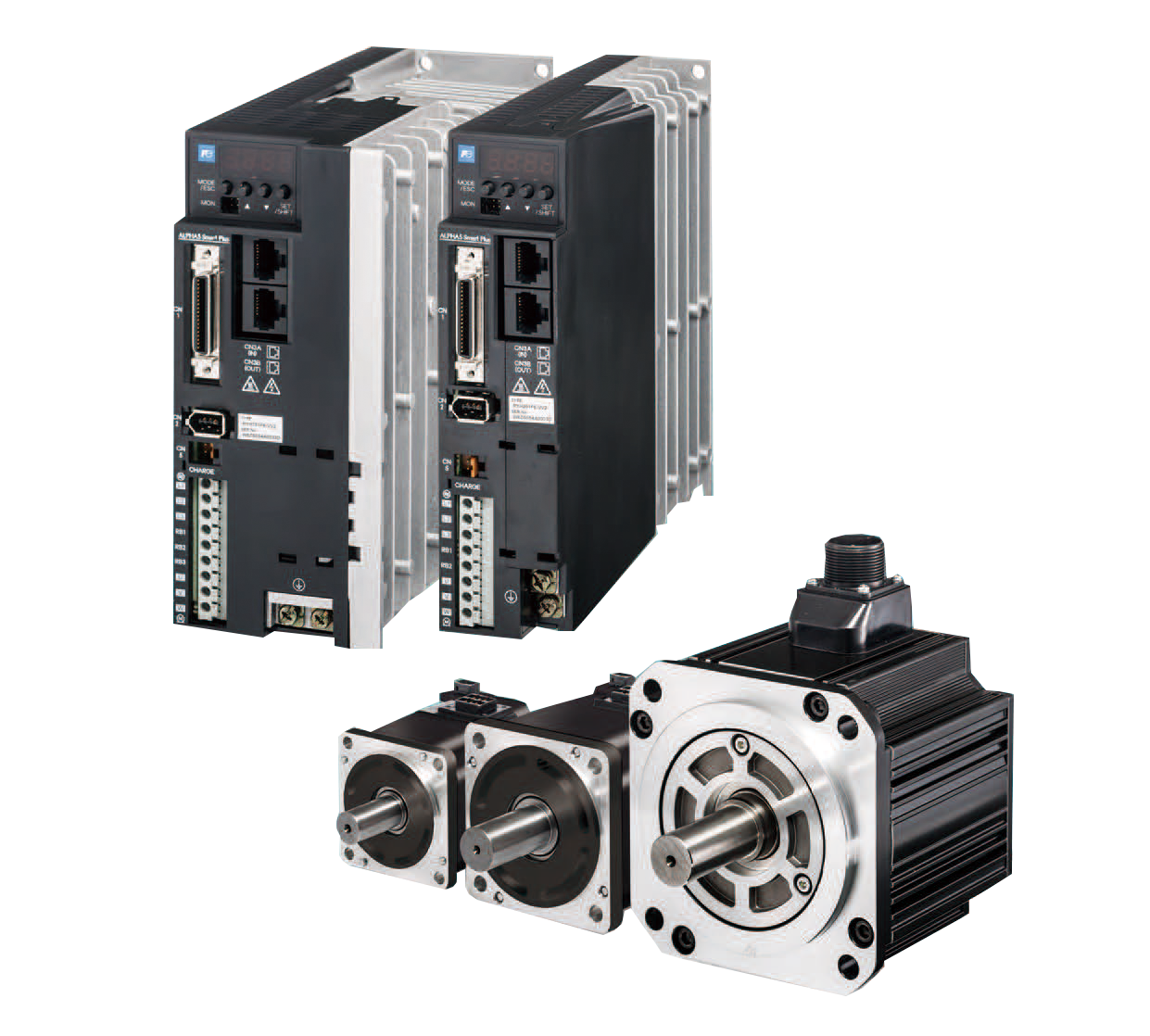

The machine adopts Japanese Fuji or Panasonic servo motor and drive up to6000r / min.Powerful torque and power greatly improve the cutting efficiency. At the same time, it has extremely accurate positioning accuracy and long service life.The main electrical accessories are Schneider and Siemens, reasonable line connection and optimization. Ensure a very low failure rate. Optional Yaskawa servo motor and drive.
Powerful & Intelligent Laser Cutting System

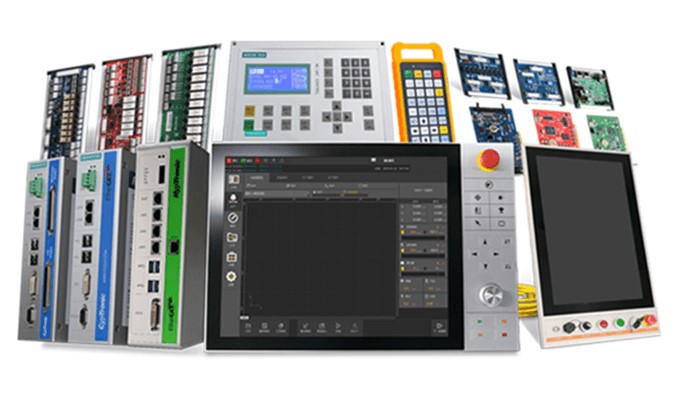

The whole series of laser cutting machines are equipped with CypCut laser cutting control software or HypCut ultra-high power laser cutting control software.With high accuracy visual positioning system and integrated CNC system successively. It is easy to use and has powerful functions, which can meet and apply to various processing occasions. Optional Germany PA8000, Siemens 840D CNC cutting system
Size Chart of Design
| Type | 3015LC | 4015LC | 4020LC | 6020LC |
| Rang of Machining L*W(mm) | 3000*1500 | 4000*1500 | 4000*2000 | 6000*2000 |
| Laser power (KW) | 0.5-20 | |||
| X/Y axis positioning accuracy (mm/m) | ±0.05 | |||
| X/Y axis repeated accuracy (mm/m) | ±0.02 | |||
| X/Y axis Max moving speed (m/min) | 120 | |||
| X/Y axis Max. acceleration (G) | 1.2 | |||
| Cutting thickness(mm) | According to the power of laser source and sheet metal material | |||
| Dimension （L*W*h)(mm) | 4600*2900*1800 | 5600*2900*1800 | 5600*3400*1800 | 7700*3400*1800 |
| Machine weight(kg) | 4800 | 5500 | 6000 | 7500 |
FAQ
Q1. How about your machine quality?
A1: Our machines distribute worldwide to about 50 counties where there are metal plate ind ustry ,there are Brilliant machines And where there are our machines,there are good reputation and terminal user satisfaction.
Q2: You are the manufacturer or trading comparly?
A2: We are the 100% manufacturer with more than 20 years manufacturing experience.
Q3. How about your after-sale service?
A3: 1. Technical solutions: we can provide technical solutions within one day.
2. Online video: Show you machine working video in factory . ( update every week)
3. Installation service: This is available with all of our machines,live video can be provided. We can also dispatch technician to customer's factory for installation machines. (Customers only need to pay for the airfare and hotel expense.)
4. Training service: Our technician will teach you how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
5. Quality guarantee: 2 year warranty, we provide lifetime service. We arrange final test before shipment, After making sure machine is the best performance, then make shipments.
6. 100% response rate: we will reply your questions within 12 hours.
Details
- Application: LASER CUTTING
- Applicable Material: Metal
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 4000mm*1500mm
- Cutting Speed: 120m/min
- Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
- Cutting Thickness: 0-30
- CNC or Not: Yes
- Cooling Mode: WATER COOLING
- Control Software: Cypcut
- Laser Source Brand: RAYCUS
- Laser Head Brand: Precitec
- Servo Motor Brand: Panasonic
- Guiderail Brand: PMI
- Control System Brand: Cypcut
- Weight (KG): 5500 KG
- Key Selling Points: High-accuracy
- Optical Lens Brand: II-VI
- Warranty: 2 years
- Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Advertising Company
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: Not Available
- Core Components: Pressure vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
- Product name: Fiber Laser Metal Cutting Machine
- Laser power: 6000W
- Function: Sheet metal plate cutting
- Working area: 1500mmX4000mm
- Laser head: Raytools Cutting Head
- Power supply: 220V/380V
- Driving system: YASKAWA Servo Motors
- Color: Required
- Feature: High-accuracy
- Cooling system: Water Cooling System
- Certification: ce
- After-sales Service Provided: Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
- After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
- Local Service Location: Canada, United States, Italy, Russia
- Showroom Location: Canada, United States, Italy, Russia
