Main functions and features
Double cylinders hydraulic punch & shear machine
Five independent stations for punch, shear, notcher, section cut

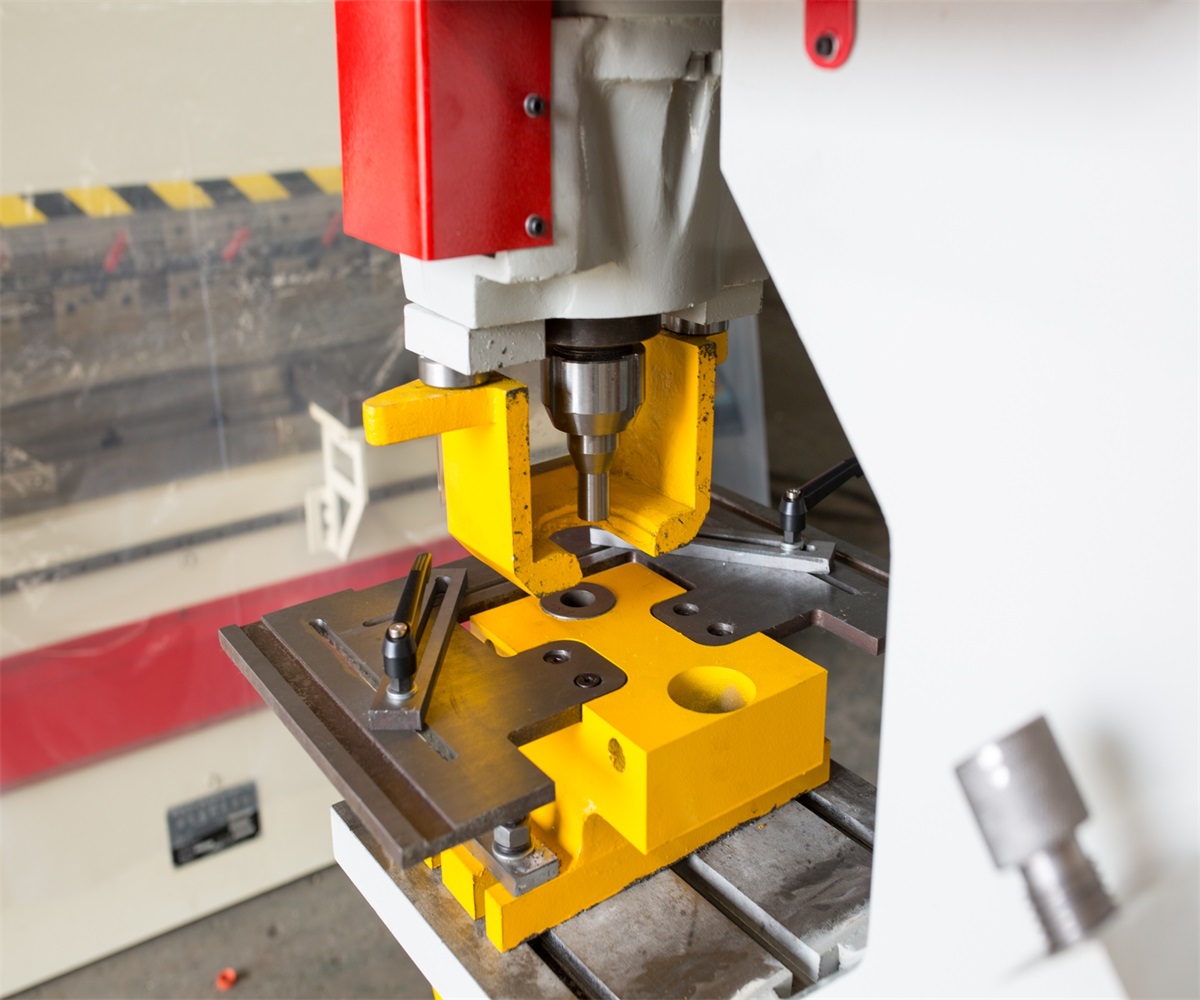

Large punch table with multi-purpose bolster
Removable table block for overhang channel / joist flange punching applications
Universal die bolster, easy change punch holder fitted, punch adapters supplied

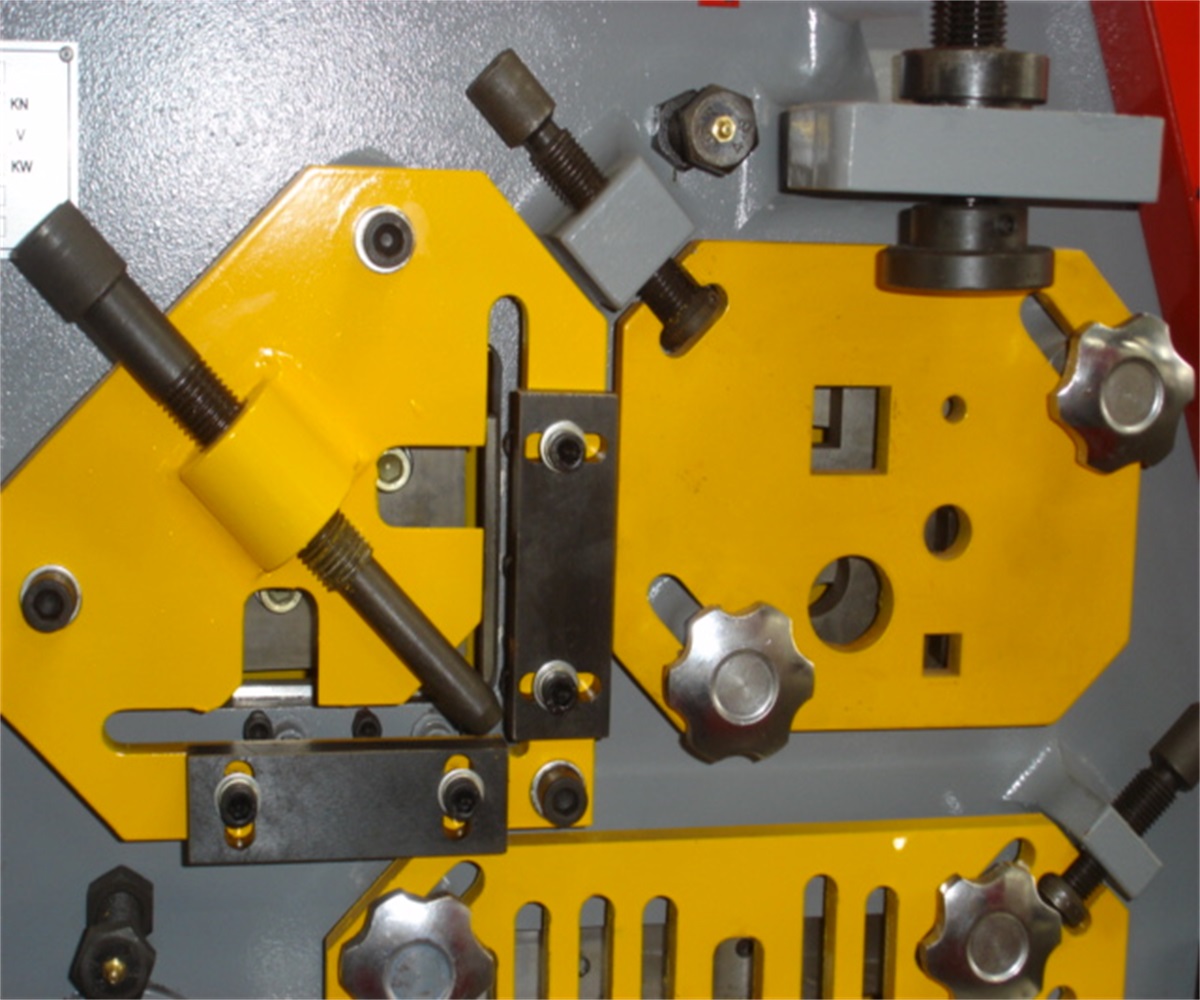

Angle, round & square solid monoblock crop station

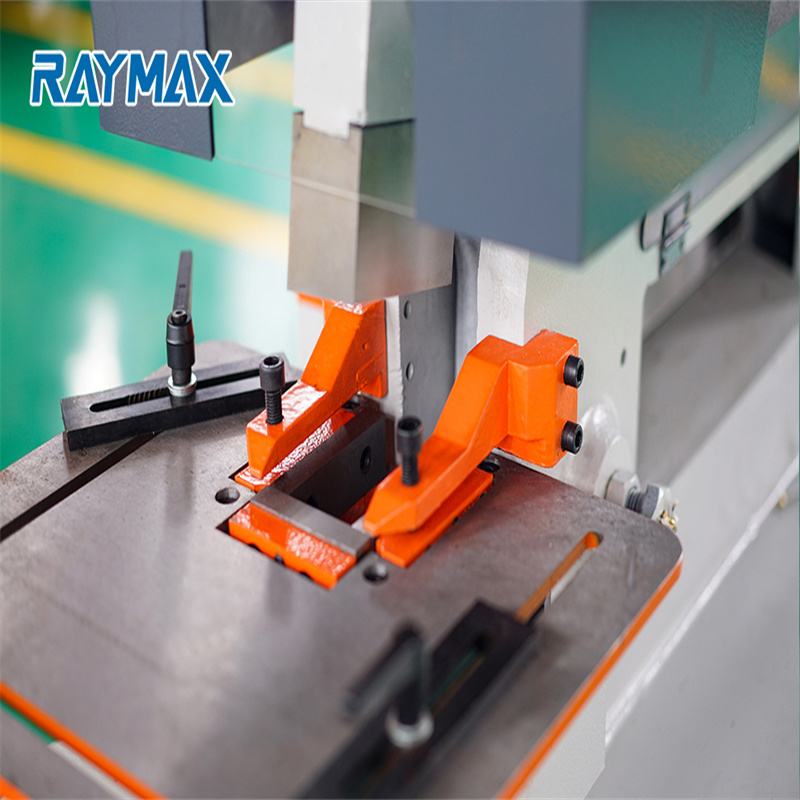

Rear notching station, Low power inching and adjustable stroke at punch station
Centralised pressure lubrication system

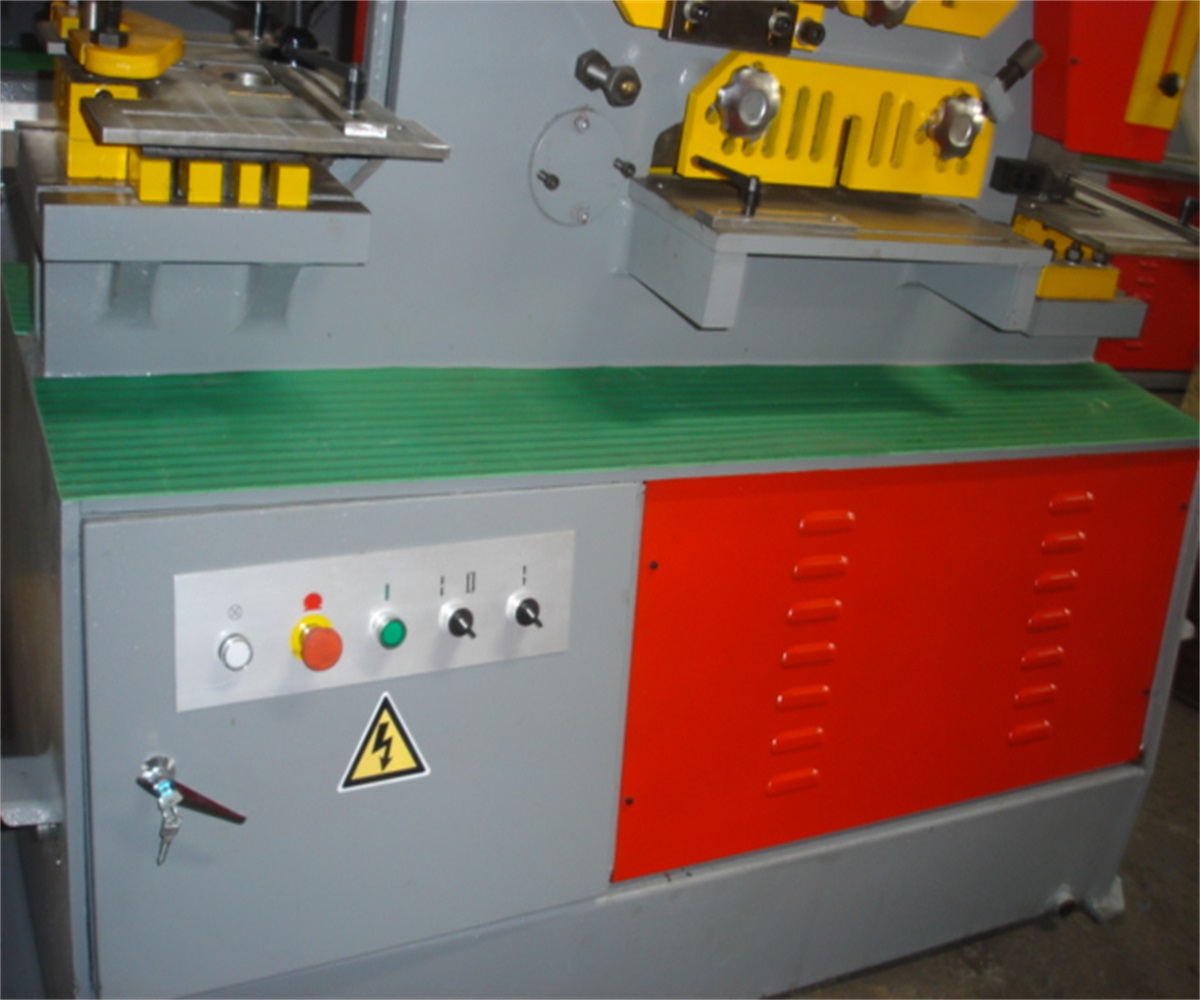

Electric panel with overload protaction elements and ingetrated controls
Safety movable foot pedal
Technical Parameters
| Model | Q35Y-12 |
| Punching Pressure (T) | 35 |
| Max. cutting thickness of sheet plates (mm) | 12 |
| Material strength (N/mm²) | ≤450 |
| Angle of Shear (°) | 7° |
| Flat bar shearing (T*W)(mm) | 12*300 |
| Max. length of cylinder stroke (mm) | 35 |
| Trips frequency (times/min) | 10-18 |
| Depth of throat (mm) | 115 |
| Max. punching diameter (mm) | 25 |
| Motor power (KW) | 4 |
| Overall dimensions (L*W*H)(mm) | 950*550*1800 |
| Weight(kg) | 1200 |
Details
- CNC or Not: CNC
- Condition: New
- Nominal Force (kN): 1150
- Power Source: Hydraulic
- Year: 2020
- Dimension(L*W*H): 2355*960*2090
- Motor Power (kW): 7.5
- Weight (T): 4
- Key Selling Points: High-accuracy
- Warranty: 2 years
- Showroom Location: Italy, Saudi Arabia, India, Russia, South Africa
- Applicable Industries: Manufacturing Plant, Machinery Repair Shops
- After-sales Service Provided: after-sales service, Video technical support, Field installation, commissioning and training, Field maintenance and repair service
- Function: Steel Metal Punching
- Color: Customizable
- Control system: Germany Siemens
- Material: Steel Material
- Punching machine: Automatic Hole Punching Machine
- Core Components: Engine
- After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
- Local Service Location: Italy, Saudi Arabia, India, Russia, South Africa
- Certification: ce
