Main Configuration
1. Full EU streamlined design, heat treatment rack,high rigidity worktable.
2. Estun NC controller E21/DA41for Y axis and X axis control.
3. Working-piece counting function.
4. Bending retraction function
5. Backgauge with ball screw and Manual R axis
6. Optional V axis for compensation function.
7. light curtain for safty, optional DSP laser protection.
8. CE certificate and ISO9001*2008

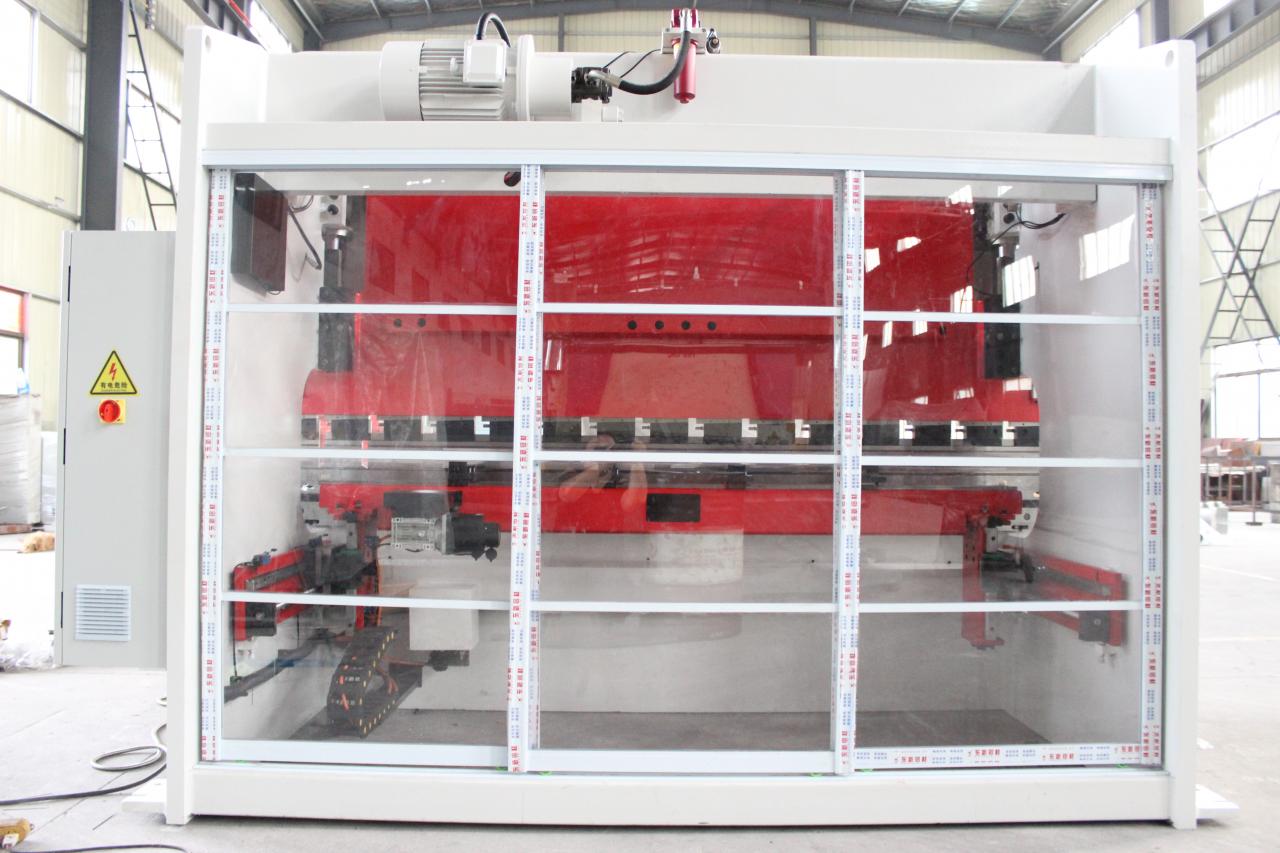

Machine Back

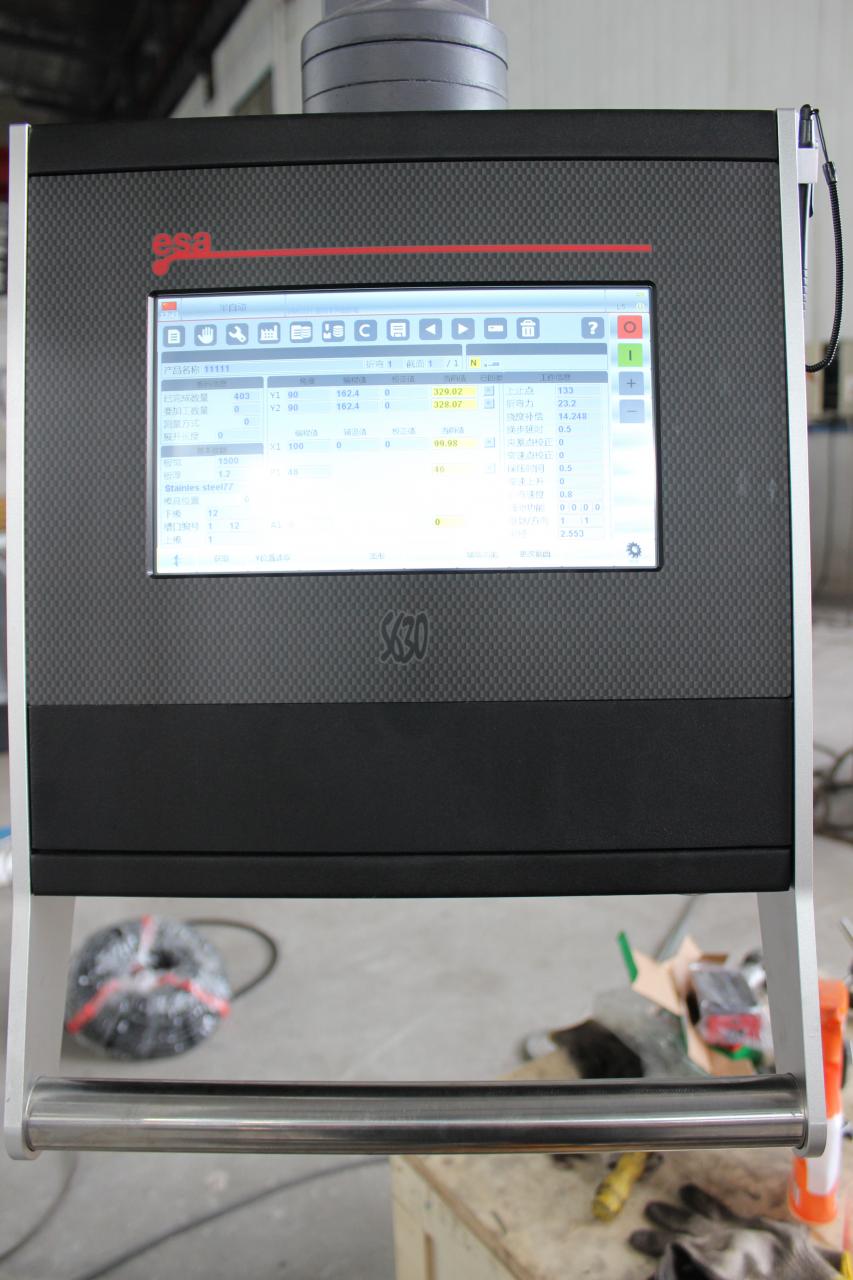

Controller(ESA,DELEM,ESTUN)

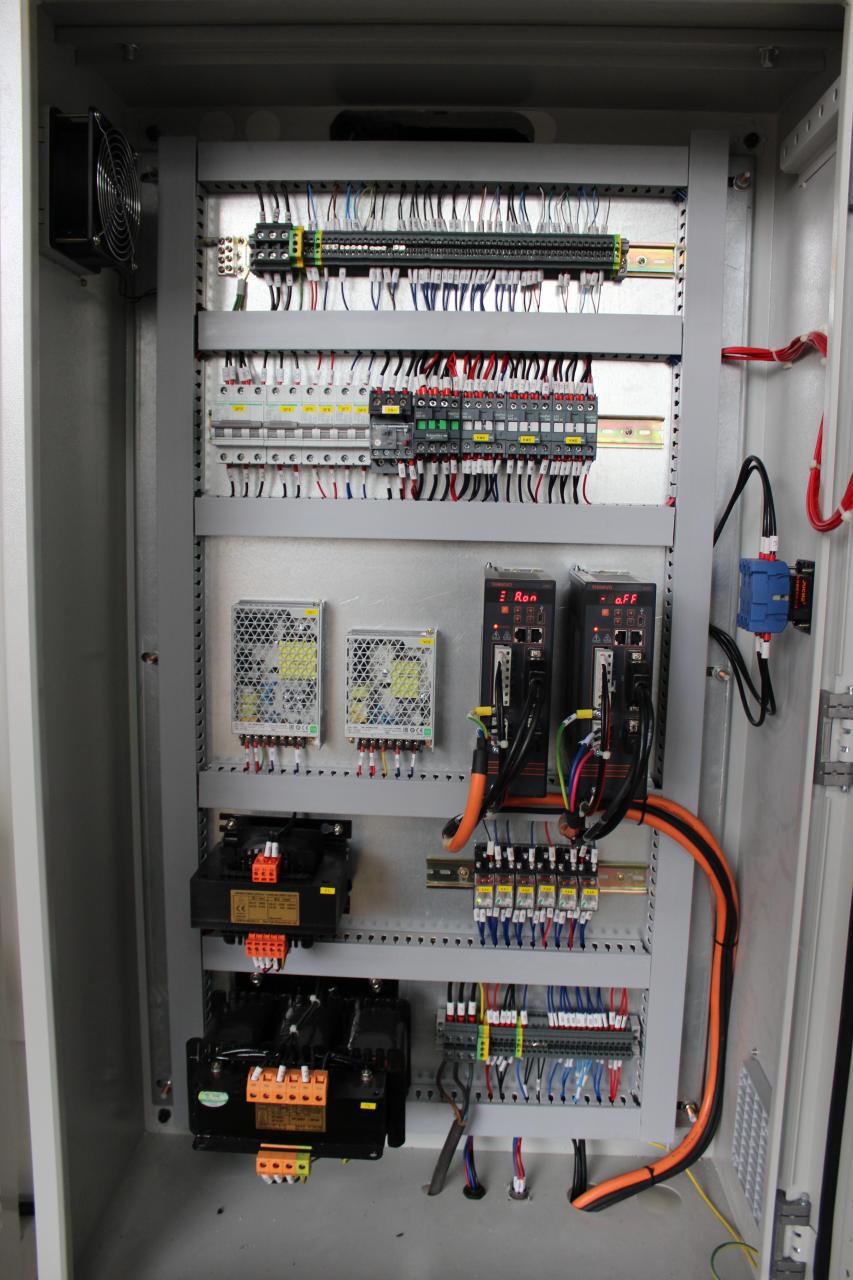

Electric Box(Siemens,Schneider)
| Bending Capability | 80/3200 | 100/3200 | 100/4000 | 125/3200 | 125/4000 | 160/3200 | 160/4000 |
| Nominal Force(KN) | 800 | 1000 | 1000 | 1250 | 1250 | 1600 | 1600 |
| Worktable Length(mm) | 3200 | 3200 | 4000 | 3200 | 4000 | 3200 | 4000 |
| Column Distance(mm) | 2490 | 2490 | 3000 | 2490 | 3000 | 2490 | 3000 |
| Throat Depth(mm) | 250 | 320 | 320 | 320 | 320 | 320 | 320 |
| Ram Stroke(mm) | 120 | 120 | 120 | 120 | 120 | 180 | 180 |
| Main Motor Power(KW) | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 11 | 11 |
| Bending Capability | 160/6000 | 200/3200 | 200/4000 | 200/6000 | 250/3200 | 250/4000 | 250/6000 |
| Nominal Force(KN) | 1600 | 2000 | 2000 | 2000 | 2500 | 2500 | 2500 |
| Worktable Length(mm) | 6000 | 3200 | 4000 | 6000 | 3200 | 4000 | 6000 |
| Column Distance(mm) | 4100 | 2490 | 3000 | 4600 | 2500 | 3000 | 4600 |
| Throat Depth(mm) | 320 | 320 | 320 | 320 | 350 | 350 | 350 |
| Ram Stroke(mm) | 200 | 200 | 200 | 200 | 250 | 250 | 200 |
| Main Motor Power(KW) | 11 | 11 | 11 | 15 | 15 | 15 | 15 |
| Bending Capability | 300/3200 | 300/4000 | 300/6000 | 400/4000 | 400/5000 | 400/6000 | 500/4000 |
| Nominal Force(KN) | 3000 | 3000 | 3000 | 4000 | 4000 | 4000 | 5000 |
| Worktable Length(mm) | 3200 | 4000 | 6000 | 4000 | 5000 | 6000 | 4000 |
| Column Distance(mm) | 2500 | 3000 | 4600 | 3100 | 3600 | 4600 | 3100 |
| Throat Depth(mm) | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
| Ram Stroke(mm) | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| Main Motor Power(KW) | 18.5 | 18.5 | 18.5 | 22 | 22 | 30 | 30 |
| Bending Capability | 500/6000 | 500/8000 | 600/6000 | 600/8000 | 800/6000 | 800/8000 | 1000/6000 |
| Nominal Force(KN) | 5000 | 5000 | 6000 | 6000 | 8000 | 8000 | 10000 |
| Worktable Length(mm) | 6000 | 8000 | 6000 | 8000 | 6000 | 8000 | 6000 |
| Column Distance(mm) | 4600 | 6100 | 4600 | 6100 | 4600 | 6100 | 4600 |
| Throat Depth(mm) | 350 | 350 | 400 | 400 | 400 | 400 | 500 |
| Ram Stroke(mm) | 250 | 300 | 300 | 300 | 300 | 300 | 400 |
| Main Motor Power(KW) | 30 | 30 | 37 | 45 | 45 | 55 | 55 |
Product Configuration

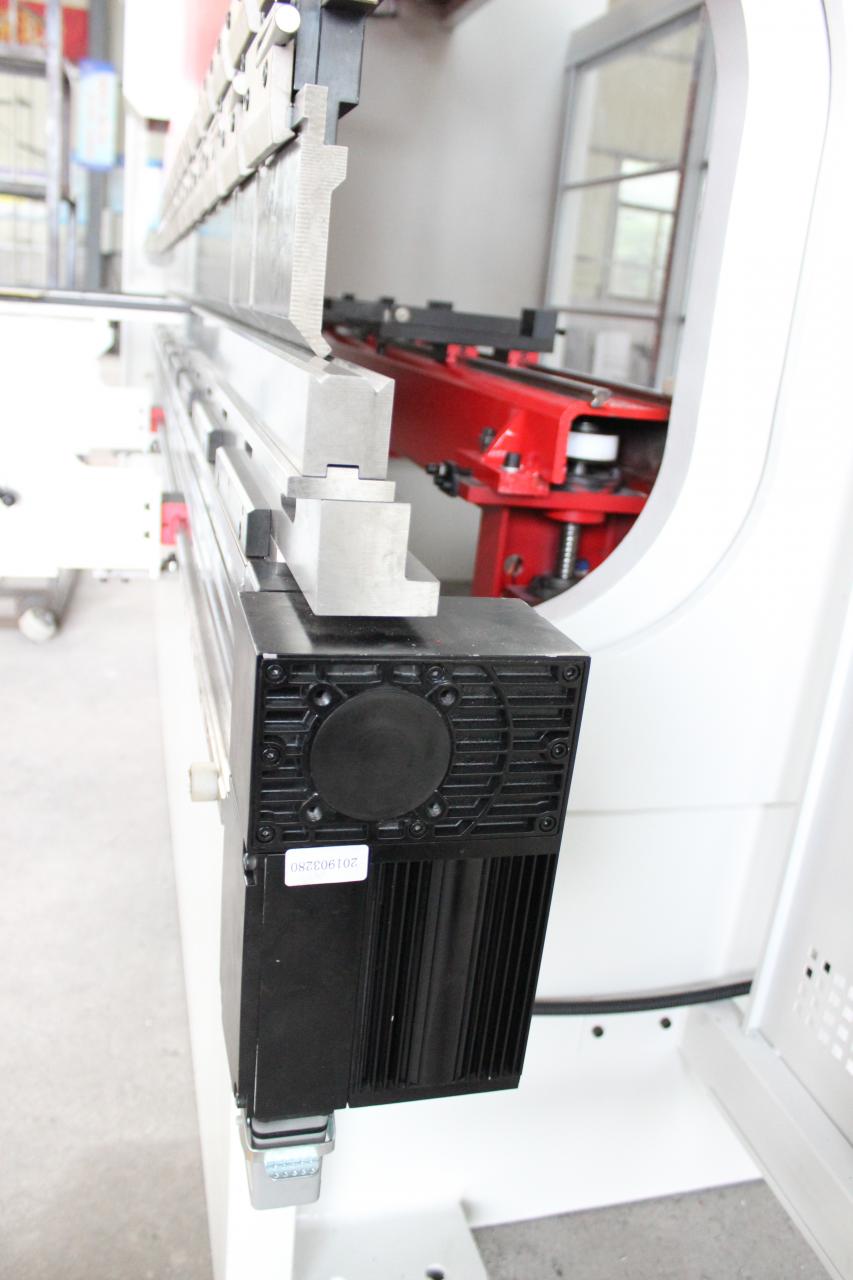

Mechanical compensation

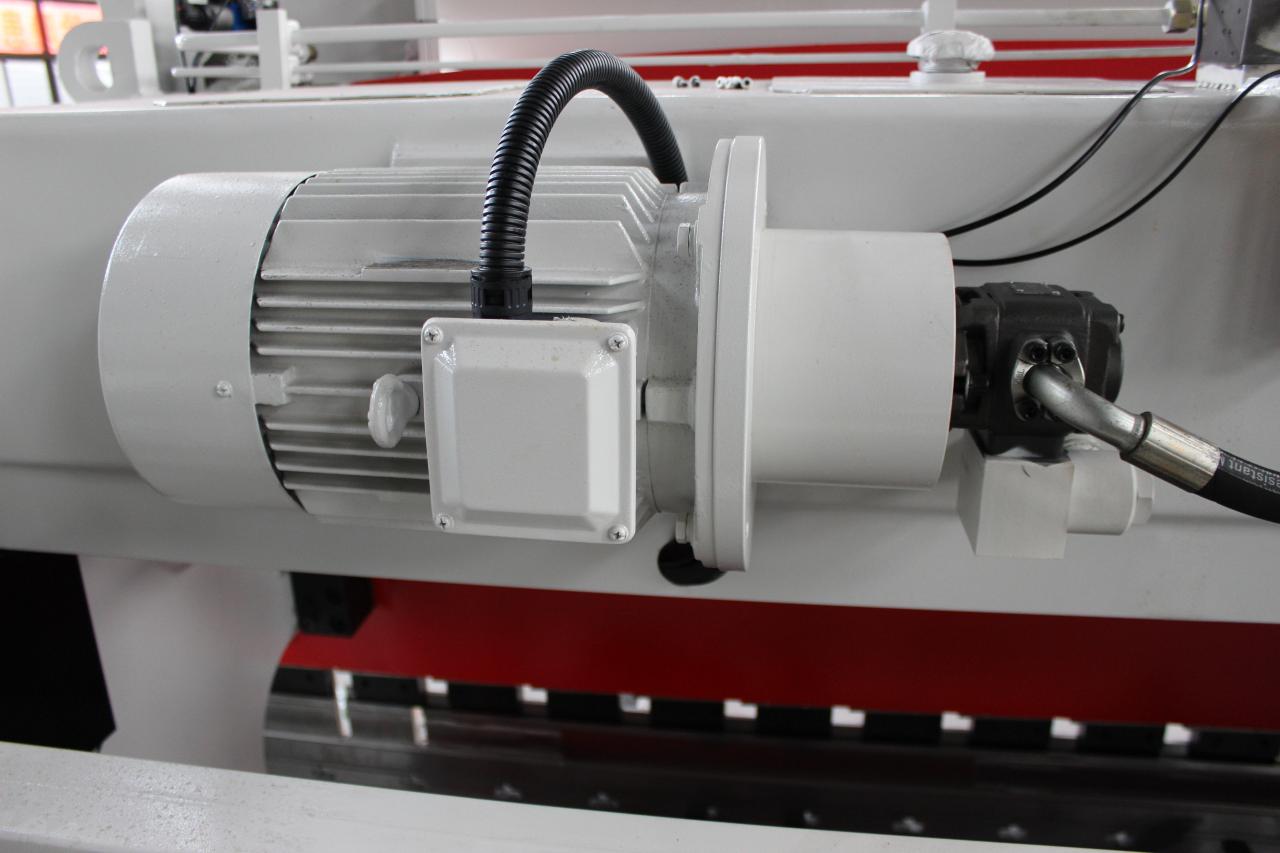

Siemens Motor and sunny pump

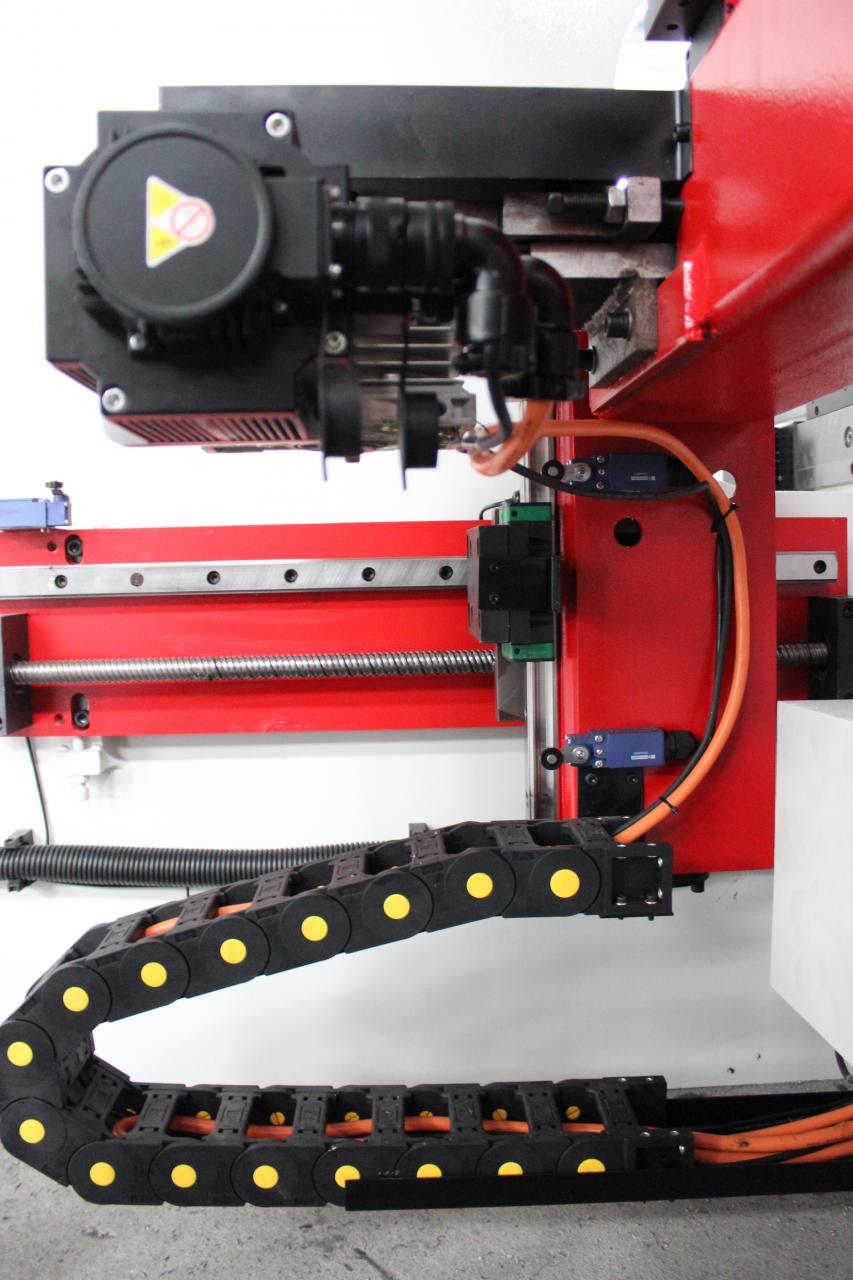

Backguage
FAQ
1. Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis/Conformance; Insurance; Origin, and other export documents where required.
2. What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment.The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
3. What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.
4. What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction.
5. Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6. How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
Details
- Slider Stroke (mm): 140 mm
- Automatic Level: Semi-automatic
- Throat Depth (mm): 320 mm
- Machine Type: bending machine
- Length of Working Table (mm): Other
- Width of Working Table (mm): 100 mm
- Dimension: 3300 * 1000 * 1000
- Condition: New
- Material / Metal Processed: Carbon steel, Aluminum
- Automation: Automatic
- Extra Services: Buffing / Polishing
- Year: N/A
- Weight (KG): 9000
- Motor Power (kw): 7.5 kw
- Key Selling Points: Automatic
- Warranty: 1 Year
- Applicable Industries: Manufacturing Plant
- Showroom Location: None
- Marketing Type: Other
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Bearing, Motor, Pump, Gear, Engine, Gearbox
- Power: Hydraulic
- Raw Material: Sheet / Plate Rolling
- Color: Customized
- Type: CNC Hydraulic
- Material: Stainless Steel
- Usage: Metal Sheet Rolling Cutting Bending
- Voltage: 220V/380V
- Product name: YALIAN/USKY cnc press brake ,presse plieuse,metal press brake machine
- Application: Stainless Plate Bending
- keywords: metal bending machinery
- Certification: ISO 9001:2000
- After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
- After Warranty Service: Video technical support, No service, Online support, Spare parts, Field maintenance and repair service
