Fiber Laser Plate And Tube Integrated Cutting Machine

Product features

Advantages of machine:

1. Multi-function: can cut both metal plates and metal tubes.
2. Saving cost: one set of Integrated machine instead of purchasing two sets
3. saving space by more than 50%, and bringing higher productivity.

Applicable industry :

Used in Sheet metal processing, Automobile manufacturing, Fitness equipment, Chassis cabinets, Advertising metal characters, Stainless steel kitchenware, Environmentally household appliances and other mechanical equipment.

Cut materials:

Can cut a variety of metal plates and pipes (with tube cutting device), mainly suitable for stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass plate, aluminum plate, manganese steel, various alloy plates, rare Fast cutting of metal and other materials.

Application:

1. Sheet metal fabrication

2. Electrical cabinet

3. Kitchenware equipment

4. Elevator

5. Automotive Parts

6. Lighting lamps

7. Metal carfts & decoration

8. Hardware tools

9. Advertising

10. Fitness equpment

11. Furnitures

12. Agricultural and forestry machinery

13. Air conditioner

Technical parameter

Name	Fiber Laser Plate and Tube Integrated Cutting Machine
Model	YD-3015
Laser type	Fiber Laser
Laser Power	1000W
Work size	3000mm * 1500mm
Max. Move speed	0-80000mm/min
Cutting Speed	0-40000mm/min
Max acceleration speed	1G
Location Precision	≦±±0.02mm
Maximum machining depth	Stainless Steel:5mm Carbon Steel:10mm
Transmitting system	Double rack gear drive
Graphics Format Support	AL, DXF, PLT, BMP, DST
Power Supply	380V 50Hz/60Hz/60A
Work table	Sawtooth Platfprm
Operating Environment	Temperature 0-45℃,Humidity:5-95%
Dimensions	444047901860mm
Total machine power:	<10KW
Weight	3000kg
Laser	Rayco / IPG 500W-2000W
Rotary axis	3m / 6m pneumatic chuck
Gear transmission	rotation axis servo is Yaskawa servo
Cutting head	Switzerland Raytools
Servo motor	Delta
Pneumatic device	Japan SMC solenoid valve Japan SMC / Taiwan Yadeke
Electronic element device	Schneider
Reducer	Japan Xinbao Reducer
Rack	APEX dual drive
Control system	CYPCUT
Shanghai Baichu Chiller / Air Conditioner Tongfei /	Standard for 1000 and above power

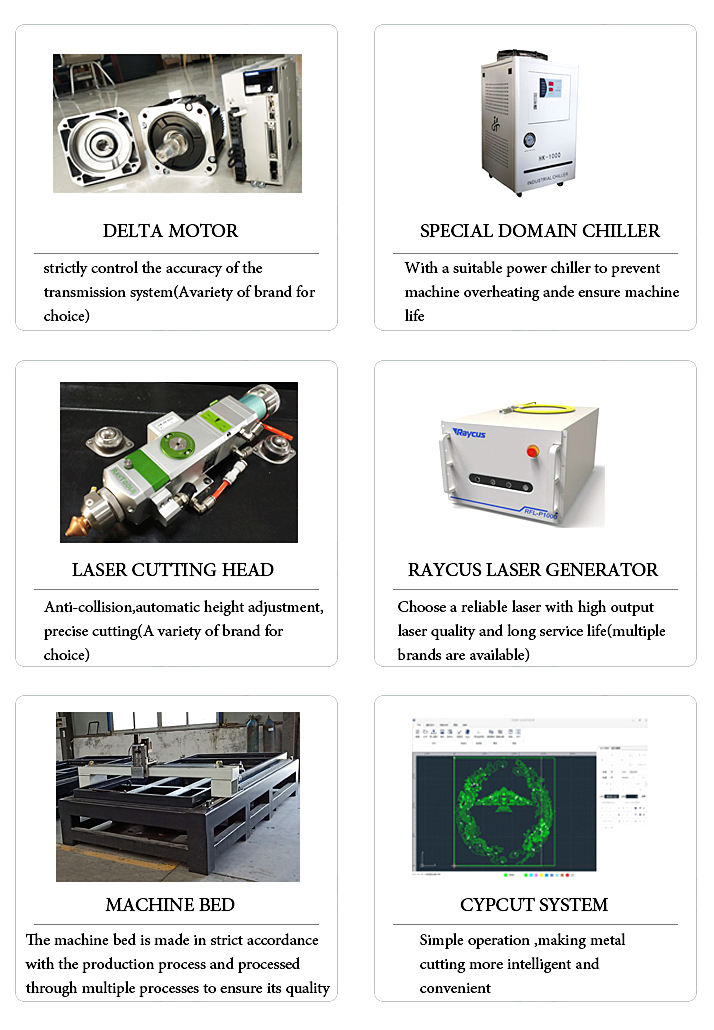

Detailed Images

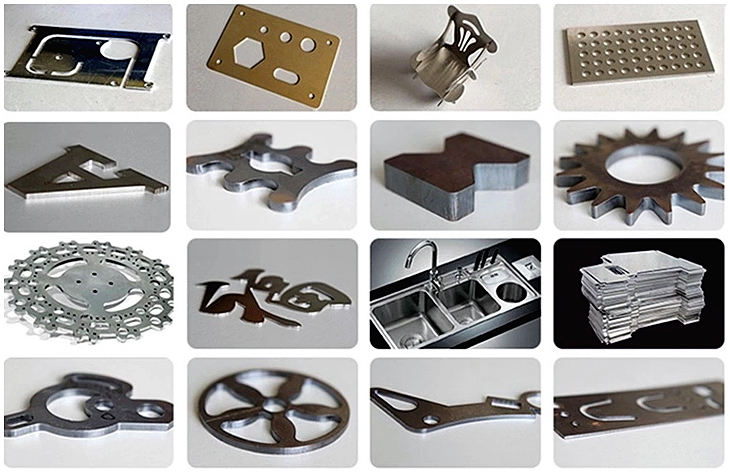

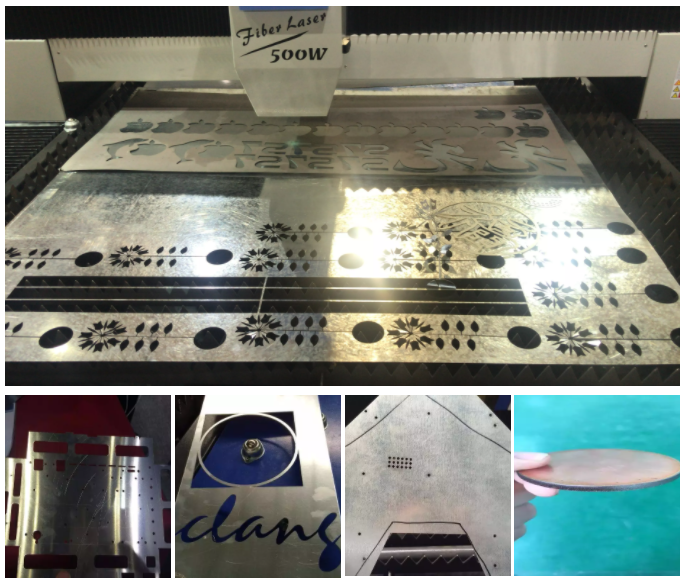

Samples

Our advantage:

1. We have our own machining workshop. All machines frame, gantry and Z axis are made by our own workshop. In this way, we can ensure our good quality and lower the cost .

2. We can design and produce according to customer’s requirements. (including machine structure , type , color , spare parts and so on )

3. We can make OEM. ( with customers’ own logo on the machine )

4. We have rich experience for exporting, we will prepare well all customs documents and CO for making customs successfully.

Details

Application: LASER CUTTING
Applicable Material: Acrylic, Glass, Leather, MDF, Metal, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Crystal
Condition: New
Laser Type: Fiber Laser
Cutting Area: 1500mm*3000mm
Cutting Speed: 40000
Graphic Format Supported: AI, PLT, BMP, Dst, DXP
Cutting Thickness: 10mm
CNC or Not: Yes
Cooling Mode: WATER COOLING
Control Software: CYPCUT
Laser Source Brand: Raycham
Guiderail Brand: HIWIN
Weight (KG): 3000 KG
Key Selling Points: High Safety Level
Warranty: 1 Year
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Other
Mode of Operation: Pulsed
Configuration: 4-axis
Products handled: Sheet Metal and Tube
Feature: Water-cooled
Max. Move speed: 0-80000mm/min
Location Precision: 0.01-0.02mm
Maximum machining depth: Stainless Steel:5mm Carbon Steel:10mm
Power Supply: 380V 50Hz/60Hz/60A
Operating Environment: Temperature 0-45℃,Humidity:5-95%
Dimensions: 4440*4790*1860mm
Control system: CYPCUT
