Hydraulic Press Brake 3 Meter 160 Ton High Quality Cnc Wc67y-Bending Machine

Product Description

Hydraulic press brake cnc bending machine with precision backgauge, servo motor,safety protection, fast clamp, ball screw and linear guide. All from Germany, USA, Holland, Italy Brand parts. The bend thickness and length can be manufactured customized.

High precision back gauge

Cuttable graphics

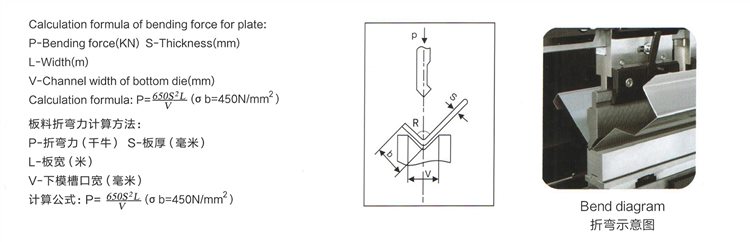

Calculation method of sheet bending force

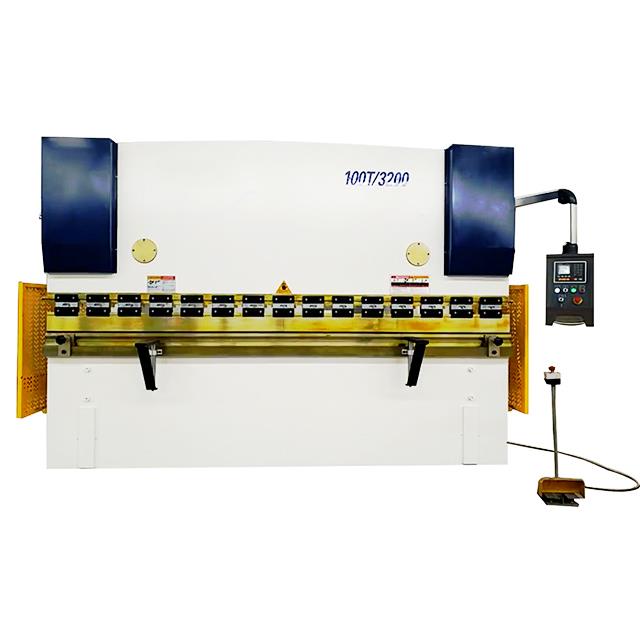

WC67Y/K press brake

• Servo motor control
• Store up to 100 programs
• Up to 25 bends per program
• Tool library & Tool program
• Automatic Bending angle program
• Higer ram and backgahge speed
• Higer bending and positioning accuracy

WC67Y/K Features

• The whole welded machine structure achieves high rigidity; the machine is designed by ANSYS software which can ensure the reliability and precision of the press brake.
• The motors for backgauge are controlled by inverter,which can achieve high positioning accuracy of the backguage and ram by changing the frequency and voltage of motor.

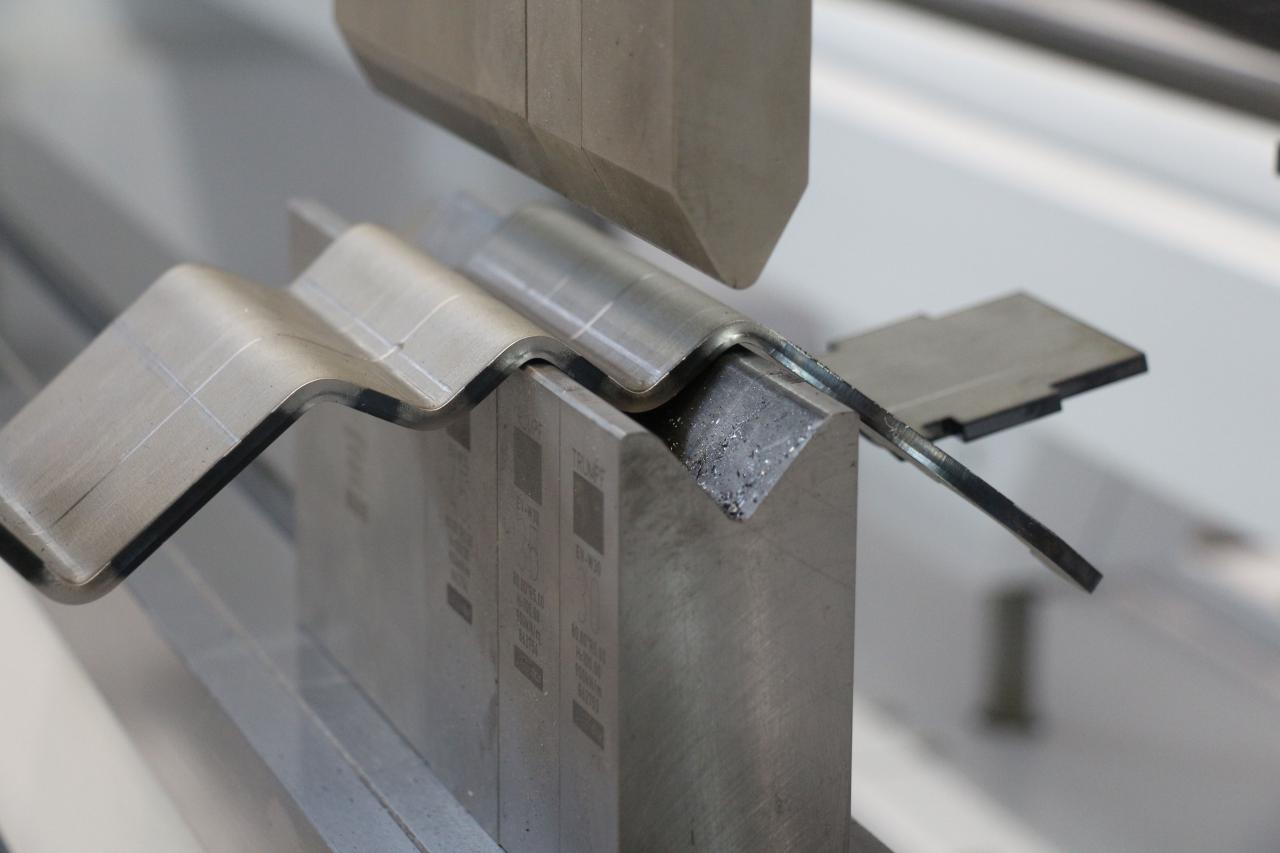

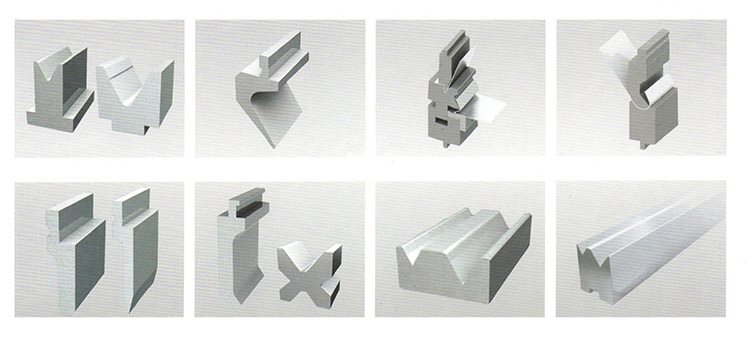

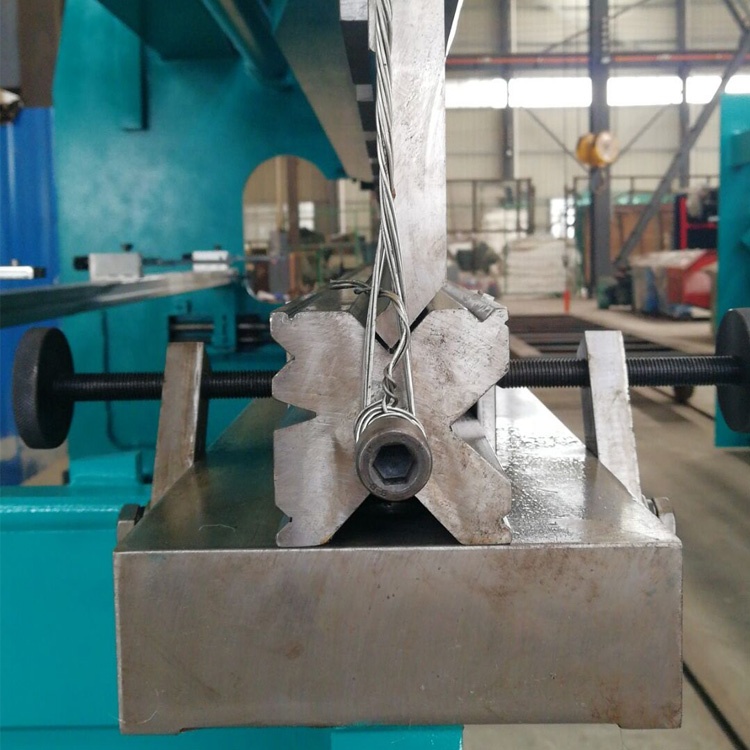

• Different punch and dies are optional according to customer' s requirements,such as Multi-V die,radius die,gooseneck die,etc.One set of complete standard punch and die will be included for free.
• X axis(Backgahge) and Y axis(Ram stroke or cylinder stroke) can be programmed by E21 system controller,which can store up to 40 groups of programs.Side and rear metal safety guard meets European safety standard.
• Hydraulic overload can be protected by overflow valve,System pressure can be regulated by pressure switch easily.
• Foot switch with emergency button can stop the machine immediately when accident happens.

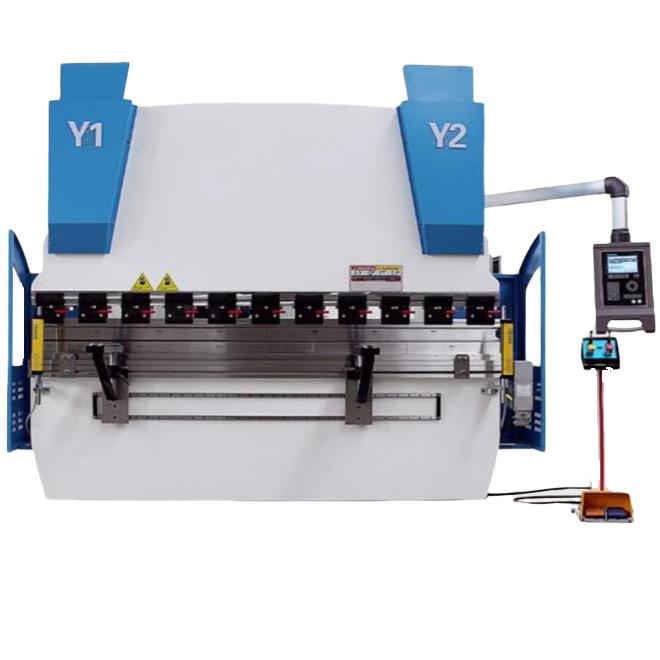

WE67K press brake

WE67K Series Electro-hydraulic Servo Press Brake CNC Bending Machine adopts integral welding and integral processing structure.

The main components of the body are analyzed with ANSYS finite element analysis software, which ensures the reliability and overall accuracy of the machine tool.

The main oil cylinder on both sides breaks through the stroke control mode of the traditional mechanical baffle type bending machine and adopts the closed-loop control mode consisting of the electro-hydraulic servo valve imported from Germany and the grating ruler imported from Germany.

WE67YK Features

• Advanced Configuration,high precision and high eficiency CNC hydraulic press brake
• Holistic welding structure
• Electro-hydraulic servo system,the closed-loop cotrol the slider synchronization
• Double crowning mechanism

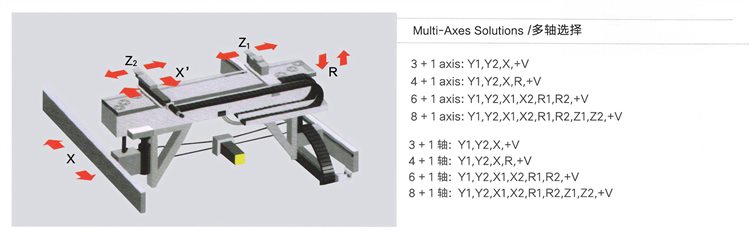

• Standard configuration with 3 1axes:
  Y1(upward-downward of left cylinder)
  Y2(upward-downward of right cylinder)
  X(forward-backward of backguge)
  V(hydraulic crowning)
• Backgauge System Optional:
  4axes Backgauge(X. R,Z1. Z2)
  5axes Backgauge(X. R. Z1. Z2,X')
  6axes Backgauge(X1. X2. R1. R2,Z1. Z2)

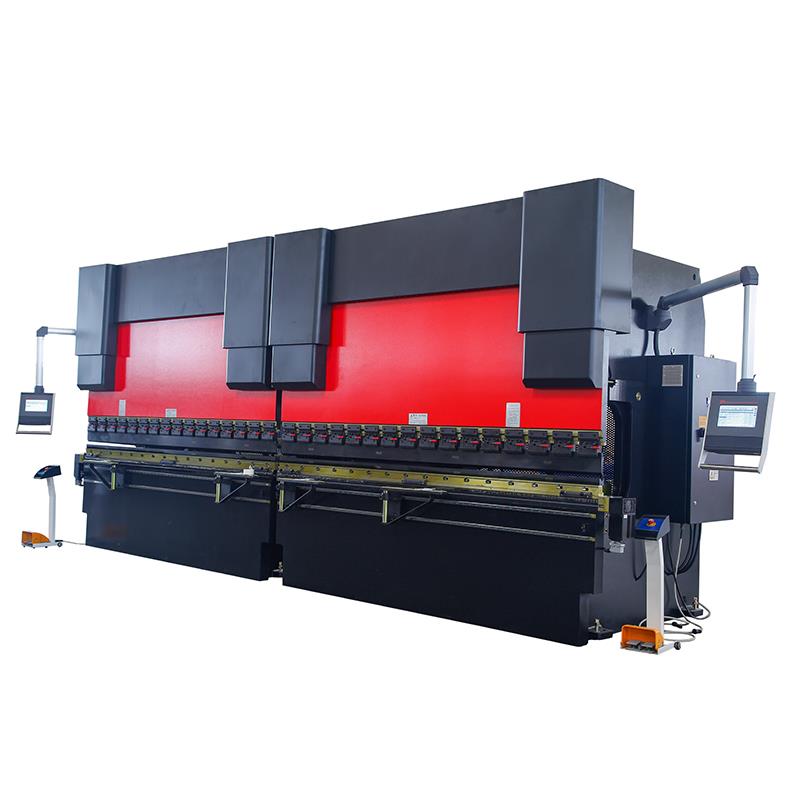

Tandem Press Brake

• Two (WC67Y/WE67K) mainframes were selected to configure the dual-machine linkage synchronous equipment.
• The double-machine combined bending machine can process super long workpiece, especially suitable for city construction, highway light pole, electric pole and so on.
• The two types of machine tools can also be used separately to improve production efficiency and are equipped with a deflection compensation mechanism.
• The synchronous mechanism adopts mechanical liquid servo and mechanical block.
• This machine was combined by two sets of 400 tons press brake.
• Tandem control achieve synchronous working. Single machine was combined by working table , right and left wall board.
• Due to the transportation, we adopt assembled structure. The rack has strong rigidity, two cylinders were installed on right and left wall board, hydraulic system was under the action of electrical system, drive ram working down. On the ram, there are upper dies, when upper dies and lower dies touched, system will raise pressure and forming the workpieces.
• With different dies and under different bending types, it can get different shapes of workpieces. The quality is stable and
  reliable.

FAQ

Q1. What is our main product ?

A1: Our company is a professional sheet metal processing machinery by RAYMAX. Concentrate on four column press machine, embossing door press machine, bending machine, shearing machine, cnc plasma cutting machine, rolling machine, punching machine, hydraulic ironworker, welding equipment. All these machine will be solved for the tank, pan, trolley, ect.

Q2. When can I get the price ?

A2:We usually offer the quotation within 8hours, For urgent offer, please contact with us for special.

Q3. What is the Trade Term?

A3: We accept Ex-work factory , FOB Dalian, CNF or CIF, as your requirement.

Q4. How long is our Production leading time?

A4: It depends on type of equipment.
We often deliver the goods within 35days.

Q5. What is the Payment term?

A5: By T/T before shipment or By L/C at sight.

Q6. During shipping, if there is a damage to products, how do you get replacement?

A6: Firstly, we should investigate the reason cause the damage. At the same time, we will claim for the insurance by ourselves or assist the buyer.
Secondly we will send the replacement to the buyer. The responsible person for above damage will take charge of the cost of the replacement.

Q7. What are your terms of packing?

A7: Packing: export worthy package suitable for container transportation.
Wooden case, iron pallet, plastic film ect.

Q8. Do you test all your goods before delivery?

A8: Yes, we have 100% test before delivery.

Q9: Where is your factory located?

A9: Our factory is located in Dalian, Liaoning province.

Q10: What is your warranty?

A10: Warranty: 24 months after commercial running or 18months from the date of shipment, subject to the earlier expiry.

Q11: Can you arrange thirty party pre-shipment inspection?

A11: Pre-shipment inspection: Supplier’s pre-shipment inspection is Final; pre-shipment inspection by third Party on buyers cost.

Q12: Can we do our OEM logo?

A12:Yes, for the products with drawing supplied by you, we of course apply your logo ",

Details

• Slider Stroke (mm): 320 mm
• Automatic Level: Semi-automatic
• Throat Depth (mm): 450 mm
• Machine Type: Torsion Bar, Press Brake
• Length of Working Table (mm): 3200
• Width of Working Table (mm): 400 mm
• Dimension: 3260*3100*3800mm
• Condition: New
• Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum
• Automation: Automatic
• Extra Services: Machining
• Weight (KG): 44000
• Motor Power (kw): 37 kw
• Key Selling Points: Automatic
• Warranty: 1 Year
• Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Construction works , Advertising Company
• Showroom Location: United States, Brazil, Peru, Thailand, Argentina, Chile, Colombia, Algeria
• Marketing Type: New Product 2020
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 1 Year
• Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Other, Gearbox
• Power: Hydraulic
• Raw Material: Sheet / Plate Rolling
• After-sales Service Provided: Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
• Name: press brake machine price
• CONTROLLER: ESTUN E21s
• Control: AC motors frequency inverter
• Throat Depth: 450mm
• Type: Hydraulic Bending Tools
• Application: Stainless Plate Bending
• Certification: ce
• After Warranty Service: Video technical support, Online support
